Line 6 XD-V55 Digital Wireless System with Handheld Transmitter (Discontinued)

By Line 6

Line 6 XD-V55 Digital Wireless System with Handheld Transmitter (Discontinued)

Name: Line 6 XD-V55 Digital Wireless System with Handheld Transmitter (Discontinued)
Brand: Line 6
SKU: LINE6-991230115
Price: 449.99 USD
Availability: OutOfStock

Write a Review

Part #:

122086

Model #:

XD-V55

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Line 6 XD-V55 digital wireless system with handheld transmitter set is a new standard in professional wireless systems for vocalists, active performers and spoken word presenters. With exclusive, onboard modeling technologies.

Description

The XD-V55 handheld system lets you choose from four superb microphone models, so you can be confident you’ve got the right microphone sound to match your voice—and your performance. Microphone models are based on* the Shure® SM58®, Shure® SM57, Sennheiser® e® 835 and a custom-voiced Line 6 mic model.

All 12-channel XD-V55 system features patented, fourth generation Line 6 digital wireless technology, which enables full-range 10Hz–20kHz (-2.5dB) frequency response, wide dynamic range up to 117dBA, and Digital Channel Lock (DCL™) technology that prevents reception of audio interference from other 2.4GHz devices and ensures signal integrity.

Ensuring peace of mind and the most reliable operation, XD-V55 system operate in the 2.4GHz ISM band, which is free from interference due to TV broadcasts, white space devices, cell phone towers and other transmitting devices. The systems are fully FCC compliant and operate license-free worldwide, from Hollywood to Tokyo.

Features

Accurate and precise vocal reproduction with full-range 10Hz–20kHz (-2.5dB) frequency response, up to 117dBA dynamic range, superior transient response, and 24-bit digital conversion.
2.4GHz band operation, free from interference due to TV broadcast, white space devices and cell phone towers.
License-free operation worldwide.
Patented, 4th-generation digital wireless technology surpasses analog wireless systems in reliability and sound quality.
Premium dynamic microphone capsule (XD-V55).
12 always-available channels.
300-foot (100-meter) extended range.
Bright LEDs on receiver show crucial audio, battery and RF status.
LCD screen on transmitter for selecting channels, battery status and more.
Signal encryption for maximum signal privacy and integrity.
Road-ready transmitter and receiver chassis.
FCC compliant; immune to the FCC Consumer Alert regarding wireless microphones.
Receiver Features:
Three 5-segment LEDs for monitoring RF strength, battery status, and audio levels at all times.
Robust aluminum chassis.
Dynamic Filter to combat unwanted environment noise.
2 BNC antenna inputs for antenna connection.

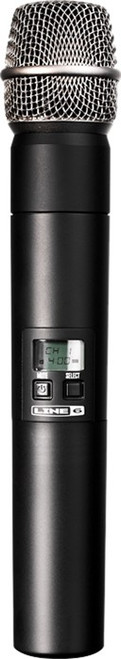

Handheld Transmitter Features:
Premium dynamic microphone capsule with cardioid polar pattern.
Robust metal body resistant to handling noise.
LCD display for selecting channels, battery status, microphone model and more.
Interchangeable microphone capsules – compatible with other industry-standard mic capsules.
Lock mode to prevent changes during performance.
Power and Mute for control over output.

Specifications

System
Frequency Band	2.4GHz ISM Band
Compatible Channels	12
Spatial Diversity with Digital Buffering	Yes
Frequency Diversity	Yes (2 Frequencies per channel)
Compander-Free Design	Yes
Frequency Response THD %	10 Hz (-0.5 dB) - 20kHz (-2.5 dB)0.03% typical
System Latency	< 2.9 ms (audio input to output)
Operating Temp Range	0 – 50 degrees C
Receiver
RF Performance Monitoring	Yes (via LCD screen and LED)
RF Signal Strength Indicators	5-Segment LED
Audio Level Meter (on Receiver)	5-Segment LED
Dynamic Filter	Yes
Squelch & Pad adjustments	None required
Number of Receiver Antennas	2
Receiver Format	1/2 RU (with included rack-mount kit)
Receiver Power Requirements	9Vdc 500mA
Output Impedance	XLR: 150 Ohms Balanced1/4”: 1 kOhm Unbalanced
Sensitivity	-95 dBm
Image Rejection	56 dB
Antenna Distribution	A and B
Antenna Impedance	50 Ohms
Transmitters
Transmitter RF Output Power	10 mW
Battery Life	8 hours
Mic Modeling	Yes (4 selectable models)
Batteries	2 x AA Alkaline
Battery Display (on Transmitter)	LCD Screen
Dynamic Range	>113 dB
