Shure PGXD2/SM86 Digital Wireless Handheld Microphone Transmitter (Discontinued)

By Shure

Shure PGXD2/SM86 Digital Wireless Handheld Microphone Transmitter (Discontinued)

Write a Review
Part #:
PGXD2/SM86=-X8
Model #:
PGXD2/SM86
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL
The Shure PGXD2/SM86 is a digital wireless handheld microphone transmitter. Includes PGXD2 handheld transmitter and SM86 handheld microphones.

Description

With an interchangeable SM86 microphone cartridge, the PGXD2/SM86 transmits wireless audio with pure digital clarity and rock-solid reliability. Compatible with Shure microphones trusted by musicians for decades, including the legendary SM58, the PGXD2 transmits wireless audio with pure digital clarity and rock-solid reliability.

The Shure SM86 is a unidirectional (cardioid) condenser vocal microphone for professional use in live performance. An extremely rugged microphone, the SM86 withstands the rigors of touring while delivering a clear, studio-quality sound.

Features

PGXD2 Features:

  • Power, mute, and battery status LED
  • Up to 9 hours of continuous use from 2 AA batteries
  • 200 ft (60 m) operating range
  • 10 dB of adjustable gain
  • Lockable interface prevents accidental setting changes
  • Rugged construction for reliable performance show after show

SM86 features:

  • Condenser cartridge for studio quality sound
  • Tailored frequency response for a clear reproduction of vocals
  • Rugged construction withstands the rigors of touring sound
  • Cardioid polar pattern minimizes unwanted background noise
  • Excellent choice for stage monitors and personal monitors
  • Built-in three-point shock mount minimizes handling noise
  • Two-stage "pop" filter reduces wind and breath noise

Specifications
Audio Input Level +5 dBV maximum at -10 dB gain position, –5 dBV maximum at 0 dB gain position
Gain Adjustment Range 10 dB
RF Output Level 10 mW maximum (dependent on applicable country regulations)
Housing Molded PC/ABS handle and battery cup
Power 2 AA size batteries
Battery Life Up to 9 hours
Dimensions 254 mm x 51 mm (10 x 2 in.)
Weight 290 grams (10.2 oz.) without batteries
Transducer Type Condenser (electret bias)
Frequency Response 50 to 18,000 Hz
Polar Pattern Cardioid
Output Impedance 150 Ohms at 1 kHz
Sensitivity (at 1,000 Hz) Open Circuit Voltage: -50 dBV/Pa (3.15 mV)
Output Clipping Level 1000 Ohm Load at 1,000 Hz: +3 dBV (1.41 V)
Maximum SPL (at 1,000 Hz) 1000 ohm load (1% THD): 147 dB
Self-Noise 23 dB typical, A-weighted
Dynamic Range (1000 ohms) 124 dB (maximum SPL to A-weighted noise level
Signal-to-Noise Ratio 71 dB at 94 dB SPL (IEC 651)
Power Phantom Supply Requirement: 11 to 52 Vdc, positive at both pins 2 and 3
Connector Three-pin (XLR) professional audio
Net Weight 0.61 lbs (278 g)

Related Products

Sold Out
Shure PGXD2/PG58 Digital Wireless Handheld Microphone Transmitter (Discontinued)

Shure PGXD2/PG58 Digital Wireless Handheld Microphone Transmitter (Discontinued)

The PGXD2/PG58 is Digital Wireless Handheld Microphone Transmitter. Includes PGXD2 Handheld Transmitter and PG58 Handheld Microphones. Compatible with Shure microphones trusted by musicians for...
MSRP: $239.00
$189.00

Usually arrives in 5-9 business days.

MSRP: $239.00
$189.00
Sold Out

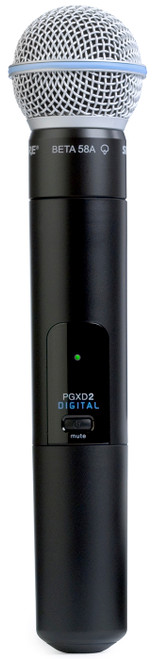

Shure PGXD2/BETA58 Digital Wireless Handheld Microphone Transmitter (Discontinued)
