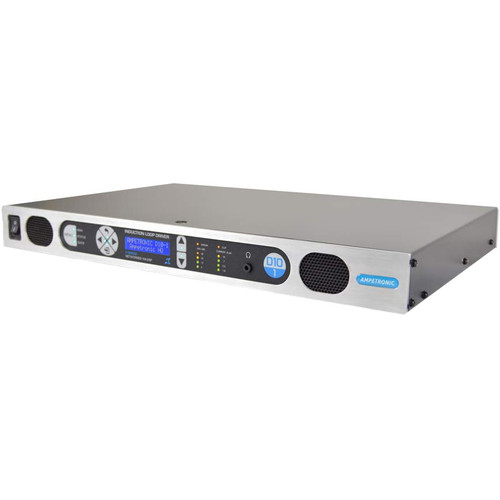

Listen Tech D10-1 D Series 10 Amp Single Loop Driver (Discontinued)

Listen Tech D10-1 D Series 10 Amp Single Loop Driver (Discontinued)

Name: Listen Tech D10-1 D Series 10 Amp Single Loop Driver (Discontinued)
Brand: Listen Technologies
SKU: LT-D10-1
Price: 2461 USD
Availability: OutOfStock

Write a Review

Part #:

D10-1

Model #:

D10-1

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Listen Tech D10-1 D Series Single Loop Driver is a 10 Amp, single-output class 'D' driver; meaning a 60%+ increase in energy efficiency over existing solutions.

Description

The driver features capacitive touch front panels with intuitive menus, built-in test signals, and are fully networkable with a Wi-Fi accessible standard browser-based control panel for remote set-up, monitoring, and email alerts.

The D10-1 features a 10 Amp loop output plus ample voltage headroom, making it the most flexible solution on the market, suitable for a huge range of applications. The added power of the D10-1 provides a solution for installations in environments containing very high levels of metal, previously not possible without the use of combiners.

In another first for high-power Class D Induction Loop drivers, installation can be performed with total confidence, as unique multi-stage filtering ensures compatibility with both other system equipment and global EMC regulations.

Features

Drives 1 output channels at 10ARMS
Networkable with remote browser interface
Digital display and intuitive 'touch' menu system
3 modes; Main, Status and Quick
Highly energy efficient Class-D amplifier with low heat dissipation
Up to 1,450m2 Perimeter Loops area coverage
Compact 1U rack-mount unit with internal transformer for simple rack installation
Optimized for speech frequencies with unmatched intelligibility and capable of high-quality musical reproduction
AGC and Dual Slope MLC
Active status monitoring and remote fault reporting via email
Data compliant with: IEC 62489-1 Standard

Specifications

Dimensions (H x W x D)	1.74" (44 mm) x 16.93" (430 mm) x 11.42" (290 mm)
Shipping Weight	15.2 lbs (6.89 kg)

DOCUMENTS

In The Box

(1) D10-1 D Series Loop Driver (10 Amps x 1)
(1) 1U 19" Rack Mount (Brackets Included)
(1) Handbook and Installation Instructions
(1) T-Coil Loop System Present Sign (Deaf Logo)
(1) Neutrik NL4 Output Connector
(1) Region-Specific IEC Power Cable
(1) Status and DC Connectors
