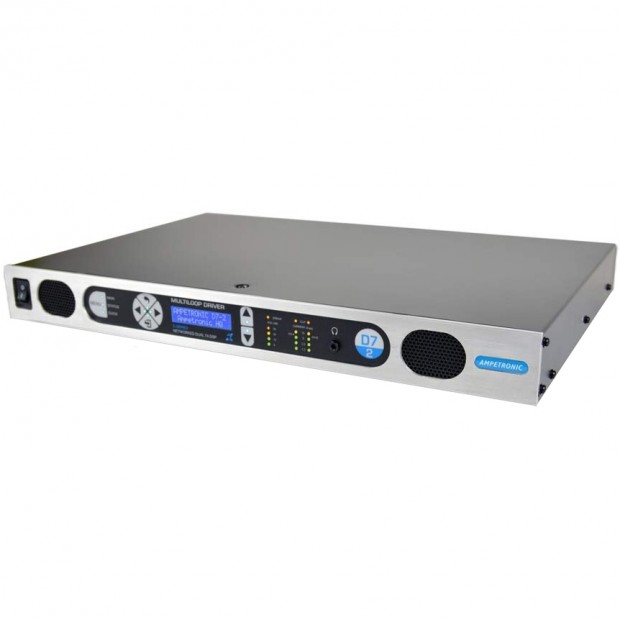

Listen Tech D7-2 D Series 7 Amp MultiLoop Driver (Discontinued)

The D Series range consists of 4 class 'D' drivers (3 dual loop output and 1 single output models); meaning a 60%+ increase in energy efficiency over existing solutions. Drivers feature capacitive touch front panels with intuitive menus, built-in test signals, and are fully networkable with a Wi-Fi accessible standard browser-based control panel for remote set-up, monitoring, and email alerts.

The D7-2 features 7 Amps per loop output respectively plus ample voltage headroom, making it the most flexible solution on the market, suitable for a huge range of applications.

In another first for high-power Class D Induction Loop drivers, installation can be performed with total confidence, as unique multi-stage filtering ensures compatibility with both other system equipment and global EMC regulations. The D Series also boasts Dual slope Metal Loss Control that caters for a wide range of metal loss frequency characteristics.

• Single or dual output options. Dual outputs featuring accurate and stable 90° phase shift
• Networkable with remote browser interface
• Digital display and intuitive 'touch' menu system - 3 modes; Main, Status and Quick
• Highly energy efficient Class-D amplifiers with low heat dissipation
• Up to 2 x 650m2 Perimeter Loops area coverage
• Up to 3,300m2 MultiLoop™ Low Loss area coverage
• Compact 1U rack-mount unit with internal transformer for simple rack installation
• Optimized for speech frequencies with unmatched intelligibility and capable of high-quality musical reproduction
• AGC and Dual Slope MLC
• Active status monitoring and remote fault reporting via email
• Data compliant with: IEC 62489-1 Standard

Spec Sheet

Manual

• (1) D7-2 D Series MultiLoop™ Driver (7 Amps x 2)
• (1) 1U 19" Rack Mount (brackets included)
• (1) Handbook and installation instructions
• (1) T-Coil Loop System present Sign (deaf logo)
• (2) Neutrik NL4 output connectors for each output
• (1) Region-specific IEC power cable
• (1) Status and DC Connectors
