Listen Tech LS-47-216 Listen Premiere Level I Stationary RF System (216 MHz)

Get your smaller venue started with assistive listening technology right away by installing the LS-47 Premiere Level I Stationary RF System. Complete with the 216 MHz version of the LR-400 Digital Display Receivers, the LS-47 provides listeners with a compact, convenient receiver that includes channel selection, battery level, and signal strength information shown right on the device screen.

The included LT-800-216 Stationary RF receiver and LA-102 telescoping provide excellent reception and signal clarity at a range of up to 228.6 m (750 ft.). Additionally, ear speakers, neck loops, alkaline batteries, and more are included to make getting started with assistive listening simple and fast.

Features

Features

Stationary transmitter and four (4) digital display receivers for the 216 MHz band included

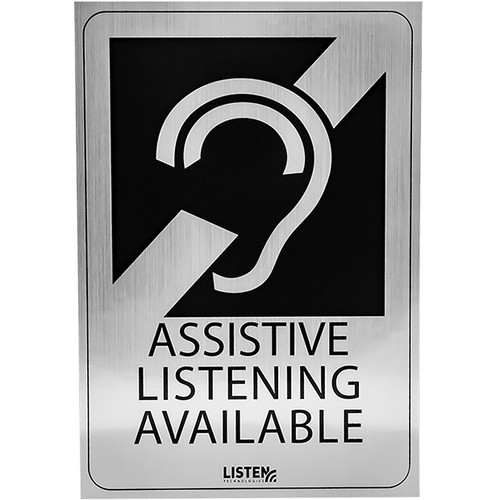

Complete with signage, ear speakers, and more
Offers 57 digital channels to choose from
Digitally tuned receivers ensure reliable signal

Specification

LT-800-072-01
Frequency Response	50Hz - 15kHz (±3dB)
Signal-to-Noise Ratio	SQ enabled 70dB, SQ disabled 50dB
Audio Inputs	(1) Female XLR or 1/4 in combo connector, balanced, 0 / -55dBu (line/mic) nominal input level adjustable, -30 / +21dBu (line/mic) maximum input level, impedance 20k / 1k ohm (line/mic), phantom power +12 VDC (2) phono connectors, unbalanced, -10 / +10dBu nominal input level adjustable, +30dBu maximum, impedance 100k ohm
Audio Outputs	Input 1 and input 2, mixed output (rear panel), (2) phono connectors, unbalanced, -10 dBu nominal output level, +15dBu maximum, impedance 10 ohm Headphone Output: (1) 3.5 mm (0.14 in.) stereo connector, unbalanced, adjustable output level, +3dBu maximum, impedance 10 ohm
Frequency Range	216.0125 - 216.9875MHz
Number of Channels	19 wide band, 38 narrow band
Frequency Accuracy	± .005% stability +32º to +122 ºF (0º to +50 ºC)
Transmitter Stability	50 PPM
Transmission Range	Up to 3,000 ft. (914 m)
Output Power	100 mW (max allowed by FCC)
Number of Simultaneous Transmitters	3
Power Supply	In line power supply, Listen part number LA-207 (Line cord is determined by the each Country's AC power standards) Input: 100 - 240 VAC, 50 - 60Hz, 0.4 A Output: 12 VDC, 1.3 A, 15.6W Connector: 0.02 in (5.0 mm) OD, 0.01 in. (2.5 mm) ID, barrel type
Dimensions (H x W x D)	1.75" (44.45 mm) x 8.5" (215.9 mm) x 9.13" (231.9 mm)
Weight	2.6 lbs (1.2 kg)
LR-400-216
Frequency Response	50Hz - 15kHz (±3dB)
Signal-to-Noise Ratio	SQ enabled 70dB, SQ disabled 50dB
Audio Output Jacks	3.5 mm (0.14 in.) connectors, unbalanced, 0dBu nominal output level, 16 mW maximum, impedance 32 ohm
Distortion	< 2% total harmonic distortion (THD) at 80% deviation
Frequency Range	216.0125 - 216.9875MHz
Number of Channels	19 wide band, 38 narrow band
Sensitivity	.6uV typical, 1 uV maximum for 12dB sinad
Frequency Accuracy	± .005% stability 32 to 122 ºF (0 to 50 ºC)
Power Supply	I/P 120 VAC; O/P 7.5 VDC 250 mA, drop in contact points for use with charging cases, power supply not included (LA-208) Connector: 0.09 in. (2.3 mm) OD by 0.7 mm ID, barrel type connector 7.5 VDC, center positive < 250 mA, drop in contact points for use with Listen charging cases
Battery Type	(2) AA batteries, alkaline or NiMH Life: 30 hours alkaline (LA-361), 15 hours NiMH rechargeable (LA-362) Charging Time: Fully automatic, 13 hours
Dimensions (H x W x D)	4.25" (107.95 mm) x 2.75" (69.85 mm) x 1.5" (38.1 mm)
Weight	0.24 lbs (0.11 kg) without batteries 0.36 lbs (0.16 kg) with batteries

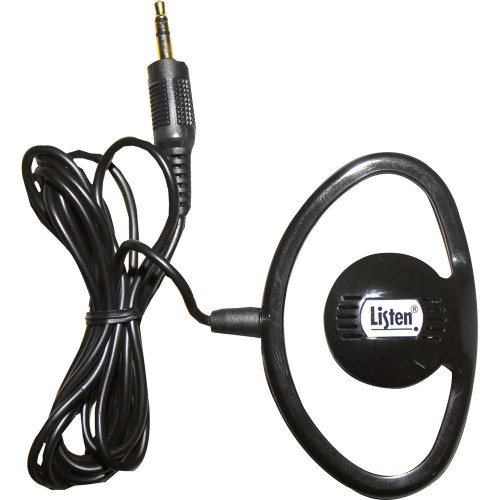

LA-164
Frequency Response	20Hz - 20kHz
Impedance	32 ohm +/- 15% @ 1kHz
Headset Input Sensitivity	115dB +/- 4dB @ 1kHz, 1 mW
Rated Power Input	50 mW
Max Power Input	100 mW
Connector	3.5 mm Stereo
Cable Length	36" (914.4 mm)
Weight	0.25 lbs (0.113 kg)
LA-166
Frequency Response	20Hz - 20kHz
Impedance	12 ohm +/- 15% @ 1kHz
Headset Input Sensitivity	110dB +/- 4dB @ 1kHz, 1 mW
Rated Power Input	75 mW
Max Power Input	2W
Magnetic Field Strength	100 mA/m 6 inches above loop at 85µW 1kHz input (IEC 60118-4)
Connector	3.5 mm Stereo
Loop Cable Length	33" (838.2 mm)
Cable Length	22" (558.8 mm)
Weight	0.1 lbs (0.047 kg)
LPT-A107-B
Connectors	Dual RCA (male) to Dual RCA (male)
Cable Length	6.6 ft (2 m)
Weight	0.11 lbs (0.05 kg)
