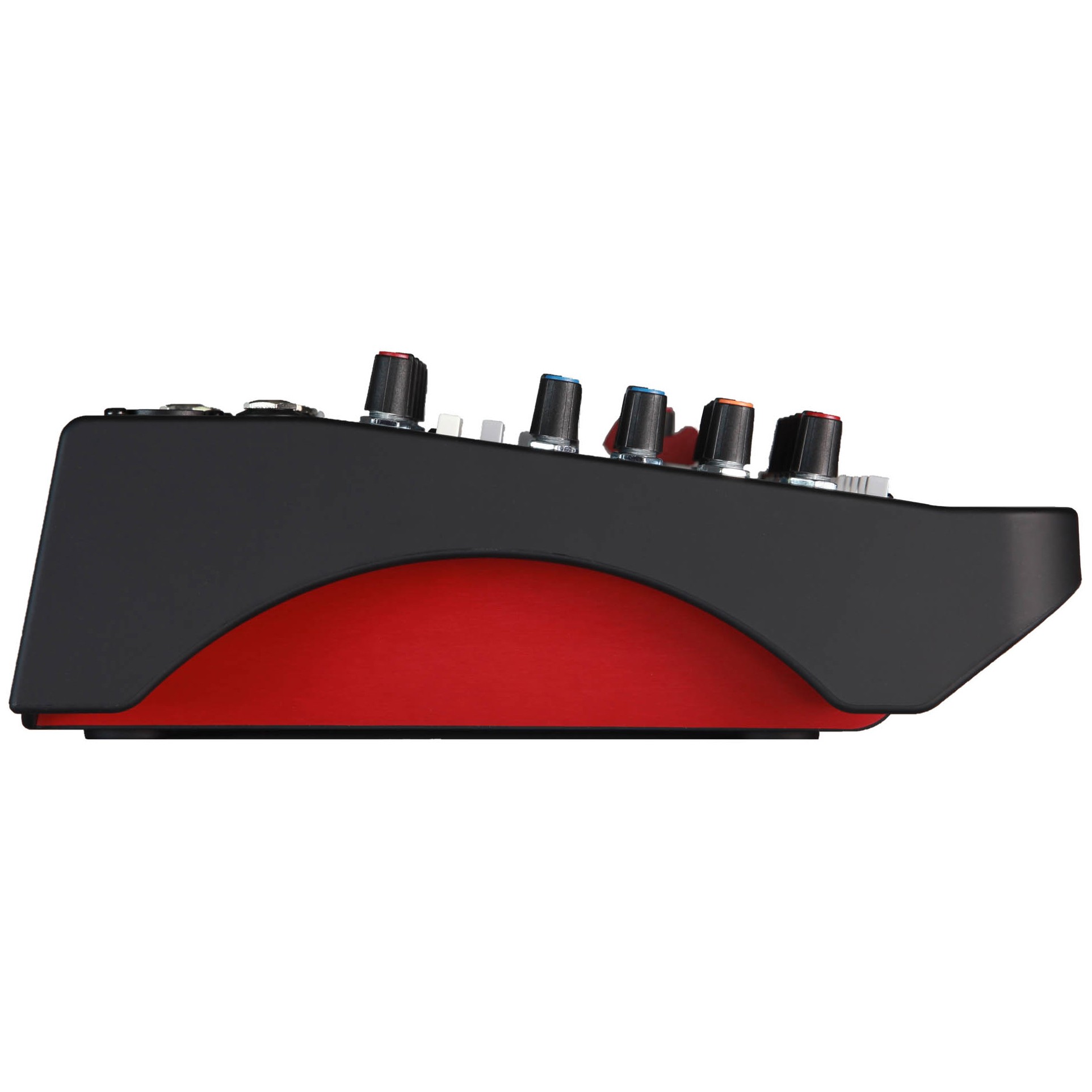

The Allen & Heath ZED-6 Compact Analog Mixer was created for musicians, singer / songwriters and venues seeking Allen & Heath's renowned build and audio quality in a compact, portable format. Whether it’s bouncing ideas around at home, performing live or recording tracks to share on YouTube and Soundcloud, ZED-6 is a versatile companion for every step of the creative journey. Featuring the new GSPre boutique preamp design, developed from the revered GS-R24 studio recording console, the ZED boasts exceptionally low noise and massive headroom, with a signature analog warmth and depth. Guitarists will be pleased to know that ZED-6 comes with a pair of Guitar DI high impedance inputs, allowing guitars to be plugged straight into the mixer without the hassle and expense of carrying separate DI boxes
- Features
Features
- 2 Mic / Line Inputs with separate XLR and TRS jack sockets
- 2 Stereo Inputs with TRS jack sockets
- 2 Guitar DI high impedance inputs, eliminating the need for DI boxes
- Lo-cut filter for cleaning up unwanted low frequency noise
- 2 band EQ for easy creative and corrective tonal shaping
- 60mm smooth travel fader on main mix
- XLR main outputs
- Flexible signal monitoring
- 8 LED signal metering
- 48V Phantom Power for condenser mics
- Robust internal power supply
- Specification
Operating Levels Input Mono channel (XLR) Input -5dBu to –60dBu (+13dBu in max) Mono channel Instrument/Line Input (Jack socket) +14dBu to -40dBu (+17dBu maximum) Stereo Input (Jack sockets) 0dBu nominal (control = Off to +15dB Gain) Operating Levels Output L/R Outputs (XLR) 0dBu (+18dBu maximum. Frequency Response Mic in to Mix L/R Out, 30dB gain 10Hz to 20kHz +0.5/-1dB Instrument/Line in to Mix L/R out 0dB gain 10Hz to 20kHz +0.5/-1dB Stereo in to Mix L/R out 10Hz to 20kHz +0.5/-1dB THD+n Mic in to Mix L/R Out, 10dB gain 1kHz +10dBu out (22 Hz-22kHz Filter) 0.0025% Mic in to Mix L/R Out, 30dB gain 1kHz (22 Hz-22kHz Filter) 0.006% Instrument in to Mix L/R out 0dB gain 0dBu 1kHz (22 Hz-22kHz Filter) 0.03% 2nd Harmonic Stereo in to Mix L/R out 0dB gain +10dBu 1kHz (22 Hz-22kHz Filter) 0.0025% Headroom Analogue Headroom from nominal (0Vu) 18dB Noise Mic Pre EIN @ max gain 150R input Z (22 Hz-22kHz Filter) -127dBu Mix L/R out, L/R fader = 0, Channel Levels min (22 Hz-22kHz Filter) -95dBu Mix L/R out, L/R faders = 0, Channel Levels 0dB (22Hz -22kHz Filter) -92dBu Mixer Specification Inputs - Mic Preamps 2 x XLR Inputs - Line 2 x TRS (CH 1-2)
4 x TRS (CH 3-4 ST)Outputs - Main 2 x XLR (Main) Headphones 1 x 1/4" Phantom Power 2 EQ Bands 2-band, (CH 1-2)
2-band (CH 3-4 ST)Busses/Groups Stereo Bus Dimensions (H x W x D) 3.5" (88.9 mm) x 9.8" (249 mm) x 9.3" (236.4 mm) Weight (Unpacked) 2.8 lbs (1.3 kg) Weight (Packed) 4.2 lbs (1.95 kg) - Documents
