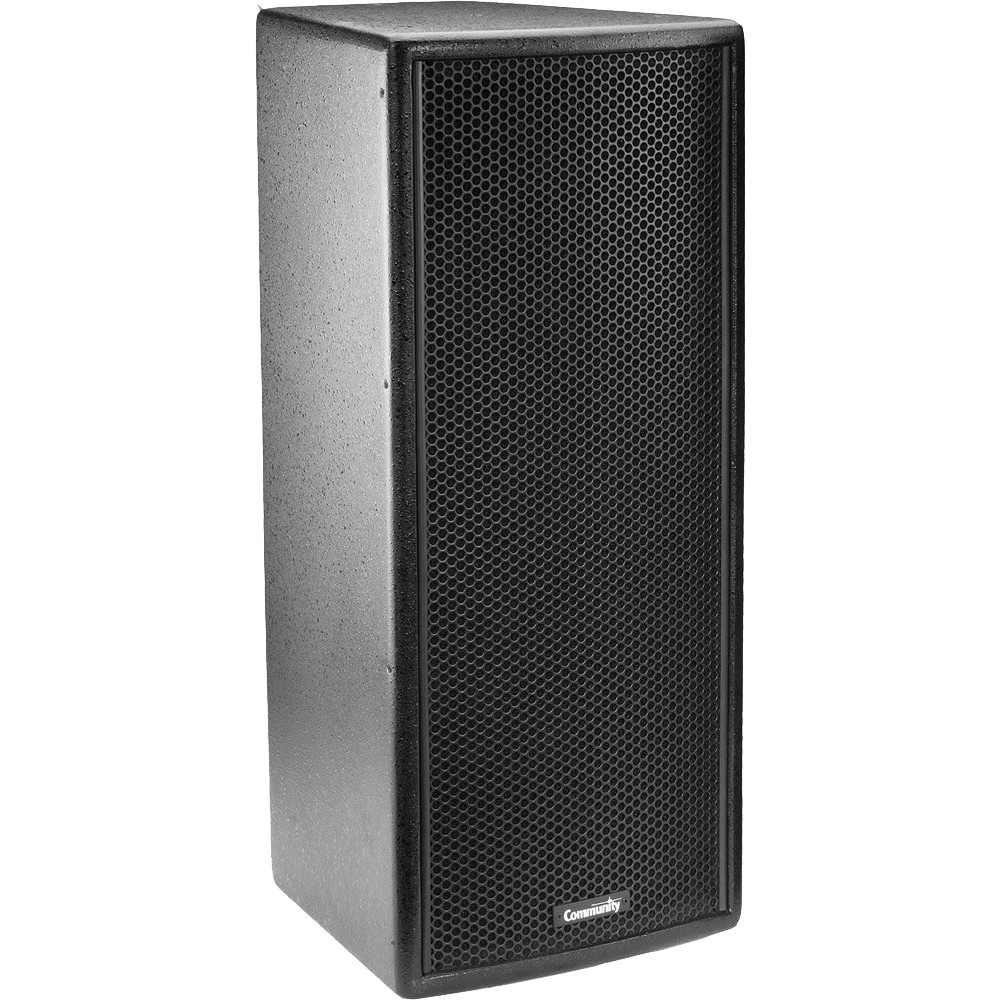

Community V2-28BT Dual 8" 2-Way Full-Range 70V/100V Loudspeaker 90° x 70° Dispersion - Black

Community V2-28BT Dual 8-inch Black 70V/100V Loudspeaker

The V2-28BT in black is a high-performance dual 8" two-way full-range loudspeaker designed for flexible use in distributed and delay sound systems. With a built-in 200W autoformer for 70/100V applications, it is ideal for cafes, restaurants, shopping centers, airports, and other commercial installations. Its dual cone drivers provide extended low-frequency and midrange output compared to its sister model, the V2-8, ensuring full, high-fidelity sound even in a compact enclosure. When paired with a subwoofer such as the V2-212S, the V2-28BT produces broad-spectrum sound that far exceeds its modest size.

Perfect for ancillary delay applications in auditoria, theaters, and houses of worship, the V2-28BT ensures consistent sound levels from front to rear of the room. Its 90° H x 70° V dispersion pattern, combined with frequency-shaded woofers and a constant-directivity rotatable square horn, delivers smooth, controlled coverage. The user-rotatable horn allows optimal performance in vertical or horizontal mounting, while the included yoke bracket with 10° and 20° vertical standoffs provides versatile wall or ceiling installation options.

Built for reliability, the V2-28BT features Dyna-Tech driver protection circuitry, ferrofluid-treated HF drivers, and Carbon Ring Cone Technology for increased piston area and excursion capability. With terminal strip and NL4-compatible connectors, flexible mounting options, and a durable black finish, this loudspeaker is an excellent choice for distributed systems, delay fill, or supplemental PA in a wide variety of venues. Fully compatible with Community ALC404D controllers, higher-power ALC models may also be used safely.

• Dual 8" two-way full-range loudspeaker in black with built-in 200W autoformer (70V/100V)
• 90° H x 70° V coverage in vertical orientation
• Constant-directivity rotatable square horn for flexible dispersion
• Frequency-shaded woofers for smooth vertical pattern control
• Dyna-Tech driver protection circuitry for reliable operation
• Ferrofluid-treated HF driver for improved heat dissipation
• Carbon Ring Cone Technology increases LF piston area and excursion
• Terminal strip and NL4-compatible connectors for flexible wiring
• Yoke bracket included with 10° and 20° vertical standoffs for wall or ceiling mounting
• 5-year warranty
