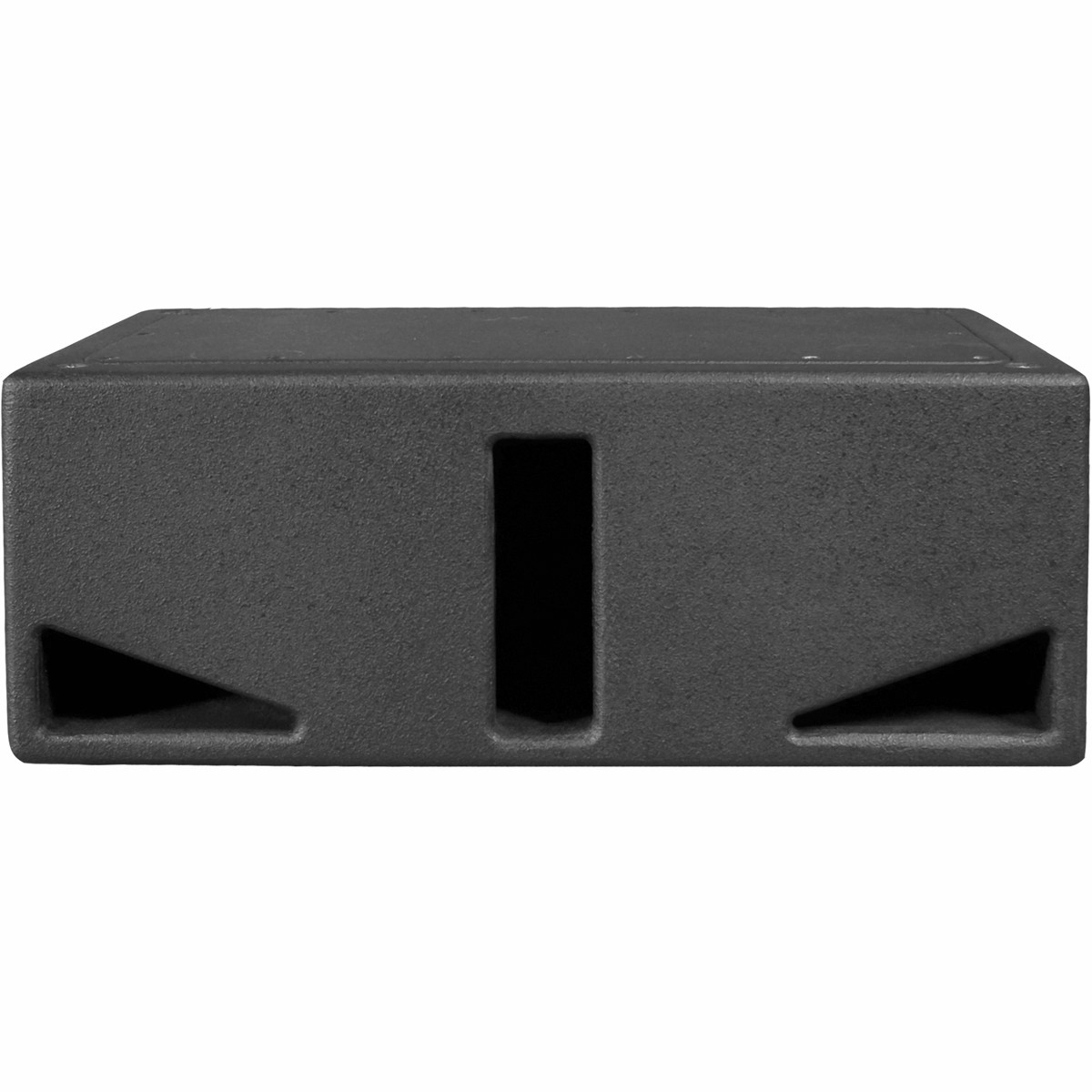

Community VLF208B Dual 8" 300W Compact Subwoofer - Black

Part # 920-00582-10000
Model # VLF208B
The Community VLF208B is a dual 8" low-profile subwoofer designed for hidden installations. With powerful bass extension down to 70 Hz (60 Hz with DSP), it delivers professional low-frequency performance in a sleek black enclosure.

Availability: Usually arrives in 12-16 business days

Description

Details

Community VLF208B 8-inch Black Compact Subwoofer

The VLF208B is a compact dual 8-inch subwoofer engineered for discreet, professional audio installations. Its sleek black, grille-free enclosure is slim enough to fit between standard wall studs, under stages, or in ceilings, making it the perfect choice where larger subwoofers are impractical. With a frequency response down to 70 Hz in passive mode or 60 Hz with DSP, it provides clean, powerful bass extension in a small, unobtrusive form.

This black-finished subwoofer can be used as a traditional low-frequency source or integrated into steered bass arrays to reduce reflections in acoustically challenging environments. Featuring DYNA-TECH protection circuitry, fly points, recessed foot mounts, and optional brackets, the VLF208B Black offers versatile installation options. Its durable black finish allows it to blend seamlessly into theaters, houses of worship, schools, restaurants, and auditoria while delivering professional-grade bass performance.

Features

Features

  • Ultra-compact dual 8-inch subwoofer with powerful low-frequency output
  • Sleek black finish for discreet, professional installations
  • Low-profile design with a small footprint for tight spaces
  • Operates as a traditional subwoofer or in steered bass arrays
  • DYNA-TECH protection circuitry ensures reliable performance
  • Ideal for in-wall, under-seat, under-stage, and other "hidden" LF applications
  • Compatible with optional wall, ceiling, and array mounting brackets for flexible configurations
  • 5-year warranty
Specification
Operating Range5 Hz to 400 Hz
60 Hz to 160 Hz (±1 dB) processed
Max Input Ratings300W continuous, 750W program, 4 ohms
35 volts RMS, 77 volts momentary peak
Recommended Power Amplifier630W to 900W @ 4 ohms
Sensitivity (1W/1m)95 dB SPL (63 Hz to 160 Hz 1/3 octave bands)
Maximum Output120 dB SPL / 127 dB SPL (peak)
Nominal Impedance4 ohms
Minimum Impedance4.8 ohms @ 130 Hz
Nominal –6 dB Beamwidth360° H x 180° V
Axial Q / DI1/0, 60 Hz to 160 Hz
Recommended Signal Processing55 Hz high pass filter, 48 dB/Oct
DriversLF (2) 8"
Driver ProtectionDYNA-TECH
Input Connection(1) NL4-compatible locking connector
(1) 2 conductor barrier strip
Enclosure11-ply cross-laminated birch
Mounting/Rigging Provisions(8) M10 hang points
Required AccessoriesDigital signal processor
Supplied Accessories(4) Rubber feet
Dimensions (H x W x D)8.25" (210 mm) x 21.75" (552 mm) x 13" (330 mm)
Weight42 lbs (19.1 kg)
Shipping Weight52 lbs (23.59 kg)
