NEXO EPS8 8-inch 2-Way Installation Passive Point Source Loudspeaker

Description

Details

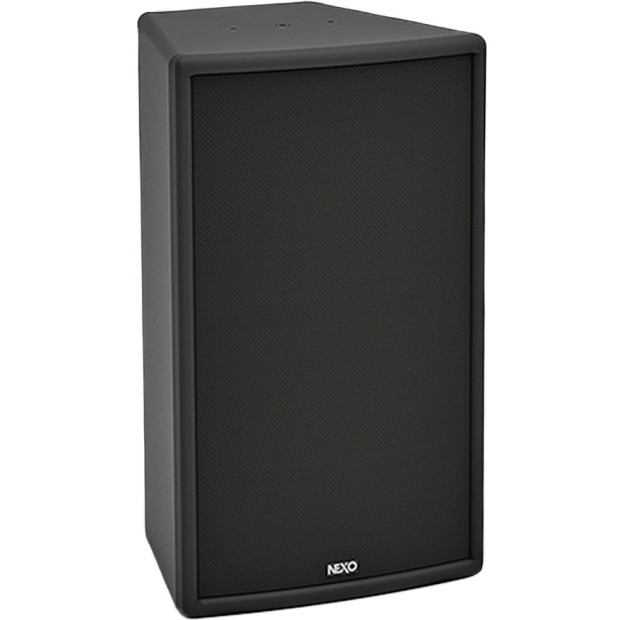

NEXO EPS8 8-Inch Installation Black Point Source Loudspeaker

The EPS8 is a compact yet powerful black installation-dedicated point source loudspeaker, designed for fixed applications requiring high output, precise coverage, and discreet integration. Built around a high-excursion neodymium 8" low-frequency driver and a 1.4" diaphragm compression driver, the EPS8 delivers exceptional clarity and impact, reaching peak levels of up to 128 dB while maintaining NEXO's renowned sound quality.

Housed in a robust 15 mm birch plywood enclosure, the EPS8 combines durability with a lightweight form factor ideal for permanent installations. Its bass-reflex design ensures clean, extended low-frequency performance, while the rotatable NEXO Asymmetrical Dispersion Constant Directivity "PS" horn allows precise tailoring of coverage to suit both short- and long-throw listening areas. With an IP55 rating, the black EPS8 is well-suited for demanding indoor and protected outdoor environments.

Designed as the perfect companion to NEXO ELS400 and ELS600 subwoofers, the EPS8 integrates seamlessly into scalable wideband systems. Multiple M6 and M10 rigging points support U-brackets, wall mounts, eye-bolts, and suspension accessories, enabling flexible mounting in horizontal or vertical orientations. NEXO's phase-aligned acoustic signature ensures effortless integration with other NEXO systems without complex electronic adjustment.

Features

Features

2-way passive installation point source loudspeaker
High-excursion 8" LF driver with 1.4" HF compression driver
Delivers up to 128 dB peak SPL
Rotatable NEXO asymmetrical PS horn for precise coverage
IP55-rated black birch plywood enclosure
Bass-reflex design for clean low-frequency response
Lightweight yet robust 15 mm birch plywood cabinet
Multiple M6 and M10 rigging points
Compatible with NEXO ELS400 and ELS600 subwoofers
Phase-aligned with other NEXO loudspeakers

Specification

Frequency Response @-6 dB	80 Hz to 20 kHz
Sensitivity 1W @ 1m	100 dB SPL Nominal
Peak SPL @ 1m	128 dB
Vertical Dispersion	+25°/-30°
Horizontal Dispersion	50° to 100° asymmetrical
Crossover Frequency	80 Hz, 120 Hz
Nominal Impedance	8Ω
Recommended Power	350 to 570 Watts/8 Ohms
Number of Ways	2 way passive
LF Component	8" 8 Ohms long excursion neodymium driver
HF Component	1.4" diaphragm 8 Ohms HF driver on an Asymmetrical Dispersion ("PS") horn
Connectors	2 pairs (In/Out) of 7.62 mm pitch screw terminal blocks (+/- poles)
Compatible Cables Section	Cables from 0.75 mm to 3.31 mm (AWG 18 to 12) copper section
Compatible Cables Outside Diameter	Cable with maximum outside diameter of 11 mm
Rigging Points	3x M6 - 70 mm pitch rigging points (back) + 2x extra M6 and 1x M10 (top/bot)
Material	15 mm thick birch plywood body and galvanized grill
Finish	Black structural paint
Front Finish	UV & Fire resistant acoustic fabric
Operating Temperature Range	0°C - 40°C (32°F - 104°F)
Storage Temperature Range	-20°C - 60°C (-4°F - 140°F)
IP Rating	IP55
Dimensions (H x W x D)	16.7" (423 mm) x 9.8" (250 mm) x 8.9" (227 mm)
Weight	17.9 lbs (8.1 kg)
