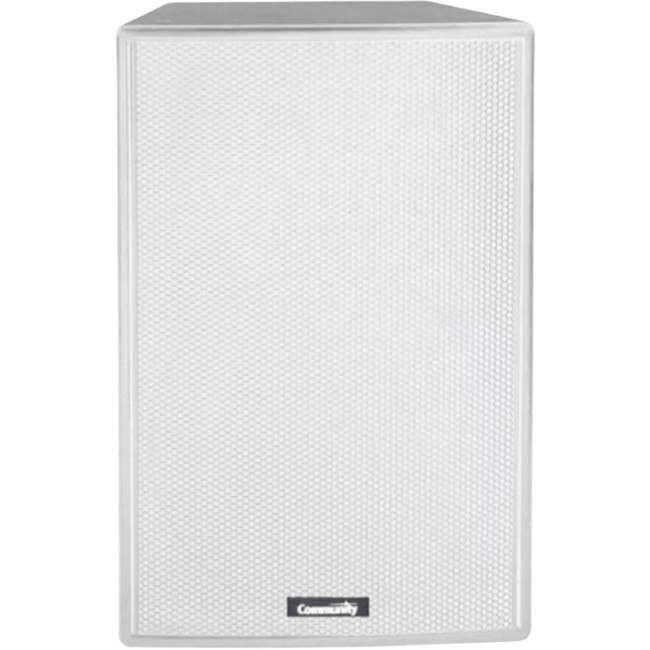

Community V2-8W 8-inch White Full-Range Loudspeaker
The V2-8W is a compact, two-way, full-range 8-inch loudspeaker designed for a wide range of fixed installations. Despite its modest size, it delivers powerful, high-fidelity sound suitable for distributed audio systems in cafes, restaurants, shopping centers, airports, and other public venues. Its 90° x 70° rotatable constant-directivity horn, DYNA-TECH driver protection, and Carbon Ring Cone Technology ensure consistent clarity, extended excursion, and reliable performance in any environment.
Ideal for delay fill applications or to augment front-of-house systems in theaters, auditoria, and houses of worship, the V2-8W helps even out sound coverage from front to rear. It can be mounted on walls or ceilings with the included yoke bracket, suspended from M6 rigging points, or installed using third-party mounts. Paired with a subwoofer like the Community VLF208LV, it produces a broad-spectrum, full-range audio experience that belies its compact size.
For optimal performance, Community Amplified Loudspeaker Controllers (ALC) are recommended, including the ALC404D, though higher-power ALC models may also be used safely. Ruggedly built with a sleek white finish and versatile mounting options, the V2-8W delivers professional-grade sound reinforcement backed by a 5-year warranty.
- Features
Features
- 8-inch compact, two-way loudspeaker in sleek white finish
- 90° H x 70° V dispersion (vertical position)
- DYNA-TECH driver protection circuitry
- Ferrofluid-treated high-frequency driver for improved heat dissipation
- Carbon Ring Cone Technology for 30% more piston area and increased excursion
- Constant-directivity rotatable square horn
- Terminal strip and NL4-compatible connectors
- Mounting yoke included with 10° and 20° vertical standoffs
- 5-year warranty
- Specification
Operating Range 70 Hz to 18 kHz (-10 dB) Frequency Response 100 Hz to 16 kHz (±3 dB) Max Input Ratings 150W continuous, 375W program
34.6 volts RMS, 69.2 volts momentary peakSensitivity (1W/1m) 92 dB (100 Hz to 12.5 kHz) free space Maximum Output 114 dB SPL / 120 dB SPL (peak) Nominal Impedance 8 ohms Minimum Impedance 6.1 ohms @ 180 Hz Nominal –6 dB Beamwidth 90° H x 70° V (in vertical position) Crossover Frequency 1.3 kHz Recommended Signal Processing 90 Hz, 24 dB/octave Butterworth high pass filter Drivers LF 1 x 8" cone; HF 1 x 1" Driver Protection DYNA-TECH protection circuitry Input Connection NL4-compatible locking connector with terminal strip in parallel Enclosure Trapezoidal (22.5° included angle) 18 mm, 11-ply cross-laminated birch Mounting/Rigging Provisions 9 x M6 threaded rigging fittings
4 x M6 threaded fittings for V-HSS & third-party suspension producFinish Catalyzed polyester two-part paint, white Grille Powder coated steel, white finish Dimensions (H x W x D) 17" (433 mm) x 11.3" (287 mm) x 11.7" (298 mm) Weight (incl. Bracket) 25.3 lbs (11.5 kg) Shipping Weight 30.3 lbs (13.74 kg) - Documents
