- Description
Details

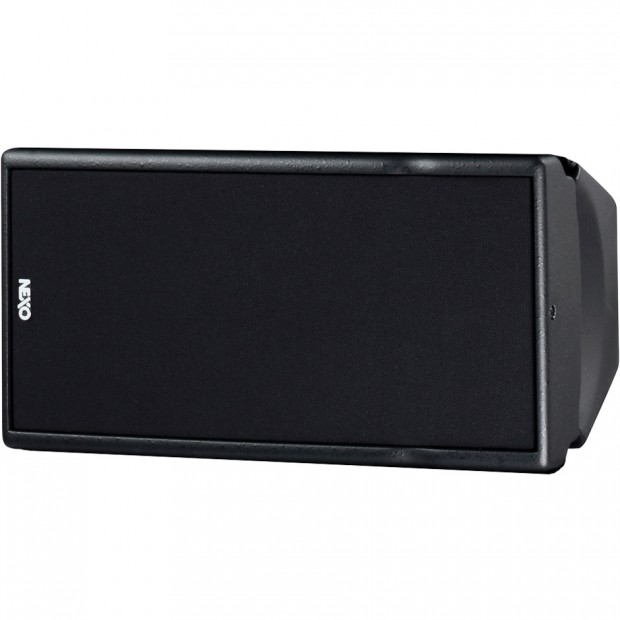

The NEXO GEO M620 is a powerful, flexible and compact loudspeaker for stand-alone, curved array, or line array applications that delivers an uncompromised full range sound in a wide variety of fixed installations and mobile applications.
Extremely compact in size (191 mm x 373 mm x 260 mm), the M620 module punches well above its weight of less than 10 kg. Using a NEXO-designed long-excursion high-efficiency 6.5" LF driver and a 1" throat driver on a BEA / FEA optimized HR Wavesource, the M620 delivers a frequency response of 80Hz-19kHz (±3dB), with nominal peak SPL of 127dB. HF dispersion is 80° or 120° horizontal, with 20° vertical coverage, 0° to 20° splay when arrayed. Using NEXO's HRW patented waveguide for optimum HF coupling between elements, the M620 performs in a variety of configurations, facilitated by a fully-integrated 3-point rigging system.
Together, the GEO M620 main and the GEO M6B bass extension cabinets, complemented by a comprehensive range of mounting accessories, create the GEO M6 system. Systems can be flown, ground-stacked or pole-mounted on subs.
The GEO M620 main and the GEO M6B bass extension cabinets can be flown in the same array to create a compact, powerful and discreet system, ideal for installation in small theatres and conference halls. Pole-mounting a pair of GEO M620 main cabinets on a NEXO LS600 sub-bass cabinet quickly creates a high-output, full range system.
The combination of high power and low visual impact makes GEO M6 the perfect choice for use in live events. A comprehensive range of mobile rigging accessories makes it easy for contractors and rental companies to achieve exceptional sonic performance without impinging upon the production design.
The versatility of the GEO M6 system extends to a highly cost-effective amplification solution. A single NXAMP, the smallest of NEXO's powered TDControllers, can power up to 12x GEO M6 cabinets. And with 'channel-by-channel' preset selection for all NEXO cabinets and linear phase on all set-ups, it is easy to integrate sub-bass cabinets such as the NEXO LS600 into a single amplifier solution.
NEXO has built a global reputation for the quality and performance of its concert line array systems. Now GEO M6 brings NEXO technology to installed sound applications, delivering the key benefits of uncompromised full range sound and consistent SPL coverage.
- Features
Features
- Powerful, flexible and extremely compact in size
- Internal rigging system
- Delivers uncompromised full range sound
- Suitable for fixed installations and mobile applications
- Recommended amplifiers: 450W per box (3 boxes max in parallel on one channel amplifier)
- Side handles
- Acoustic fabric fitted front grille
- Specification
Frequency Response 80Hz - 19kHz (±3dB) Usable Range 75Hz - 20kHz (@ -6dB) Sensitivity 95dB SPL nominal (1W @ 1m) Nominal Peak 127dB (SPL @ 1m) HF Dispersion 80˚or 120˚ horizontal (CCD) Crossover Frequencies LF-HF: 2kHz passive Nominal Impedance 8Ω Components LF: 1 x 6.5” 8Ω long excursion driver
HF: 1 x 1” throat driver on a BEA/FEA optimised HR WavesourceConnectors 2 x NL4 Speakon 4 poles Dimensions (H x W x D) 7.5" (191 mm) x 14.7" (373 mm) x 10.2" (260 mm) Weight 21.4 lbs (9.7 kg) - Documents
Documents
