Lowell LT-810-SM810-VL Sound Masking Drop Tile Speaker with Volume Control (See LT-810-SM810)

Quick-install loudspeaker for suspended tile ceilings features a paging driver that fires down for clear voice transmission and a masking driver that fires up to shape background sound levels for improved privacy and productivity. Ships ready to install.

• Patented T-Bar Support: Installs quickly when replacing half of non-tegular 2x2 ceiling tile or 1/4 of non-tegular 2x4 ceiling tile. T-bar supports neighboring non-tegular ceiling tile

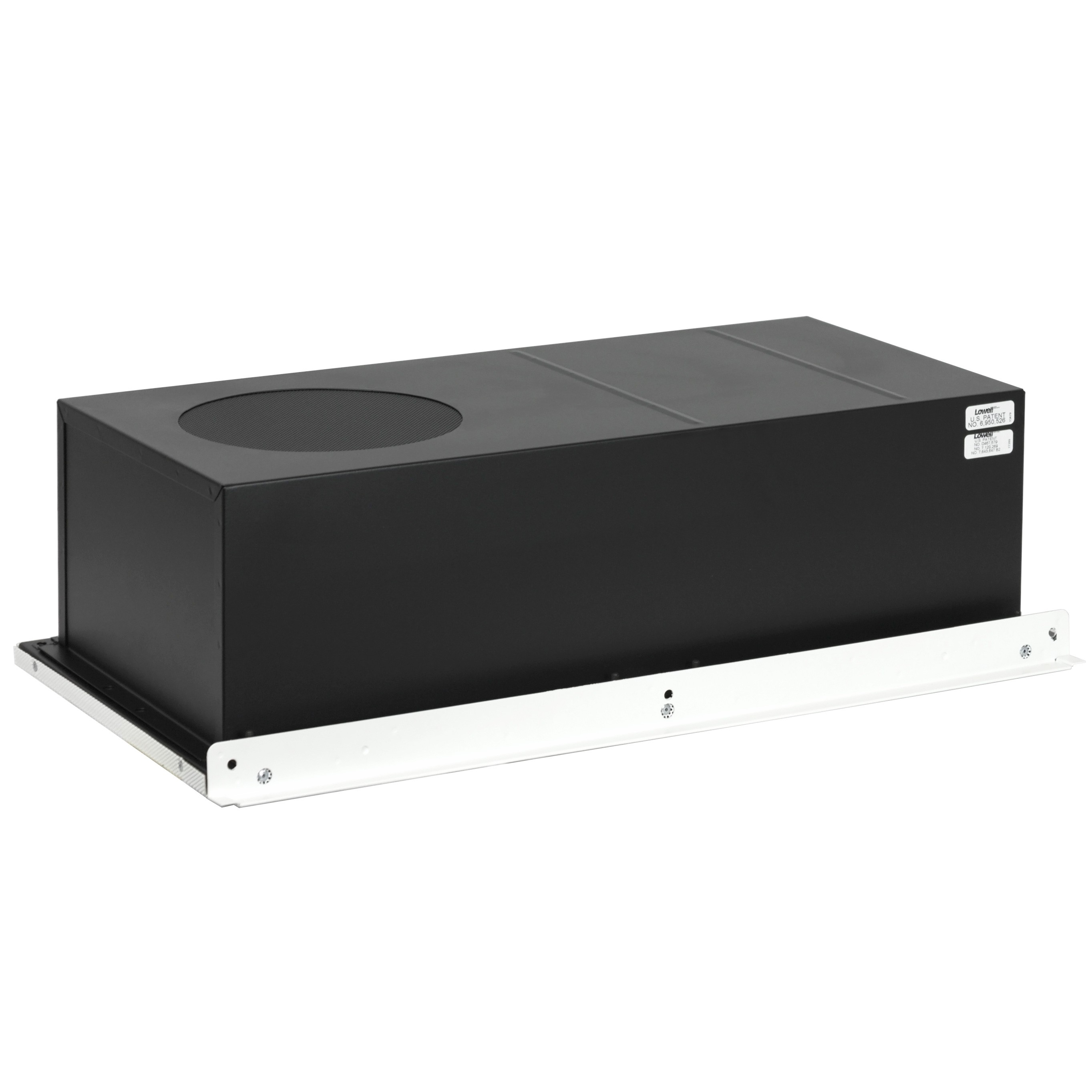

• Steel Backbox: 23.75"L x 10.5"W x 6"H box is partitioned to provide 700 cu.in. volume for each speaker. Includes 1.5" thick acoustic lining
• Drivers: Two 8" 15W dual-cone drivers — one fires up, one fires down

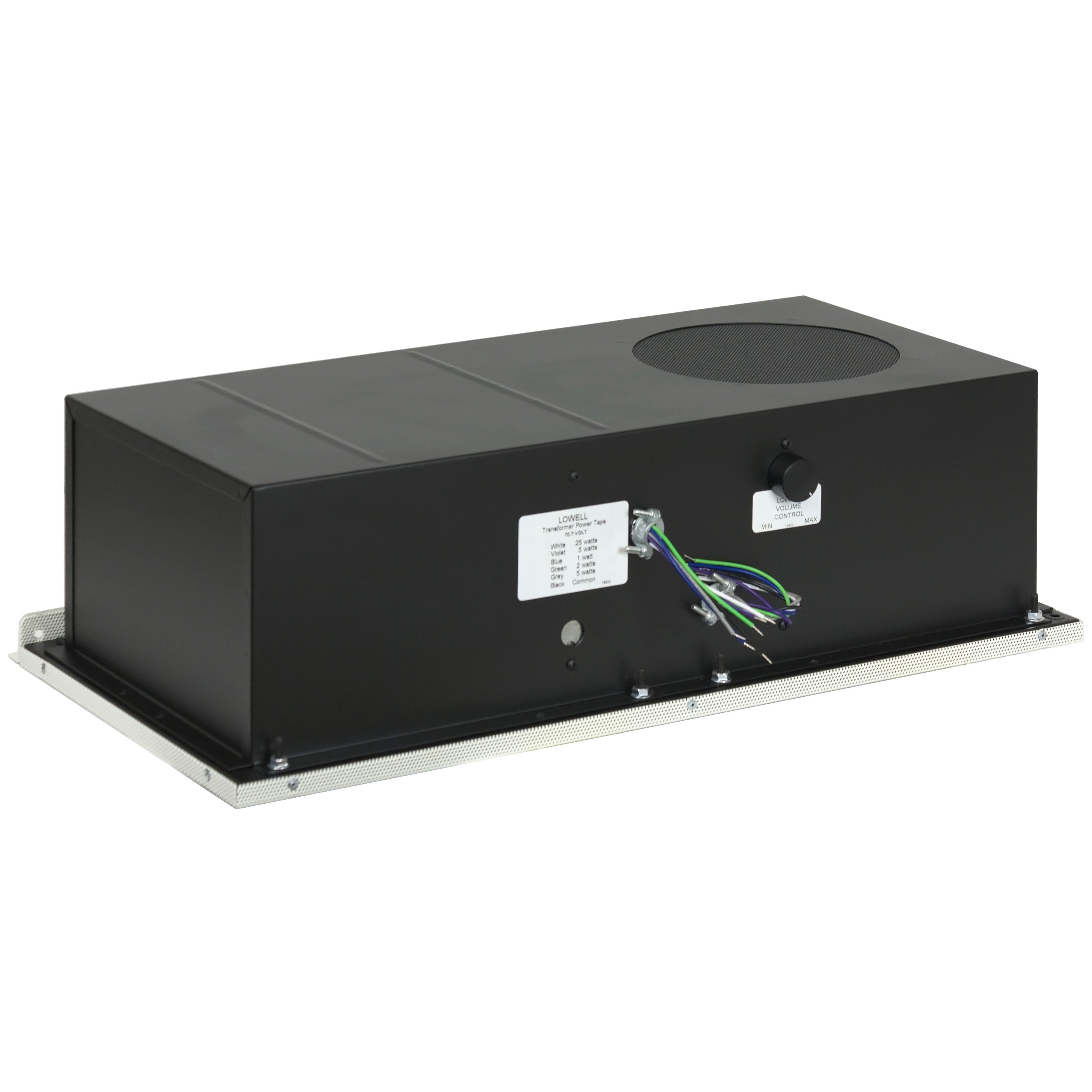

• Transformers: Two TLM572 transformers (only 70V leads are available). Taps — 0.25, 0.5, 1, 2, 5W @ 70V
• Steel Grille: 1'x 2' subplate and grille with fine-perforation pattern and white finish provides maximum free-air space for excellent sound transmission
• Volume Control: 50 ohm potentiometer shaft-adjust VC for the masking driver only
• The T-bar has a restraint tab in one corner and a hole on the opposite corner for (two-cable) tie-off or code compliance

Spec Sheet
