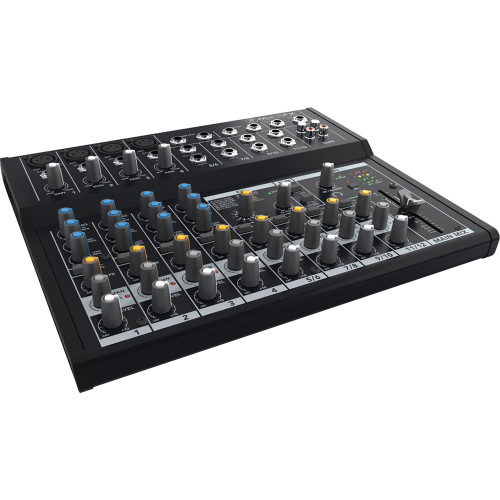

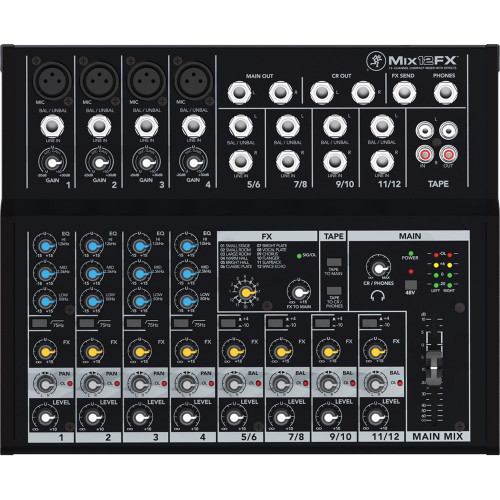

Mackie Mix12FX 12-Channel Compact Mixer with Effects

Mackie Mix12FX 12-Channel Compact Mixer with Effects

Name: Mackie Mix12FX 12-Channel Compact Mixer with Effects
Brand: Mackie
SKU: MACKIE-2044096-00
Price: 159.99 USD
Availability: InStock
Rating: 3 (1 reviews)

Write a Review

Part #:

2058125-00

Model #:

Mix12FX

Current Stock:

MSRP: $160.00

$159.99

Availability: Usually arrives in 5-9 business days.

Quantity:

Adding to cart… The item has been added

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Mix12 12-channel compact effects mixer delivers the proven quality, great-sounding effects and reliably rugged design you expect from Mackie, the world leader in compact mixer.

Description

The Mix12FX 12-channel compact effects mixer is reliably rugged, with the proven quality you expect from Mackie, the world leader in compact mixer design. Great for straightforward applications that need a professional touch, the Mix12FX features a selection of 12 integrated effects like reverbs and delays. Plus, with a rugged metal chassis and high-quality components throughout, the Mix12FX is a solid investment in reliability. An amazing value, the Mix12FX is easy to use and delivers the sound quality you need in a rugged design built to last. Plus, wouldn’t you rather mix on a Mackie? Don’t sacrifice — choose the Mackie Mix Series.

Features

12-channel compact effect mixer with proven high-headroom, low-noise performance
4 mic/line input with studio-level audio quality
- 3-band EQ with clean, precise tone shaping
- Low cut filter (75Hz)
- Pan, level and overload indication
- Phantom power for studio condenser mics
4 stereo 1/4" line inputs

+4/-10dB operation
Balance, level and overload indication

12 great-sounding integrated effects including reverbs, choruses and delays
Dedicated stereo RCA inputs/outputs for playback or recording
60mm fader for Main L/R outputs
Headphone and stereo control room outputs
Rugged, reliable design built to last
Extremely compact and portable

Specifications

Noise Characteristics(20 Hz - 20 kHz Bandwidth, 150 Ω Source Impedance)
All Outputs, Master Levels and Channel Levels Off	-100 dBu
All Outputs, Master Levels Unity, All Channel Levels Off	-90 dBu
All Outputs, Master Levels Unity, 1 Channel Levels Off	-85 dBu
Distortion (THD+N)(1 kHz, 20 Hz – 30 kHz Bandwidth)
Mic Input to Main Output
Attenuation and Crosstalk(20 Hz – 20 kHz Bandwidth)
Inputs to outputs @1 kHz	-85 dB
Main Mix Off @1 kHz	-80 dB
Frequency ResponseMic Input to Any Output (Gain @ Unity)
Equivalent Input Noise (EIN)Mic in to Insert Send Out, Max Gain
150 Ω Termination	-122 dBu
Common Mode Rejection Ratio (CMRR)(Mic in to Insert Send Out, Max Gain)
1 kHz	Better Than 70 dB
Maximum Levels
Mic Inputs (XLR)	+19 dBu
All Other Inputs	+21 dBu
All Outputs	+21 dBu
Impedances
Mic In	3.8 kΩ
All Other Inputs	10 kΩ or Greater
Tape Out	1 kΩ
Phones Out	22 kΩ
All Other Outputs	120 Ω Unbalanced 240 Ω Balanced
EQ
High Shelving	±15 dB @ 12 kHz
Mid Peaking	±15 dB @ 2.5 kHz
Low Shelving	±15 dB @ 80 Hz
Low Cut Filter	18 dB/Octave, –3 dB @ 75 Hz
AC Power Requirements
Input	AC120V~, 60 Hz [US] AC230-240V~, 50/60 Hz [EU] AC220-230V~, 50/60 Hz [UK] AC220-240V~, 50/60 Hz [AU] AC220V~, 50 Hz [CN] AC127V~, 60 Hz [BZ]
Output	AC18V~ 1000mA [US] (AC9V~ 500mA)x2 [EU] (AC9V~ 500mA)x2 [UK] (AC9V~ 500mA)x2 [AU] (AC9V~ 500mA)x2 [CN] AC18V~ 1000mA [BZ]
Operating Temperature	0˚ - 40˚C 32˚ - 104˚F
Dimensions (H x W x D)	2.1" (53 mm) x 11.7" (297 mm) x 9.6" (244 mm)
Shipping Dimensions (H x W x D)	3.2" (81 mm) x 13" (330 mm) x 14.6" (371 mm)
Weight	3.7 lbs (1.7 kg)
Shipping Weight	5 lbs (2.3 kg)

DOCUMENTS

Reviews

Write a Review

David (DJ Dave)

3
Posted by David (DJ Dave) • July 6, 2017

For the money and Name alone you can't go wrong. It's definitely a good mixer.

I bought the Mix12FX and use for both DJ and Karaoke. For the price, this works really well. The effects are very clean and nice sounding and gets the job done. At times but not always the mixer can get unwanted interference and you will definitely hear it through the F.O.H. Also I noticed that AC adapter gets rather warm almost hot but not hot enough to burn you or cause damage. Over all I'd give this on a scale of 1-10 a 7.0. Now if Mackie would put the Onyx Mic Pre Amps in Channels 1-4 I'd give it a 10.0. Hope this review has been helpful.
