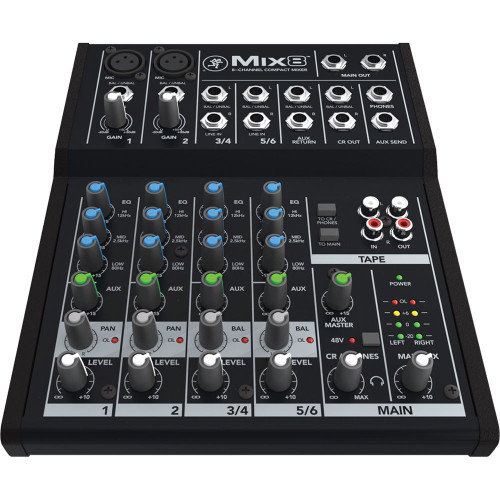

The Mix8 8-channel compact mixer is reliably rugged, with the proven quality you expect from Mackie, the world leader in compact mixer design. Perfect for straightforward applications with minimal input needs, Mix8 sounds great and maintains audio quality from any source. Plus, with a rugged metal chassis and high-quality components throughout, Mix8 is a solid investment in reliability. An amazing value, Mix8 is extremely easy to use and delivers the sound quality you need in a rugged design built to last. Plus, wouldn’t you rather mix on a Mackie? Don’t sacrifice – choose the Mackie Mix Series.
| Noise Characteristics(20 Hz - 20 kHz Bandwidth, 150 Ω Source Impedance) | |
|---|---|
| All Outputs, Master Levels and Channel Levels Off | -100 dBu |
| All Outputs, Master Levels Unity, All Channel Levels Off | -90 dBu |
| All Outputs, Master Levels Unity, 1 Channel Levels Off | -85 dBu |
| Distortion (THD+N)(1 kHz, 20 Hz – 30 kHz Bandwidth) | |
| Mic Input to Main Output | |
| Attenuation and Crosstalk(20 Hz – 20 kHz Bandwidth) | |
| Inputs to Outputs @1 kHz | -85 dB |
| Main Mix Off @1 kHz | -80 dB |
| Frequency ResponseMic Input to Any Output (Gain @ Unity) | +0,-1 dB, 20Hz to 30 kHz |
| Equivalent Input Noise (EIN)Mic in to Insert Send Out, Max Gain | |
| 150 Ω Termination | -125 dBu |
| Common Mode Rejection Ratio (CMRR)(Mic in to Insert Send Out, Max Gain) | |
| 1 kHz | Better Than 70 dB |
| Maximum Levels | |
| Mic Inputs (XLR) | +19 dBu |
| Aux Return In | +16 dBu |
| All Other Inputs | +21 dBu |
| All Outputs | +21 dBu |
| Impedances | |
| Mic In | 3.8 kΩ |
| All Other Inputs | 10 kΩ or Greater |
| Tape Out | 1 kΩ |
| Phones Out | 22 kΩ |
| All Other Outputs | 120 Ω Unbalanced, 240 Ω Balanced |
| EQ | |
| High Shelving | ±15 dB @ 12 kHz |
| Mid Peaking | ±15 dB @ 2.5 kHz |
| Low Shelving | ±15 dB @ 80 Hz |
| Low Cut Filter | 18 dB/Octave, -3 dB @ 75 Hz |
| AC Power Requirements | |
| Input | AC120V~, 60 Hz [US] AC230-240V~, 50/60 Hz [EU] AC220-230V~, 50/60 Hz [UK] AC220-240V~, 50/60 Hz [AU] AC220V~, 50 Hz [CN] AC127V~, 60 Hz [BZ] |
| Output | AC18V~ 600mA [US] (AC9V~ 300mA)x2 [EU] (AC9V~ 300mA)x2 [UK] (AC9V~ 300mA)x2 [AU] AC18V~ 600mA [CN] AC18V~ 600mA [BZ] |
| Operating Temperature | 0˚ - 40˚C 32˚ - 104˚F |
| Dimensions (H x W x D) | 2.1" (53 mm) x 7.8" (198 mm) x 9.6" (244 mm) |
| Shipping Dimensions (H x W x D) | 3.3" (84 mm) x 9.1" (231 mm) x 13.3" (338 mm) |
| Weight | 2.5 lbs (1.1 kg) |
| Shipping Weight | 3 lbs (1.4 kg) |
