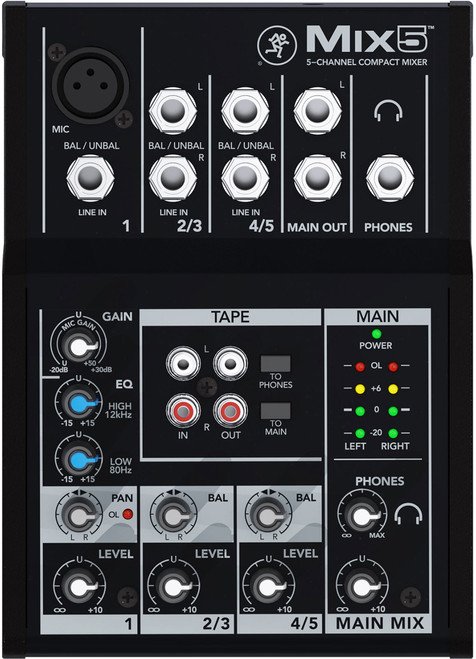

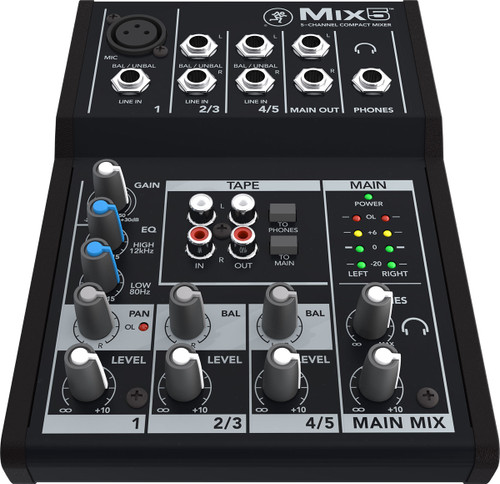

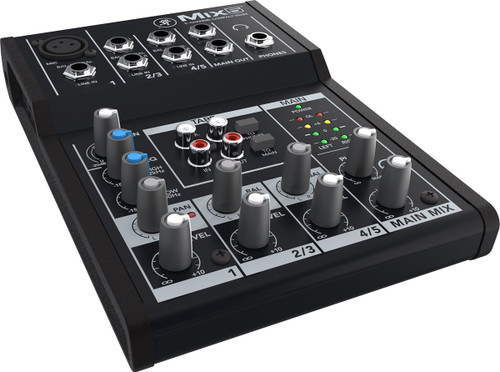

The Mix5 5-channel compact mixer is reliably rugged, with the proven quality you expect from Mackie, the world leader in compact mixer design. Perfect for straightforward applications that incorporate a single mic with other sources, Mix5 sounds great and maintains audio quality from any source. Plus, with a rugged metal chassis and high-quality components throughout, Mix5 is a solid investment in reliability. An amazing value, Mix5 is extremely easy to use and delivers the sound quality you need in a rugged design built to last. Plus, wouldn’t you rather mix on a Mackie? Don’t sacrifice – choose the Mackie Mix Series.
| Noise Characteristics(20 Hz - 20 kHz Bandwidth, 150 Ω Source Impedance) | |
|---|---|
| All Outputs, Master Levels and Channel Levels Off | -100 dBu |
| All Outputs, Master Levels Unity, All Channel Levels Off | -90 dBu |
| All Outputs, Master Levels Unity, 1 Channel Levels Off | -85 dBu |
| Distortion (THD+N)(1 kHz, 20 Hz – 30 kHz Bandwidth) | |
| Mic Input to Main Output | |
| Attenuation and Crosstalk(20 Hz - 20 kHz Bandwidth) | |
| Inputs to outputs @1 kHz | -85 dB |
| Main Mix Off @1 kHz | -80 dB |
| Frequency ResponseMic Input to Any Output (Gain @ Unity) | +0,-1 dB, 20Hz to 30 kHz |
| Equivalent Input Noise (EIN)Mic in to Insert Send Out, Max Gain | |
| 150 Ω Termination | –125 dBu |
| Common Mode Rejection Ratio (CMRR)(Mic in to Insert Send Out, Max Gain) | |
| 1 kHz | Better Than 70 dB |
| Maximum Levels | |
| Mic Inputs (XLR) | +18 dBu |
| All Other Inputs | +21 dBu |
| All Outputs | +21 dBu |
| Impedances | |
| Mic In | 2 kΩ |
| All Other Inputs | 10 kΩ or Greater |
| Tape Out | 1 kΩ |
| Phones Out | 22 kΩ |
| All Other Outputs | 120 Ω Unbalanced 240 Ω Balanced |
| EQ | |
| High Shelving | ±15 dB @ 12 kHz |
| Mid Peaking | ±15 dB @ 2.5 kHz |
| Low Shelving | ±15 dB @ 80 Hz |
| Low Cut Filter | 18 dB/Octave, -3 dB @ 75 Hz |
| AC Power Requirements | |
| Input | AC120V~, 60 Hz [US] AC230-240V~, 50/60 Hz [EU] AC220-230V~, 50/60 Hz [UK] AC220-240V~, 50/60 Hz [AU] AC220V~, 50 Hz [CN] AC127V~, 60 Hz [BZ] |
| Output | AC18V~ 600mA [US] (AC9V~ 300mA)x2 [EU] (AC9V~ 300mA)x2 [UK] (AC9V~ 300mA)x2 [AU] AC18V~ 600mA [CN] AC18V~ 600mA [BZ] |
| Operating Temperature | 0˚ - 40˚C 32˚ - 104˚F |
| Dimensions (H x W x D) | 1.7" (43 mm) x 5.5" (140 mm) x 7.7" (196 mm) |
| Shipping Dimensions (H x W x D) | 3.3" (84 mm) x 6.5" (165 mm) x 11.3" (287 mm) |
| Weight | 1.4 lbs (0.6 kg) |
| Shipping Weight | 2 lbs (0.9 kg) |
