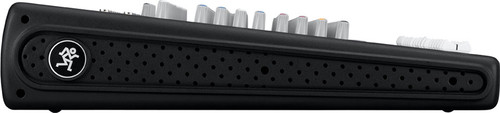

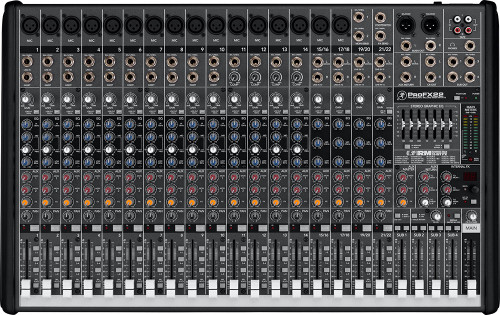

Mackie ProFX22 22 Channel Compact Effects Mixer (Discontinued)

Part #:
ProFX22
Model #:
ProFX22
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The Mackie ProFX22 has been replaced with the Mackie ProFX22v2. The ProFX22 is the clear solution for any medium/large venue that needs great sound, but doesn’t have the budget or space for tons of outboard gear. To lose the rack, tools like compression and graphic EQ are crucial.

Description

The Mackie ProFX22 has been replaced with the Mackie ProFX22v2.

The ProFX22 has everything needed to make your gig sound great and all the necessary channels to rock a large band. Plus, USB I/O lets you record the show or stream music straight from a laptop. The “Pro” in ProFX stands for Pro. Professional tools, rugged build quality, space-saving footprint everything you need.

The ProFX22 is loaded with 16 Mackie low-noise mic preamps, 3-band EQ, integrated “Gig-Ready” effects, precision 7-band GEQ and more. It has all the right tools, each and everyone designed to sound great. Plus, everything is housed in an ultra-tough enclosure with additional impact-resistant sidecheeks, protecting your investment from the rigors of the road.

Let's face it. Audio gear is heavy. Getting a fully-loaded rack in and out of a van is not only arduous, it downright hurts. And it’s likely that you drag around a ton of gear that rarely, if ever, gets used. For most gigs, you just want it to sound good, but get done as easily as possible. Enter Mackie's ProFX Series, delivering a live sound toolbox that does just that. High-headroom mic preamps, great-sounding effects, smooth compression, flexible channel EQ, a built-in DI, plus precision GEQ to tune-up the room or monitor mix. Sounds good, right? Leave that extraneous gear at home. The ProFX22 comes with all these features it is truly the perfect live sound toolbox.

Features

  • Professional 22-channel 4-bus mixer with onboard effects and USB I/O
  • 16 low-noise, high-headroom Mackie mic preamps with +50dB gain range
  • Dedicated inline compression for critical inputs (ch. 11-14)
  • 32-bit RMFX™ processor with 16 “Gig-Ready” reverbs, choruses and delays
  • Precision 7-band graphic EQ for tuning mains and monitors
  • USB I/O for recording shows and music playback via Mac or PC
  • Stream subgroups 1-2 or main L/R to your computer for recording
  • Stereo USB/tape I/O with input level control to main
  • Convenient USB return to stereo channel for implementation of EQ, auxes and more
  • 3-band EQ with sweepable midrange on mono channels
  • 22 high-headroom line inputs (14 mono, 4 stereo)
  • Individual channel mute switches and overload (OL) indicators
  • 18dB/octave 100Hz low cut filters on all mic channels
  • Inserts on mono mic/line channels (ch. 1-10) for connecting outboard processors
  • 60mm faders for input channels, subgroups and mains
  • 48V phantom power with LED for use with condenser mics
  • FX mute button also controllable via footswitch
  • Break switch mutes all channels for music playback between sets
  • Control room / headphone outputs with rotary level control
  • Balanced XLR and balanced/unbalanced 1/4" main outputs
  • Rugged steel chassis
  • Switching multi-voltage power supply for worldwide use
  • Includes Tracktion 3™ Music Production Software for Mac or PC
  • Switching multi-voltage power supply for worldwide use

Specifications

Noise Characteristics Equivalent Input Noise (EIN) –128 dBu
All outputs, master levels off, all channel levels off –95 dBu
All outputs, master levels unity, all channel levels off –85 dBu
All outputs, master levels unity, one channel level unity –85 dBu
Frequency Response 20 Hz to 40 kHz
Distortion (THD+N) (20 Hz to 20 kHz bandwidth)
Adjacent Inputs, 1 kHz –90 dB
Fader Off, 1 kHz –75 dB
Mute Switch/Break Switch Mute, 1 kHz –100 dB
Common Mode Rejection Ratio (CMRR) 70 dB
All inputs +22 dBu
Main Mix XLR +28 dBu
All other outputs +22 dBu
Mic In 3.3 kΩ
Channel Insert Return 10 kΩ
All other inputs 20 kΩ
Tape output 1 kΩ
Phones output 25 Ω
All other outputs 120 Ω
Low ±15 dB @ 80 Hz
Mid ±15 dB 100 Hz – 8 kHz
High ±15 dB @ 12 kHz
Low Cut Filter 18 dB/octave @ 100 Hz
Low ±15 dB @ 80 Hz
Mid ±15 dB @ 2.5 kHz
High ±15 dB @ 12 kHz
Insert Output 50 dB
Tape Output 60 dB
USB Output 50 dB
1/4 70 dB
XLR Main Output 76 dB
Monitor Send 85 dB
FX Send 90 dB
Insert Output 30 dB
Tape Output 40 dB
USB Output 40 dB
XLR Main Output 56 dB
Monitor Send 65 dB
FX Send 70 dB
Tape Output 30 dB
USB Output 30 dB
XLR Main Output 46 dB
Monitor Send 55 dB
FX Send 60 dB
XLR Main Output 36 dB
XLR Main Output 36 dB
Mon Output 30 dB
XLR Main Output 26 dB
I/O Mono input / Stereo output
Number of Presets 16
Frequency Centers 125, 250, 500, 1k, 2k, 4k, 8k
Gain ±15 dB
Format USB 1.1
I/O Stereo Input / Stereo Output
A/D/A 16 Bit, 44.1 kHz / 48 kHz
Phantom Power 48 VDC to all Mic channels at once
Power Consumption 45 watts
Universal AC Power Supply 100 – 240 VAC,50 – 60 Hz
Operating Temperature 0˚ – 40˚C 32˚ – 104˚F
Shipping Dimensions (W x H x D) 28.1 in / 714 mm x 8.0 in / 203 mm x 20.2 in / 513 mm
Front Height 1.7 in / 44 mm
Rear Height 3.8 in / 97 mm
Depth 16.0 in / 407 mm
Width 25.1 in / 639 mm
Net Weight 18 lb / 8.2 kg
