Marshall CV612HT-4K

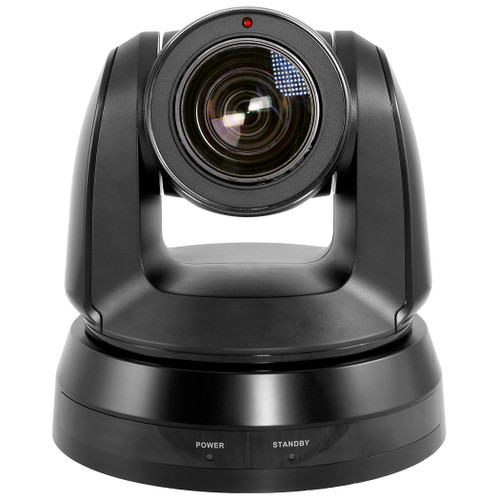

Marshall CV612HT-4K 12X 4K PTZ Camera with HDBaseT and HDMI - Black (Discontinued)
Marshall CV612HT-4K 12X 4K PTZ Camera with HDBaseT and HDMI - Black (Discontinued)
Marshall CV612HT-4K 12X 4K PTZ Camera with HDBaseT and HDMI - Black (Discontinued)
By Marshall Electronics

Marshall CV612HT-4K 12X 4K PTZ Camera with HDBaseT and HDMI - Black (Discontinued)

Write a Review
Part #:
CV612HT-4K
Model #:
CV612HT-4K
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL
The Marshall Electronics Broadcast ProAV 4K PTZ HDBaseT/HDMI Camera is built around a 4K UHD 9 Megapixel 1/2.8-inch sensor with durable and smooth simultaneous Pan-Tilt-Zoom operation. One Cat5e/6 cable carries PoE (48V), uncompressed 4K video, and command control to camera.

Description

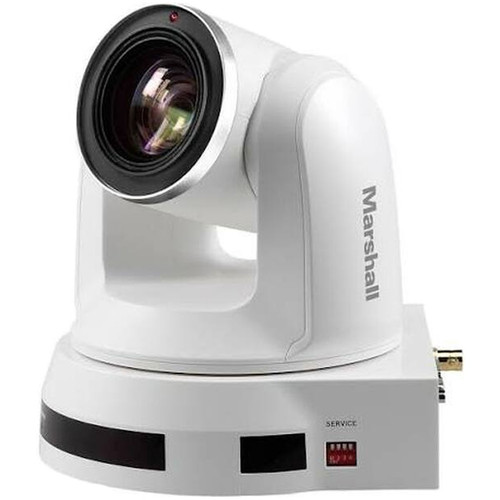

Marshall CV612HT-4KW 12X 4K PTZ Camera

Marshall Electronics Broadcast ProAV 4K PTZ HDBaseT/HDMI Camera is built around a 4K UHD 9 Megapixel 1/2.8-inch sensor with durable and smooth simultaneous Pan-Tilt-Zoom operation. One Cat5e/6 cable carries PoE (48V), uncompressed 4K video, and command control to camera. Remote operation and control using common protocols make it compatible with most integrated control systems. Broadcast adjustable settings such as White Balance, Exposure, Iris, Gamma, Gain, Black Level and other operational adjustments create tremendous flexibility of use.

Applications:

  • Corporate
  • Courtroom
  • Education
  • Worship
  • Healthcare
  • Medical
  • Government
  • Entertainment
  • Music and a Variety of Broadcast Studio Work-Flows

Features
  • 1/2.3" 9MP UHD Sensor
  • 4K/UHD/HD: 3840 x 2160p (UHD), 1920 x 1080p (HD), 1920 x 1080i (HD) and 1280 x 720p
  • High Speed: 59.94, 50, 29.97, 25fps (NTSC/PAL)
  • Clear Image Zoom: 1.67x (4K:20x), 2.0x (1080p 24x), 12x optical - 12x digital
  • Wide Angle-of-View @ 3.9 mm - 74° Panoramic AOV
  • Pan Range: -170° ~ +170°, Tilt Range: -30° ~ +90°
  • 128 preset locations with variable transition speeds
  • Quiet, smooth, durable PAN-TILT-ZOOM motor allows for quality transitions

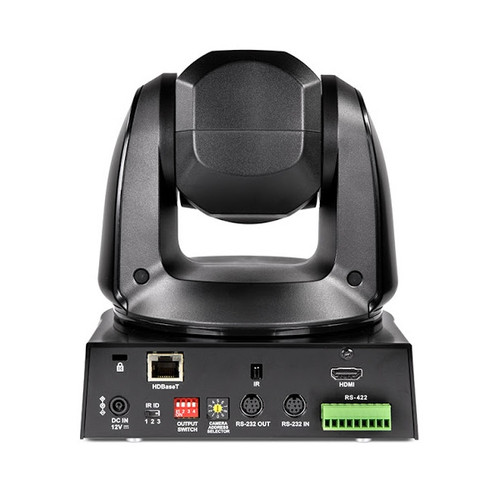

  • HDBaseT (uncompressed), HDMI outputs
  • RS422/RS232 Remote Control Interface at High Comm Speeds
  • Mountable via table, wall or ceiling
    • Ceiling mount included in box; wall mounts CV6XX-WM (Black) or CV6XX-WMW (White) sold separately
  • Compatible with integrated video conferencing systems (VISCA/PELCO)
  • PoE (IEEE802.3af) over HDBaseT (Cat5e/6) - one Cat5e/6 hookup to camera
  • Tally Light on front camera pane

Specifications
Optical Zoom 12x
Focal Length f = 3.9mm~46.8mm
Horizontal Viewing Angle 74° at widest
Aperture F1.8~F2.0
Focus System Auto, Manual
Dimensions (H x W x D) 7.35" (186.8 mm) x 6.85" (174 mm) x 6.72" (170.8 mm)
Weight 4.4 lbs (2 kg)

DOCUMENTS

In The Box
  • (1) CV612HT-4K Camera
  • (1) Power Adapter and Power Cord
  • (1) Remote Control
  • (1) RS-422 Connector
  • (1) Metal Plate A
  • (1) Metal Plate B
  • (7) M3 Screws
