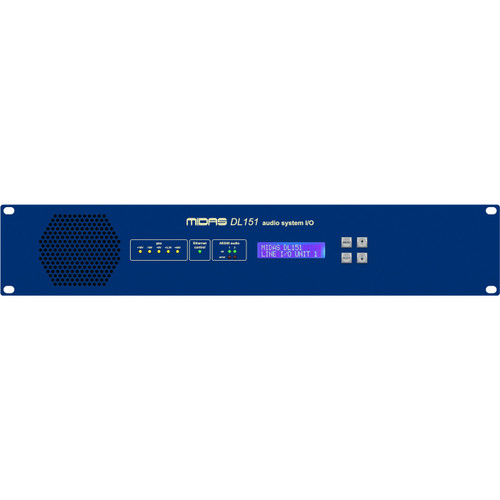

The MIDAS DL151 is a 2U 19" fixed-configuration rack I/O unit with 24 mic/line level inputs and delivers legendary MIDAS sound quality utilizing our time-tested and road-proven technologies. Featuring award-winning MIDAS microphone preamplifiers with 2.5 dB analog gain steps and two AES50 network ports providing dual redundancy, the DL151 is the ideal partner to all MIDAS PRO and M32 Series digital consoles, enabling a digital snake connection from Front of House to stage.

Description

DL151 is a 2U 19" fixed-configuration rack I/O unit with 24 mic/line level inputs and delivers legendary MIDAS sound quality utilizing our time-tested and road-proven technologies. Featuring award-winning MIDAS microphone preamplifiers with 2.5 dB analog gain steps and two AES50 network ports providing dual redundancy, the DL151 is the ideal partner to all MIDAS PRO and M32 Series digital consoles, enabling a digital snake connection from Front of House to stage.

Features

24 award-winning MIDAS microphone preamplifiers with switchable +48 V phantom power
96 kHz sample rate operation
Dual AES50 Neutrik etherCON network ports with LED status indicators
All settings programmable from either the front panel controls or console
Remote operation up to 100 m via CAT5 /5e cable
PSU status indicator LEDs and configuration LCD display on front panel
Rugged 2U rackmount chassis for durability in portable applications
Auto-ranging universal switch-mode power supply

Specifications

External Connections
Primary Analogue Inputs	Mic / Line inputs - balanced XLR connectors - 10 kΩ load
Primary Analogue Outputs	Main Outputs - balanced XLR connectors - 50 Ω source
Primary Digital Inputs	XLR connectors - 110R
AES50 Connections	Neutrik Ethercon with status indication
Diagnostic Connection	9 W female ‘D’-type connector
Power Connections	IEC mains inlet - 100-240 V AC~50-60 Hz ±10%
Frequency Response	20 Hz - 20 kHz
Digital Inputs
Connector	AES3 (two channels of digital audio) on 3-pin XLR
Sample rates	Accepts any frequency between 32 k to 96 k
Dimensions (H x W x D)	3.46 (88.1 mm) x 19 (482.6 mm) x 14.96 (380 mm)
Weight	11.02 lbs (5 kg)
