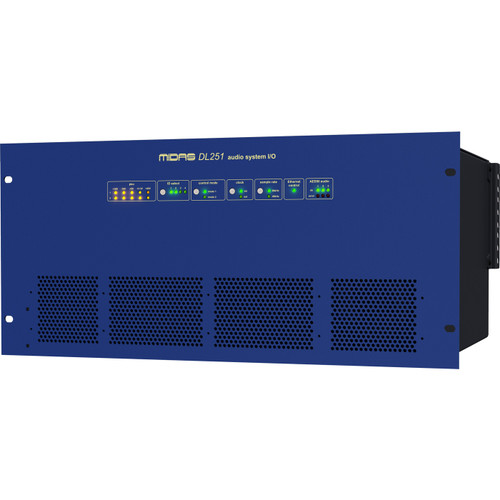

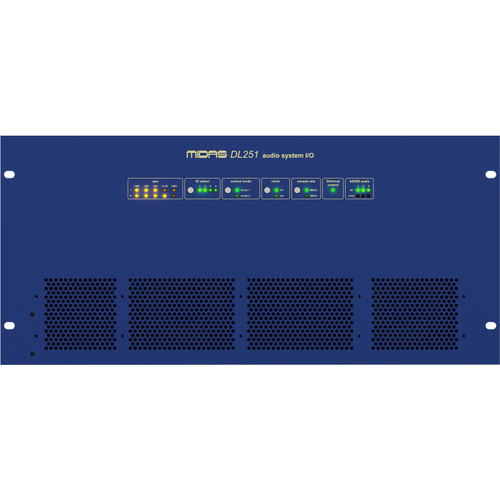

MIDAS DL251 Stagebox with 48 MIDAS Mic Preamps, 48-Inputs and 16-Outputs
MIDAS DL251 Stagebox with 48 MIDAS Mic Preamps, 48-Inputs and 16-Outputs
MIDAS DL251 Stagebox with 48 MIDAS Mic Preamps, 48-Inputs and 16-Outputs
MIDAS DL251 Stagebox with 48 MIDAS Mic Preamps, 48-Inputs and 16-Outputs

By MIDAS

MIDAS DL251 Stagebox with 48 MIDAS Mic Preamps, 48-Inputs and 16-Outputs

Write a Review
Part #:
DL251-UL
Model #:
DL251
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The MIDAS DL251 is a 5U 19" fixed-configuration rack I/O unit with 48 mic/line level inputs and 16 line level outputs and delivers legendary MIDAS sound quality utilizing our time-tested and road-proven technologies. Featuring award-winning MIDAS microphone preamplifiers with 2.5 dB analog gain steps and three AES50 network ports providing N+1 redundancy, plus an Ethernet control port and a MIDI Interface (In, Out, Thru), the DL251 is the ideal partner to the MIDAS M Series and PRO Series digital consoles, enabling a digital snake connection from Front of House to stage.

Description

DL251 is a 5U 19" fixed-configuration rack I/O unit with 48 mic/line level inputs and 16 line level outputs and delivers legendary MIDAS sound quality utilizing our time-tested and road-proven technologies. Featuring award-winning MIDAS microphone preamplifiers with 2.5 dB analogue gain steps and three AES50 network ports providing N+1 redundancy, plus an Ethernet control port and a MIDI Interface (In, Out, Thru), the DL251 is the ideal partner to the MIDAS M Series and PRO Series digital consoles, enabling a digital snake connection from Front of House to stage.

Features
  • 48 award-winning MIDAS microphone preamplifiers with switchable +48 V phantom power
  • 16 actively balanced low impedance line level outputs
  • Selectable 96 kHz or 48 kHz sample rate operation
  • Remote operation up to 100 m via CAT5/5e cable
  • All settings programmable from front panel controls or console
  • PSU status indicator LEDs and confi guration switches on front panel
  • 3 AES50 network ports for redundant connections
  • MIDI In, Out and Thru connectors
  • Features Neutrik etherCON AES50 network ports
  • Rugged 5U rackmount chassis for durability in portable applications
  • Dual redundant auto-ranging universal switch-mode power supplies

Specifications
1 x 5U rack I/O box houses 48 x (XLR) mic/line inputs
16 x (XLR) line outputs
Resilience N + 1 cable redundancy and
dual redundant PSUs
Sampling rate 48 kHz, 96 kHz
Dynamic range 107 dB, 22 Hz to 22 kHz (no pre-emphasis)
Maximum gain 45 dB
Crosstalk @ 1 kHz -100 dB physically adjacent input channels
Crosstalk @ 10 kHz -90 dB physically adjacent input channels
Dimensions 5U x 414 mm deep
Net weight 10 kg
Shipping weight 18 kg
Power requirements 100 to 240 VAC, 50 to 60 Hz
Power consumption at 115 V 1 PSU: 85 W, 85 VA
2 PSU: 110 W, 110 VA
Power consumption at 230 V 1 PSU: 90 W, 100 VA
2 PSU: 110 W, 135 VA
Operating temperature range +5°C to +4 0°C
Storage temperature range -20°C to +60°C
I/O box inputs
Connector 3-pin XLR balanced
A/D converter 24-bit, 96 kHz and 128 times oversampling
Box analogue outputs
Connector 3-pin XLR balanced
D/A converter 24-bit, 96 kHz and 128 times oversampling
MIDI connector In, Out and Thru on 5-pin DIN (for use with Midas consoles only)
48 kHz I/O digital system inputs and outputs
System connector (1) 1 x AES50 (48 channels of bidirectional digital audio) on etherCON XLR
Redundant connector (2) 1 x AES50 (48 channels of bidirectional digital audio) on etherCON XLR providing redundant back-up
Additional connector (3) Not used
96 kHz I/O digital system inputs and outputs
System connector (1 and 2) 2 x AES50 (24 channels of bidirectional digital audio per connection) on etherCON XLR
N+1 connector (3) 1 x AES50 (24 channels of bidirectional digital audio on etherCON XLR providing redundant back-up
Analogue input characteristics
Input I/O Box
Load Z 10k
Gain -2.5 dB to +45 dB
Max. level +24 dBu
Connector XLR
Analogue output characteristics
Output I/O Box
Source Z 50 ohms
Gain 0 dB
Max. level +21 dBu
Connector XLR
48 kHz digital I/O characteristics
Type AES50
Channels 48
Data length 24-bit
I/O Bidirectional
Description Notes Conforms to AES50-2011
Connector etherCON XLR
96 kHz digital I/O characteristics
Type AES50
Channels 24
Data length 24-bit
I/O Bidirectional
Description Notes Conforms to AES50-2011
Connector etherCON XLR
