MIDAS DL152 Stagebox with 24 Outputs and Dual-Redundant AES50 Networking

By MIDAS

MIDAS DL152 Stagebox with 24 Outputs and Dual-Redundant AES50 Networking

Name: MIDAS DL152 Stagebox with 24 Outputs and Dual-Redundant AES50 Networking
Brand: MIDAS
SKU: MIDAS-DL152-UL
Price: 2199 USD
Availability: InStock

Write a Review

Part #:

DL152-UL

Model #:

DL152

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

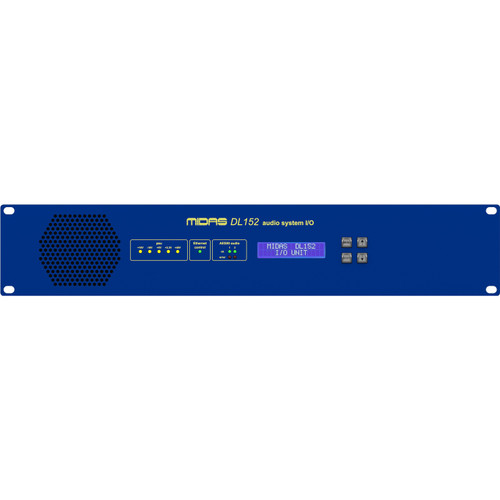

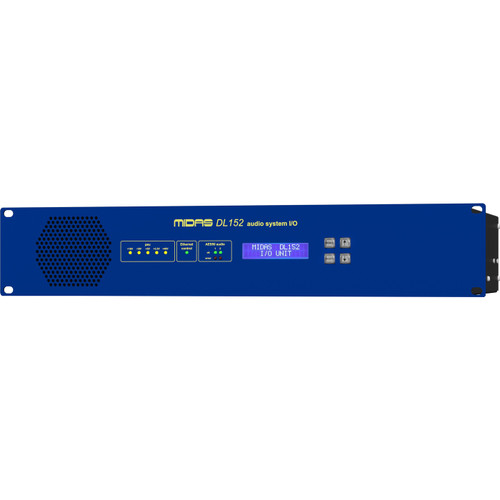

The MIDAS DL152 is a 2U 19" fixed-configuration rack I/O unit with 24 line level outputs and delivers legendary MIDAS sound quality utilizing their time-tested and road-proven technologies. Featuring two AES50 network ports providing dual redundancy, the DL152 is the ideal partner to all MIDAS PRO and M32 Series digital consoles, enabling a digital snake connection from Front of House to stage.

Description

DL152 is a 2U 19" fixed-configuration rack I/O unit with 24 line level outputs and delivers legendary MIDAS sound quality utilizing their time-tested and road-proven technologies. Featuring two AES50 network ports providing dual redundancy, the DL152 is the ideal partner to all MIDAS PRO and M32 Series digital consoles, enabling a digital snake connection from Front of House to stage.

Features

24 electronically balanced low impedance line level outputs
Remote operation up to 100 m via CAT5/5e cable
Selectable 96 kHz or 48 kHz sample rate operation
All settings programmable from front panel controls or console
PSU status indicator LEDs and configuration LCD display on front panel
Supports dual redundant AES50 networks
Features Neutrik etherCON* AES50 network ports
Rugged 2U rackmount chassis for durability in portable applications
Auto-ranging universal switch-mode power supply

Specifications

Sample Rate	48 kHz, 96 kHz
Dynamic Range	>107 dB unweighted (20 Hz - 20 kHz)
Maximum Output Level	+21 dBu into 600 ohms
Output Noise (Unity Gain)	-86 dBu
Frequency Response	±0.5 dB (20 Hz - 20 kHz, relative to 1 kHz)
THD+N (Unity Gain)
Crosstalk @ 1 kHz	d B
Analogue Outputs	24
Type	Line Level
Connector	3-pin XLR Balanced
Network Connections	2
Connector	Neutrik etherCON with status LEDs
Dimensions (H x W x D)	3.5" (88.9 mm) x 19" (482.6 mm) x 16.4" (416.56 mm)
Weight	15.2 lbs (6.9 kg)
