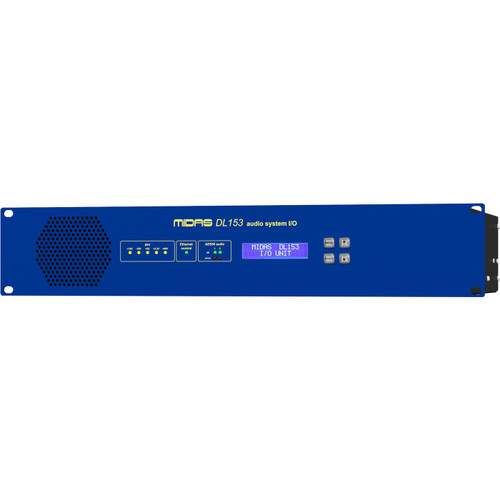

The MIDAS DL153 is a 2U 19" fixed-configuration rack I/O unit with 16 mic/line level inputs and 8 line level outputs and delivers legendary MIDAS sound quality utilizing our time-tested and road-proven technologies. Featuring award-winning MIDAS microphone preamplifiers with 2.5 dB analog gain steps and two AES50 network ports providing dual redundancy, the DL153 is the ideal partner to all MIDAS PRO and M32 Series digital consoles, enabling a digital snake connection from Front of House to stage.

Description

DL153 is a 2U 19" fixed-configuration rack I/O unit with 16 mic/line level inputs and 8 line level outputs and delivers legendary MIDAS sound quality utilizing our time-tested and road-proven technologies. Featuring award-winning MIDAS microphone preamplifiers with 2.5 dB analog gain steps and two AES50 network ports providing dual redundancy, the DL153 is the ideal partner to all MIDAS PRO and M32 Series digital consoles, enabling a digital snake connection from Front of House to stage.

Features
  • 16 award-winning MIDAS microphone preamplifiers with switchable +48 V phantom power
  • 8 electronically balanced low impedance line level outputs
  • Remote operation up to 100 m via CAT5/5e cable
  • Selectable 96 kHz or 48 kHz sample rate operation
  • All settings programmable from front panel controls or console
  • PSU status indicator LEDs and configuration LCD display on front panel
  • Supports dual redundant AES50 networks
  • Features Neutrik etherCON AES50 network ports
  • Rugged 2U rackmount chassis for durability in portable applications
  • Auto-ranging universal switch-mode power supply

Specifications
Sample Rate 48 kHz, 96 kHz
Dynamic Range >107 dB unweighted (20 Hz - 20 kHz)
Maximum Output Level +21 dBu into 600 ohms
Output Noise (Unity Gain) -86 dBu
Frequency Response ±0.5 dB (20 Hz - 20 kHz, relative to 1 kHz)
THD+N (Unity Gain)
Crosstalk @ 1 kHz
Analogue Inputs 16
Type Mic/Line Level
Connector 3-pin XLR balanced
Analogue Outputs 8
Type Line Level
Connector 3-pin XLR Balanced
Network Connections 2
Connector Neutrik etherCON with status LEDs
Ethernet Control Port 1
Dimensions (H x W x D) 3.5" (88.9 mm) x 19" (482.6 mm) x 16.4" (416.56 mm)
Weight 14.7 lbs (6.66 kg)
