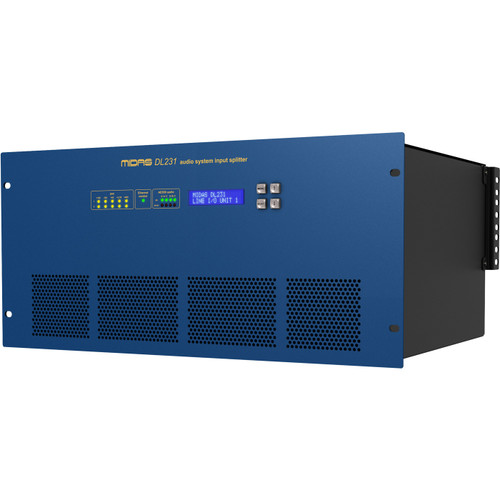

MIDAS DL231 24-Input 24-Output Active Microphone Splitter with Microphone Input Preamplifiers
MIDAS DL231 24-Input 24-Output Active Microphone Splitter with Microphone Input Preamplifiers
MIDAS DL231 24-Input 24-Output Active Microphone Splitter with Microphone Input Preamplifiers
MIDAS DL231 24-Input 24-Output Active Microphone Splitter with Microphone Input Preamplifiers

By MIDAS

MIDAS DL231 24-Input 24-Output Active Microphone Splitter with Microphone Input Preamplifiers

Write a Review
Part #:
DL231-UL
Model #:
DL231
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

With today's tech-savvy concertgoers demanding more and more from the professional sound engineer, the need to increase flexibility and functionality have never been greater. That's why the MIDAS Research and Development team have expanded upon the existing Microphone Splitter format to bring you the DL231.

Description

With today's tech-savvy concertgoers demanding more and more from the professional sound engineer, the need to increase flexibility and functionality have never been greater. That's why the MIDAS Research and Development team have expanded upon the existing Microphone Splitter format to bring you the DL231.

Features
  • 2 award-winning MIDAS microphone preamplifiers per input with switchable +48 V phantom power
  • 2 dual redundant AES50 network ports with independent phase-locked loop synchronisation
  • 24 electronically balanced output channels can be sourced from microphone preamplifiers or AES50 ports
  • Remote operation up to 100 m via CAT5/5e cable
  • Selectable 96 kHz or 48 kHz sample rate operation
  • All settings programmable from front panel controls or console

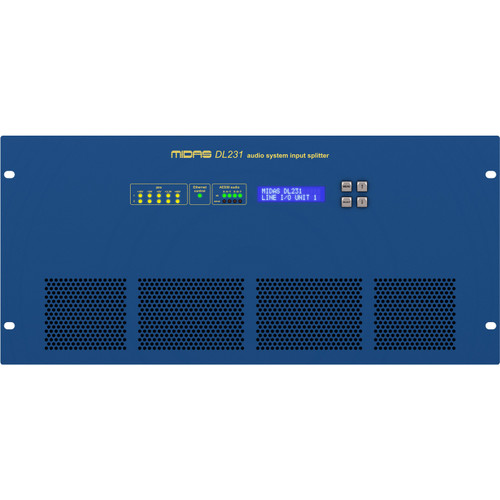

  • PSU status indicator LEDs and configuration LCD display on front panel
  • MIDI In, Out and Thru connectors
  • Features Neutrik etherCON AES50 network ports
  • Rugged 5U rackmount chassis for durability in portable applications
  • Dual redundant auto-ranging universal switch-mode power supplies

Specifications
XLR Connections
1 x 5U rack I/O Box Houses 24 x (XLR) mic/line inputs (48 mic/line amps)
24 x (XLR) line outputs
Sampling Frequency 48 kHz/96 kHz
Dynamic Range @ 1 kHz 22 Hz to 22 kHz (at unity gain): > 107 dB
Maximum Gain 45 dB
Crosstalk @ 1 kHZ -90 dB physically adjacent input channels
Crosstalk @ 10k HZ -90 dB physically adjacent input channels
Power Requirements 100 V to 240 V AC ±10%, 50 to 60 Hz
Power Consumption
Operating Temperature Range +5° C to +40° C
Storage Temperature Range -20° C to +60° C
Dimensions (H x W x D) 8.7" (220.98 mm) x 16.3" (414.02 mm) x 19" (482.60 mm)
Weight 33.06 (12 kg)
