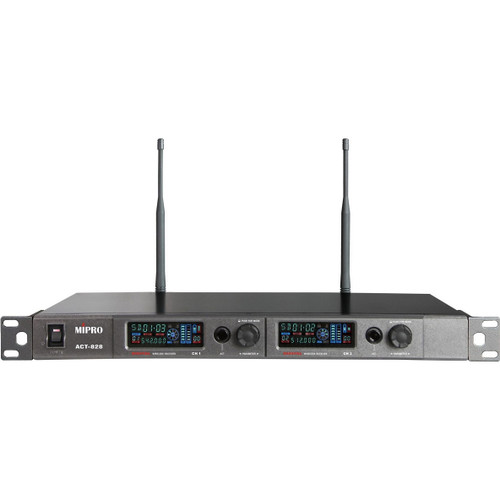

MIPRO ACT-828 UHF Dual Channel Wideband Digital Wireless Receiver

MIPRO ACT-828 UHF Dual Channel Wideband Digital Wireless Receiver

Name: MIPRO ACT-828 UHF Dual Channel Wideband Digital Wireless Receiver
Brand: MIPRO
SKU: AVLEX-MIPRO-ACT-828
Price: 1336.94 USD
Availability: InStock

Write a Review

Part #:

ACT-828

Model #:

ACT-828

Current Stock:

Availability: Contact Us for Availability

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The MIPRO ACT-828 dual-channel wideband digital wireless receiver delivers outstanding features at an affordable price. With an expanded 64 MHz bandwidth ensuring optimal flexibility, it allows more interference-free compatible channels to select from.

Description

MIPRO ACT-828 Encryption-Capable UHF Digital Wireless Receiver

The MIPRO ACT-828 dual-channel wideband digital wireless receiver delivers outstanding features at an affordable price. An expanded 64 MHz bandwidth ensures optimal flexibility, allowing more interference-free compatible channels to select from. The ACT-828 features full-color Vacuum Fluorescent Display for clear viewing and one-touch ACT setup. A single rotary control easily controls all system functions. MIPRO's ACT systems are built to handle tough conditions, delivering superb RF reliability and transparent audio performance in a wide variety of professional venues and applications, enabling our customers to specify and install our systems with complete confidence.

Features

EIA standard 19", 1RU
Full-color VFD display for clear viewing of all parameters
Quick and easy system setup via a single rotary control
One-touch AutoScan and ACT™ channel setup
Enhanced RF circuitry provides reliable RF and transparent audio performance
64MHz wide bandwidth allows more interference-free channels to be selected
Digitally-processed RF circuitry eliminates compander noise
Second generation DSP technology enhances signal stability
Proprietary A/D Converter provides increased dynamic range with low T.H.D and latency
SPDIF interface ensures stable S/N ratio even over long distances
Proprietary 256-bit encryption with easily changed encryption keys
10 built-in SmartEQ™ presets and user-defined equalization
Optional MIPRO RCS2.NET PC software for set-up, control and monitoring
100m (300ft) operating range (line of sight)
100% Made in Taiwan
ISO 9001 certified

Specifications

Chassis / Channel	EIA Standard 19" 1U, Dual
Frequency Range	UHF 480 - 960 MHz (country-dependent)
Bandwidth	64 MHz
Channel Grid	25 kHz
Channel Setup	Scan & ACT sync
Audio Sampling	24-bit / 44.1 kHz Rate
Audio Frequency Response	20 Hz - 20 kHz
Encryption	256 bits
Audio Compression	2nd generation DSP inertial coding
Latency	2.7 ms
S/N Ratio (Analog Output)	> 115 dB(A)
T.H.D.	< 0.03% @ 1 kHz
Sensitivity	12 dBµV at S/N ≒ 118 dBA (D)
Image & Spurious Rejection	> 85 dB
Receiving Mode	Digital Diversity
Audio Output	2 x Balanced XLR 2 x Unbalanced 6.3 mm (1/4")
Analog Output Switch	2 x Mic / Line
Audio Interface	AES digital output, analog transmission
Digital Equalizer	10 built-in SmartEQ™ and 10 built-in digital anti-feedback SmartEQ™
Monitor Output	Headphone Monitor Connector
Dante Interface	Optional
PC Interface	USB or RS-232 interface. Proprietary MIPRO ACT-BUS
Display	Full-color VFD
Battery Meter	Transmitter battery status
Antenna Input	2 x 50Ω TNC Female Connector
Power Supply	External adaptor
Operating Temperature	-10 - +60° C
Dimensions (H x W x D)	1.7" (44 mm) x 16.5" (420 mm) x 9.6" (245 mm)
Weight	4.8 lbs (2.2 kg)
