MIPRO ACT-2402/ACT-24H&T 2.4GHz Dual-Channel Handheld and Bodypack Wireless System

MIPRO's Digital Diversity ACT-2400 Series wireless system addresses the industry's 2.4GHz issues of range, signal stability, and channel density. The 1/2U, single- and dual-channel digital receivers operate in the 2.4 GHz ISM band using stable 4-frequency FSK modulation circuitry to provide strong RF signal stability and extended range. It utilizes dual-tuner true digital diversity reception and delivers 12 compatible channel operations without signal dropout.

The ACT-24HC handheld transmitter features a condenser capsule with off-axis rejection and low handling noise. The ACT-24TC miniature bodypack offers selectable impedance for mic or guitar/line inputs, a mute switch with status indicator, and a compact design. Both transmitters deliver over 10 hours of use on a 4-hour charge.

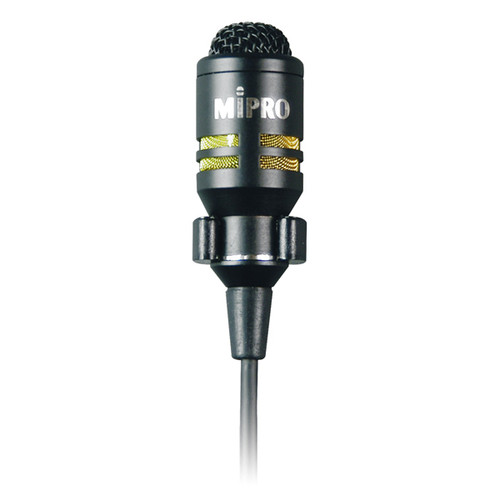

The ACT-2402/ACT-24H&T system includes one ACT-2402 dual-channel receiver, one ACT-24HC handheld transmitter, one ACT-24TC bodypack transmitter, and an MU-54 cardioid lapel microphone.

The MP-80 charging station is not included and must be purchased separately.

Features

Features

Receiver:

Operates in the 2.4GHz ISM band using stable digital FSK modulation
Adaptive tracking algorithm avoids interference from 2.4GHz Wi-Fi signals
4-frequency spread spectrum for reliable performance
Dual tuner true digital diversity reception with up to 100 meters (330 ft.) range
Supports 12 simultaneous compatible channels
24-bit / 44.1 kHz digital audio sampling
Lo-Cut and Flat EQ options
Adjustable AF gain and RF output power
Sturdy metal chassis with front-mounted antennas
Optional rack-mount hardware available

ACT-24HC Handheld Transmitter:

3-stage LED indicator for battery status
Durable grille minimizes handling noise and pop sounds
Condenser cardioid capsule ensures clarity and off-axis rejection
Suspension-mounted capsule design reduces handling noise
Locking on/off switch and one-touch ACT sync
Rechargeable lithium battery provides 10+ hours of use on a 4-hour charge
Fast charge: 25 minutes gives up to 1 hour of use
Battery rated for up to 600 charge cycles

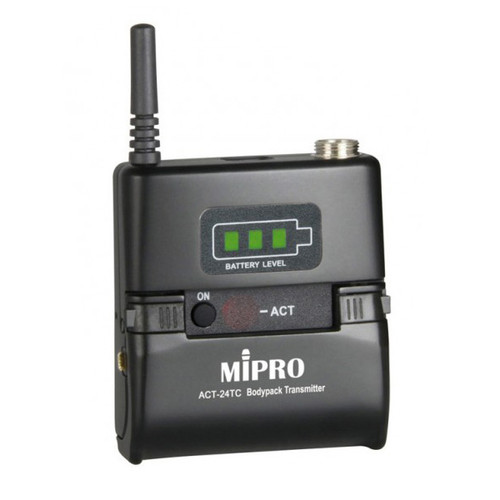

ACT-24TC Bodypack Transmitter:

Compact, lightweight plastic housing
LED indicators for battery and AF/mute status
Compatible with optional MJ-70 remote mute switch
Selectable input impedance for mic or instrument use
Mini-XLR input with locking connector for lav, headset, or guitar cables
Rechargeable lithium battery delivers over 10 hours on a 4-hour charge
Fast charge provides 1 hour of operation in 25 minutes
Battery rated for up to 600 charge cycles

Specification

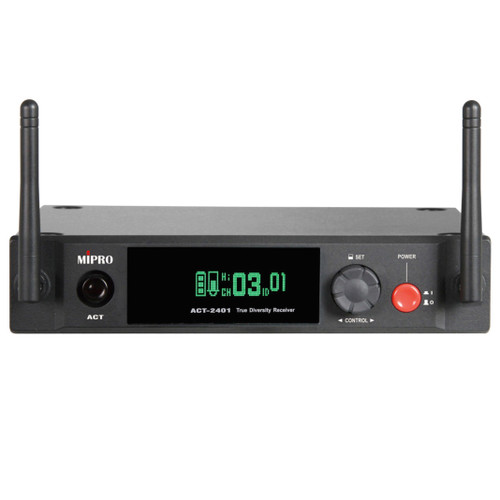

Receiver
Chassis	EIA Standard 19" 1/2U
Display Graphic	OLED
Frequency Range	2.4GHz ISM band (2.4 - 2.4835GHz)
Preset Frequency	12
Frequency-Hopping	Each channel has 4 preset hopping frequencies
Receiving Mode	Dual-tuner Digital Diversity
Audio Sampling	24-bit / 44.1 kHz
Sensitivity	-95 dBm
S/N Ratio	> 115 dB(A)
T.H.D.	0.1 % @ 1 kHz
Audio Frequency Response	20 Hz - 20 kHz (-2 dB)
Output Connectors	Balanced XLR & Unbalanced 6.3 mm (1/4")
Audio Output Adjustment	0 dB (standard), -10 - +20 dB, adjustable range
Latency	< 4.0 ms
Antenna	2 × 50 Ω fixed antenna
Power Supply	External AC Power Supply
Power Consumption	2.4W
Dimensions	8.3" (210 mm) x 1.7" (44 mm) x 7.1" (180 mm)
Net Weight	Approx. 1.8 lbs (0.8 kg)
ACT-24HC Transmitter
Frequency Range	2.4GHz ISM band (2.4 - 2.4835GHz)
Channel Set-Up	ACT Sync
RF Output Power	2 mW / 10 mW switchable (country dependent)
Transmitting Mode	Frequency hopping
Max. Audio Input	6.5 dBV
Battery Meter	4-level green / red LED display
Battery Type	ICR 18500 rechargeable lithium battery
Current Consumption	Approx. 138 mA
Operating Time	25-minute fast charge provides up to 1 hour operation. Minimum 10 hours of operation per 4-hour full charge (depending on the battery quality)
Dimensions (L x Dia)	9.8" (248 mm) x 2" (51 mm)
Weight	255 g (9 oz)
ACT-24TC Transmitter
Frequency Range	2.4GHz ISM band (2.4 - 2.4835GHz)
Channel Set-Up	ACT Sync
RF Output Power	2 mW / 10 mW switchable (country dependent)
Transmitting Mode	Frequency hopping
Max. Audio Input	6.5 dBV
Impedance	1.0MΩ
Mute Connector	Optional MJ-70 remote mute switch
Battery Meter	4-level green / red LED display
Battery Type	1 ICR-18500 rechargeable lithium battery
Current Consumption	Approx. 138 mA
Operating Time	25-minute fast charge provides up to 1 hour operation. Minimum 10 hours of operation per 4-hour full charge (depending on the battery quality)
Dimensions (H x W x D)	2.8" (70 mm) x 2.5" (63 mm) x 1" (25 mm)
Net Weight	66 g (2.3 oz)
