Inside the Design

This multi-zone restaurant sound system for up to 7,000 sq ft and 6 zones is designed to cover the lobby, dining areas, bar, restrooms, kitchen and back of house, as well as your outdoor area. Provide superb background or foreground music as well as crystal clear paging. Each zone can be addressed for volume as well as source selection with the convenient wall panels. Additionally, a master remote is included for complete control of the entire venue from a convenient 7" touchscreen display panel. For an optional paging mic, we recommend the Rane Zone Pager tabletop paging station for ease in making announcements to any of the zones specifically, or collectively. This sound system under $10,000 allows you to play background or foreground music via any Bluetooth-enabled device, great for large restaurants, sports bars and other entertainment venues.

Below is an example of how this custom multizone sound system can be set up but can be adjusted to meet your specific needs:

About the System Components

This Pro Acoustics designed sound system includes nine Pure Resonance Audio SD5 SuperDispersion omnidirectional drop tile ceiling speaker arrays, two Pure Resonance Audio SD4 SuperDispersion ceiling speaker arrays, four Pure Resonance Audio C3 3" micro ceiling speakers with Easy-Mounting Rings, a SoundTube SM82-EZ-II 8" surface mount outdoor speaker, SoundTube CM1001D-T 10" in-ceiling subwoofer, a Rane Zone Power Eight 8-channel 70V/100V amplifier, a Rane Zonetech 6-channel 6-zone Bluetooth-enabled DSP processor, Rane DR6 digital touch screen remote control, six Rane DRZH level control and 7-position selectors, six 3' patch cables and 1000' of speaker wire.

Some products in this sound system design are now discontinued. Please call for replacements.
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Pure Resonance Audio SD5 SuperDispersion Omnidirectional Drop Tile Ceiling Speaker Array:

• Omnidirectional coverage pattern provides 360° x 180° of consistent frequency response
• Powerful proprietary tweeter design with a lower crossover point improves vocal performance
• Wave guided housing directs sound where it needs to go
• Ported enclosure is acoustically optimized and tuned with bass-reflex for turbulence reduction
• Low profile metal back-box comes with built-in safety suspension points
• Thumbwheel selectable 8-ohm nominal and 70-volt inputs are compatible with any commercial or stereo amplifier
• Takes just minutes to install, simply remove one ceiling tile and drop the SD5 into any standard drop-ceiling grid
• Safety carabiner kit includes braided steel cables and infinitely adjustable SpeedClamp™ fasteners for secure and fast easy-install

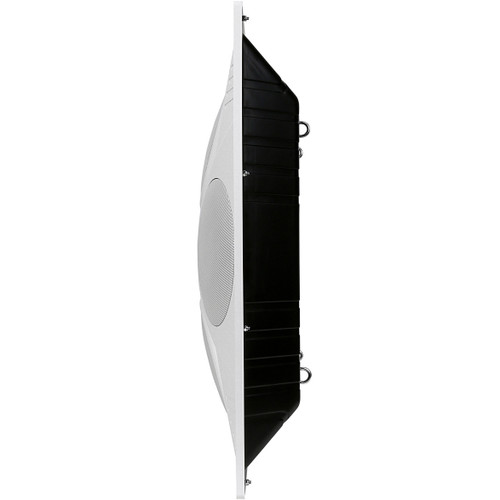

Pure Resonance Audio SD4 SuperDispersion Ceiling Speaker Array:

• SuperDispersion® 360° x 180° omnidirectional coverage
• Engineered for voice, paging and music applications
• Infinite-baffle in-ceiling speaker drops into standard 2x2 ceiling tile openings
• Powerful – 160 Watts at 8 Ohms, 64 Watts at 70 Volts
• 4 - 6.5" High compliance aluminum woofers with ported bass response and high-frequency dome tweeters
• Uniquely designed fire retardant ABS housing may be painted to match any décor
• Impedance: 8 ohms nominal with built-in 70 Volts (4, 8, 16, 32, 64 watt taps), easily adjustable by rotating switch
• Metal Backbox that is acoustically engineered and sealed for maximum sonic performance
• Safety cable kit included



Pure Resonance Audio C3 3" Micro Ceiling Speakers with Easy-Mounting Ring:

• Compact and lightweight
• Smallest possible footprint while maintaining powerful quality sound
• Intelligent, stylish design that seamlessly blends into the ceiling
• Power tap transformer switch for selectable 8 ohm or 70V/100V operation for commercial applications
• Tap settings:
• 70V: 8 ohm, 1.5W, 3W, 5W
• 100V: 8 ohm, 3W, 6W, 10W
• Quick & easy installation with threaded mounting ring
• Perfect for background music in offices, retail stores, restaurants, hotels, foyers, and auxiliary spaces



SoundTube CM1001D-T 10" In-Ceiling Subwoofer:

• One 10" (254 mm) polypropylene cone with a butyl rubber surround on a reinforced ABS baffle
• Extra-large SoundTube-specific 12.9 L steel DeepCan™ (11.77" depth) for quality bass response
• Baffle-mounted flared and tuned port for maximum efficiency and frequency response
• High-output (114 dB) and maximum efficiency with an accentuated 70 Hz peak to maximize listener's low-frequency experience
• Includes an easy-access 5-position tap switch for 25/70.7/100V and 8 Ohm settings allowing for easy ordering, stocking, and installation
• Incorporates a powder-coated steel grille for lasting durability plus a tool-free seismic strap for easy installation
• UL 1480 & 2043, cUL, CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved
• Rapid-installation blind-mount, fixed wing mounting mechanism with constant tension design affixing to ceiling thicknesses ranging from 0.25" (6.4 mm) to 1.69" (42.9 mm)
• Included accessories: Color-coded (purple) tile bridge, grille, UL-rated cover plate, paint shield, and restraint cable
• Optional accessories: Color-coded (purple) pre-construction bracket (AC-CM8-PCB), junction box (AC-CM-JBOX)



SoundTube SM82-EZ-II 8" 2-Way Surface Mount Outdoor Speaker:

• Cost-conscious, weather-resistant, surface-mount loudspeaker
• BroadBeam Ring technology for midrange clarity and ultra-wide off-axis performance up to 10 kHz for maximum coverage area per speaker
• One 8" (203 mm) polypropylene woofer and one 1.0 inch (25.4 mm) soft dome tweeter
• IP65 rated (when included port plug is installed) for high dust- and water-resistance
• 87.0 dB average sensitivity offers high output capabilities and reduced amplification costs
• Easy access, six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position
• Aluminum grille with powder-coat finish
• Vertical and horizontal mounting offer precision aiming for indoor and outdoor applications.
• UL 1480 (UEAY) and EN54-24 planned
• High-quality black or white paint finish
• Included Accessories: Safety cable, wall mount bracket, port plug, allen wrench, and watertight strain-relief bushing



Rane Commercial Zone Power Eight 8-Channel 70V/100V Amplifier:

• 8-channel Class-D amplifier designed for 70V/100V applications
• 150W per channel
• Euroblock inputs and outputs
• Separate rear panel gain controls for each channel
• Signal, clipping and thermal interruption indicators on front panel
• Open-circuit, short-circuit and thermal protection



Rane Commercial Zonetech 6-Channel 6-Zone Bluetooth-Enabled DSP Processor:

• Commercial processor for multi-zone, multi-source, remote-controlled applications
• Embedded Halogen software requires no programming
• Web server provides configuration and control with secure multi-level access
• High-resolution color LCD display for simplified operation
• Front display screen and rotary push knob allow control of all Zonetech parameters
• Stream media using Bluetooth®, AirPlay®, UPnP and DLNA®
• (4) unbalanced RCA stereo inputs
• (2) balanced mic/line/line-plus inputs
• (6) balanced zone outputs
• Stereo/Mono zone output with low-pass and high-pass modes
• Master remote port for complete control using a Rane DR6 touchscreen
• Pager port connects an optional Rane RAD device to provide analog audio and logic inputs
• (6) Zone remote ports for source and volume control
• LAN port for computer or wireless access to web controls
• Logic input available for muting all outputs

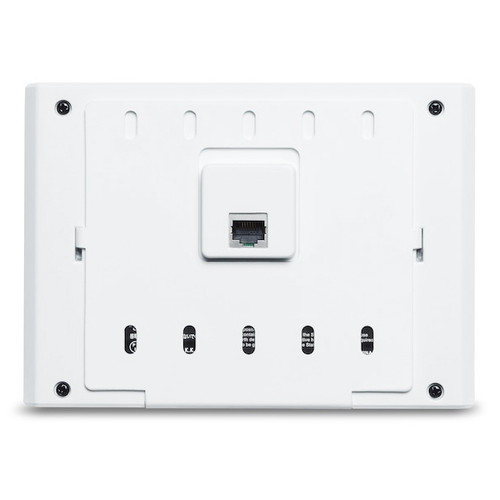

Rane Commercial DR6 Digital Touch Screen Remote Control for Zonetech Processor:

• Fully customizable 7" full-color touch screen LCD display
• Supports multiple pages or tabs
• Supports any set of levels, toggles, selectors and/or commands
• Allows user to use custom background images and logos in full-color
• Wall-mounted bracket included
• Midspan power injector connects to CAT 5e or better between the DR6 and any HAL

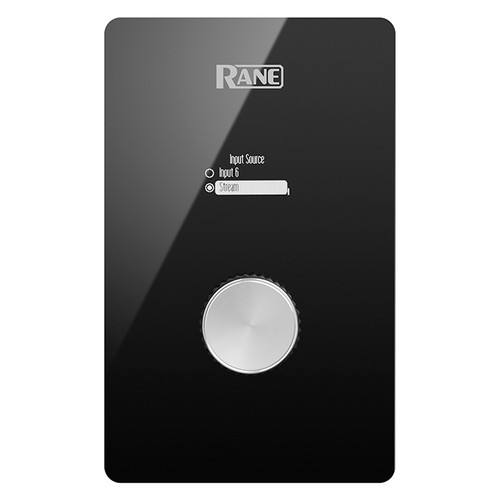

Rane Commercial DRZH Level Control and 7-Position Selector for Zonetech Commercial Processor:

• Zonetech Remote Audio Device with Audio and Logic I/O
• Level Control
• Source Selection – select Source by turning knob
• Once Source is selected, push knob for Level control
• Black glass-like finish
• OLED display

• (9) Pure Resonance Audio SD5 SuperDispersion Omnidirectional Drop Tile Ceiling Speaker Arrays
• (2) Pure Resonance Audio SD4 SuperDispersion Ceiling Speaker Arrays
• (4) Pure Resonance Audio C3 3" Micro Ceiling Speakers with Easy-Mounting Rings
• (1) SoundTube CM1001D-T 10" In-Ceiling Subwoofer
• (1) SoundTube SM82-EZ-II 8" 2-Way Surface Mount Outdoor Speaker
• (1) Rane Commercial Zone Power Eight 8-Channel 70V/100V Amplifier
• (1) Rane Commercial Zonetech 6-Channel 6-Zone Bluetooth-Enabled DSP Processor
• (1) Rane Commercial DR6 Digital Touch Screen Remote Control
• (6) Rane Commercial DRZH Level Control and 7-Position Selectors

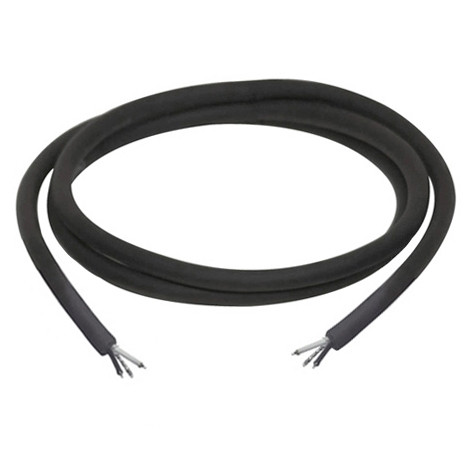

• (6) CBI MLN-3-Prep-Prep Bare Wire to Prep Bare Patch Cables - 3ft
• (1000') West Penn 25225B 16/2 Plenum Speaker Wire
