Inside the Design
This professional multizone restaurant sound system is built to provide high-quality audio coverage for areas up to 3600 sq ft. Featuring a versatile combination of eight JBL SLP14/T 4" sleek low-profile wall speakers for the main dining areas, two JBL Control 28-1 high-output indoor/outdoor speakers for the outdoor patio, and four Pure Resonance Audio C3 3" micro ceiling speakers for the bathrooms, this system ensures crystal-clear sound for a range of applications. This system includes a Pure Resonance Audio MX84 4-zone mixer, two Pure Resonance Audio DA2240 dual-power amplifiers, and a Pure Resonance Audio BTR1 Bluetooth wireless audio receiver, making it perfect for both background music and paging. This solution is ideal for restaurants, bars, and cafes that need flexible audio control across multiple zones.
Sound System Features
- Complete commercial audio solution covering up to 3600 sq ft
- Eight low-profile wall speakers, two high-output indoor/outdoor speakers, and four ceiling speakers for full sound coverage
- 4-zone rack-mount mixer for independent control of different areas
- Dual-power amplifiers for reliable performance across multiple zones
- Bluetooth receiver for seamless wireless music streaming
- Wall-mounted volume controls for easy, zone-based volume adjustments
- Durable and versatile setup, ideal for both indoor and outdoor locations
About the System Components
JBL SLP14/T 4" Sleek Low-Profile On-Wall Loudspeakers
These eight compact 4" wall-mounted loudspeakers deliver clear, balanced audio while maintaining a sleek, low-profile design. Perfect for commercial environments, they provide high-quality sound while blending seamlessly into any modern space. Their discreet design makes them ideal for areas where space is limited or aesthetics are a priority.

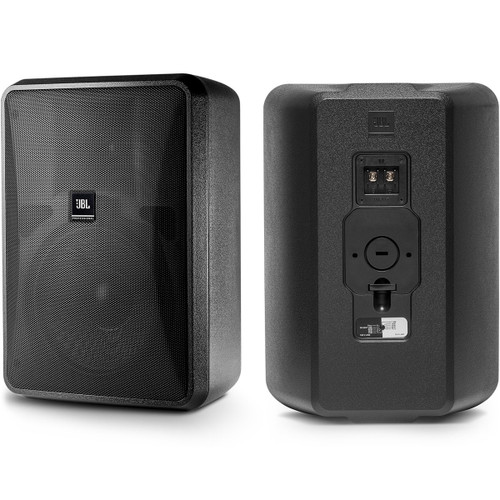

JBL Control 28-1 High Output 8" Indoor/Outdoor Speakers
The two JBL Control 28-1 speakers are engineered for high-output performance and versatile use in both indoor and outdoor settings. Featuring an 8" woofer, these speakers offer full-range sound with excellent clarity and power, making them perfect for large open spaces or areas that require higher audio output. The weather-resistant design ensures reliable performance in varying conditions.

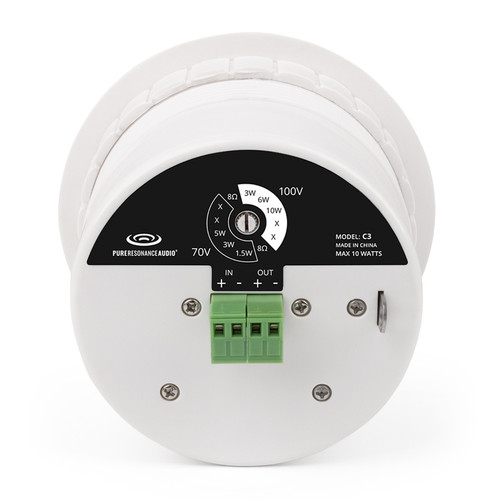

Pure Resonance Audio C3 3" Micro Ceiling Speakers
Four 3" ceiling speakers provide discreet, high-quality audio for spaces that require subtle integration. These speakers are perfect for creating even sound distribution in smaller zones or areas where a less noticeable speaker presence is needed. Their compact size and excellent performance make them ideal for restaurants and commercial environments.

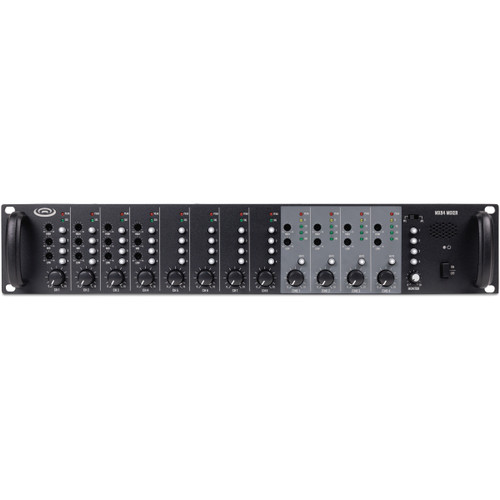

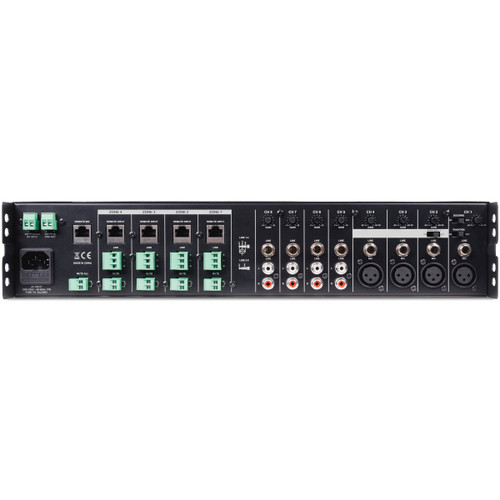

Pure Resonance Audio MX84 4-Zone 8-Channel Rack Mount Mic/Line Mixer
The MX84 is a versatile 4-zone, 8-channel mic/line mixer that allows independent control of up to four audio zones. Perfect for restaurants and commercial spaces, it offers multiple input options for microphones, personal devices, and more. The rack-mountable design ensures easy integration into existing setups, making it ideal for multi-zone audio systems.

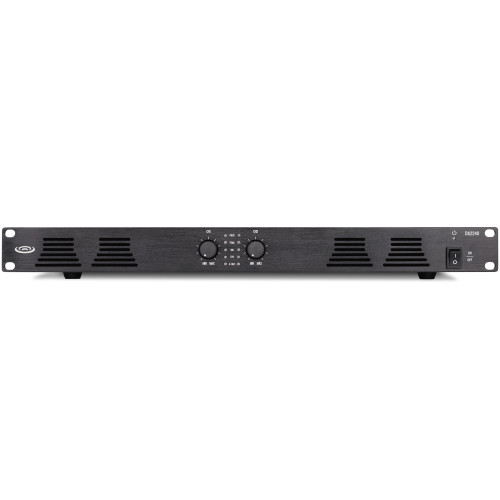

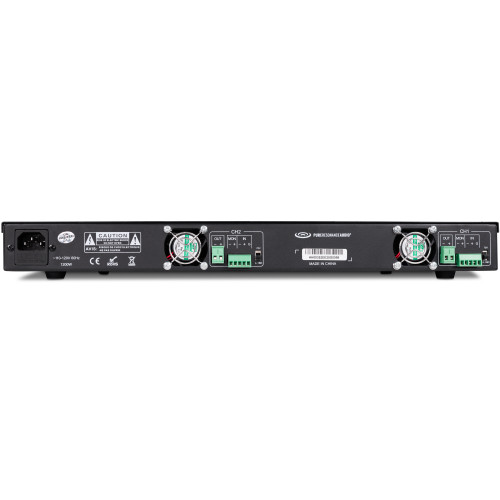

Pure Resonance Audio DA2240 Dual-Impedance 240W Rack Mount Power Amplifiers
These two 240W power amplifiers provide reliable audio amplification across multiple zones. The dual-impedance design allows compatibility with both low-impedance and 70V/100V systems, making them highly versatile for commercial sound applications. The rack-mountable design ensures a clean and organized installation while delivering consistent, distortion-free sound across all zones.

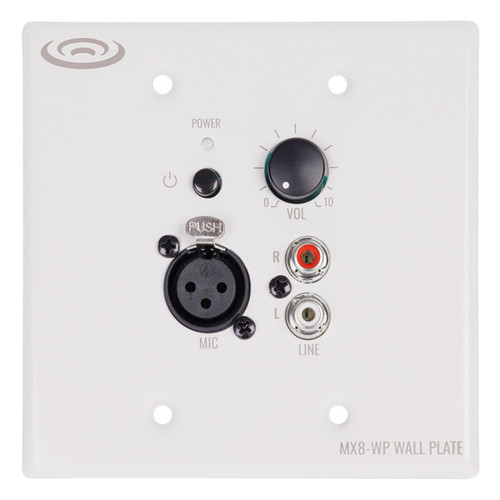

Pure Resonance Audio MX8-WP 2-Input Wall Plate with Volume Control
The MX8-WP wall plates provide convenient volume control and audio input options for different zones. These wall-mounted units allow for easy adjustment of sound levels in individual areas, offering users greater control over their audio environment. The simple design ensures integration into any commercial space.

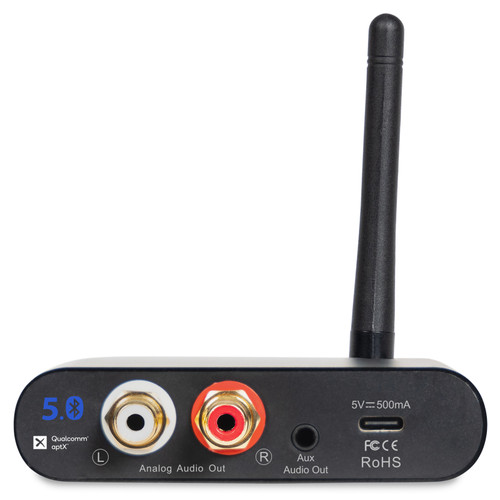

Pure Resonance Audio BTR1 Bluetooth Wireless Audio Receiver
The BTR1 Bluetooth receiver offers seamless wireless audio streaming with a range of up to 100ft, allowing users to stream music from any Bluetooth-enabled device. Its easy-to-integrate design ensures compatibility with your existing audio system, providing hassle-free wireless audio control for a modern, flexible setup.
