Restaurant Sound System with 4 JBL Control 25-1 Wall Mount Indoor Outdoor Speakers, 2 Landscape Garden Speakers and 2-Zone Bluetooth Mixer Amplifier

Inside the Design

This professional restaurant sound system is designed to deliver high-quality background music and clear paging throughout your indoor dining area and outdoor patio. Featuring four JBL Control 25-1 indoor/outdoor wall-mounted speakers, two JBL Control 85M weather-resistant landscape speakers, a Pure Resonance Audio MX84 4-zone 8-channel rack mount mic/line mixer, and a Pure Resonance Audio DA2240 dual-impedance 240W rack mount power amplifier, this system ensures superior audio performance with seamless control. Whether you're enhancing the dining ambiance or making announcements, this commercial sound system provides exceptional clarity and coverage.

Sound System Features:

• High-quality restaurant sound system designed for both indoor and outdoor environments
• JBL wall-mount speakers with InvisiBall® mounting hardware for flexible positioning
• Weather-resistant JBL landscape speakers provide excellent full-range sound and 360-degree coverage
• Pure Resonance Audio rack-mounted mixer with 4-zone capability for customized audio distribution
• Powerful 240W rack-mounted amplifier with dual-impedance support for flexible speaker configuration
• Easy connectivity for Bluetooth streaming, paging microphones, and additional audio sources
• Designed for simple installation and user-friendly operation

About the System Components

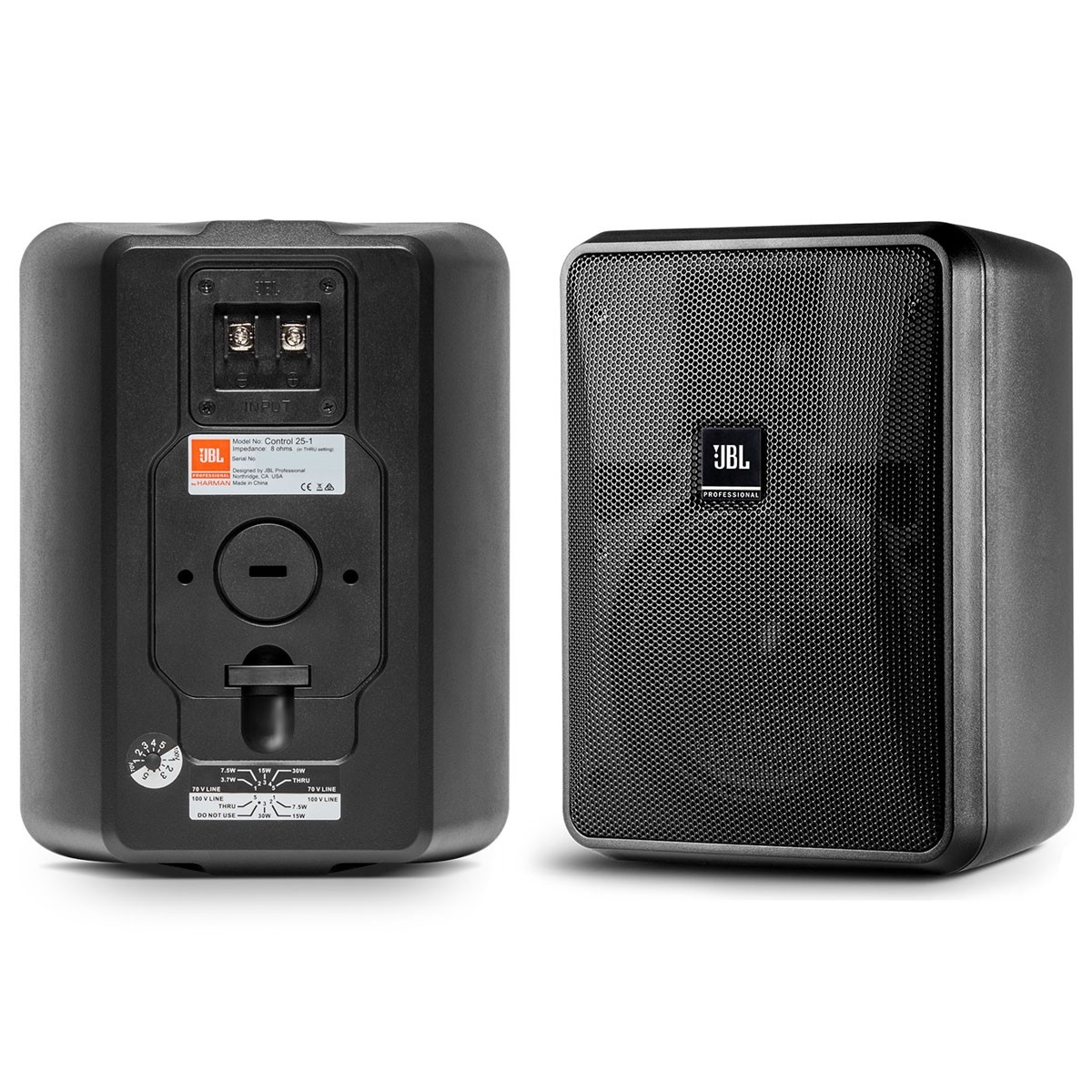

JBL Control 25-1 Indoor/Outdoor 5" Speakers

The JBL Control 25-1 speakers are weather-resistant, wall-mounted loudspeakers designed for indoor and outdoor use. Featuring a 5.25" woven fiberglass woofer and a 3/4" PEI diaphragm tweeter, these speakers deliver clear, high-fidelity audio. With a wide 100° x 100° coverage pattern and built-in InvisiBall® mounting hardware, they offer flexible positioning and even sound distribution.

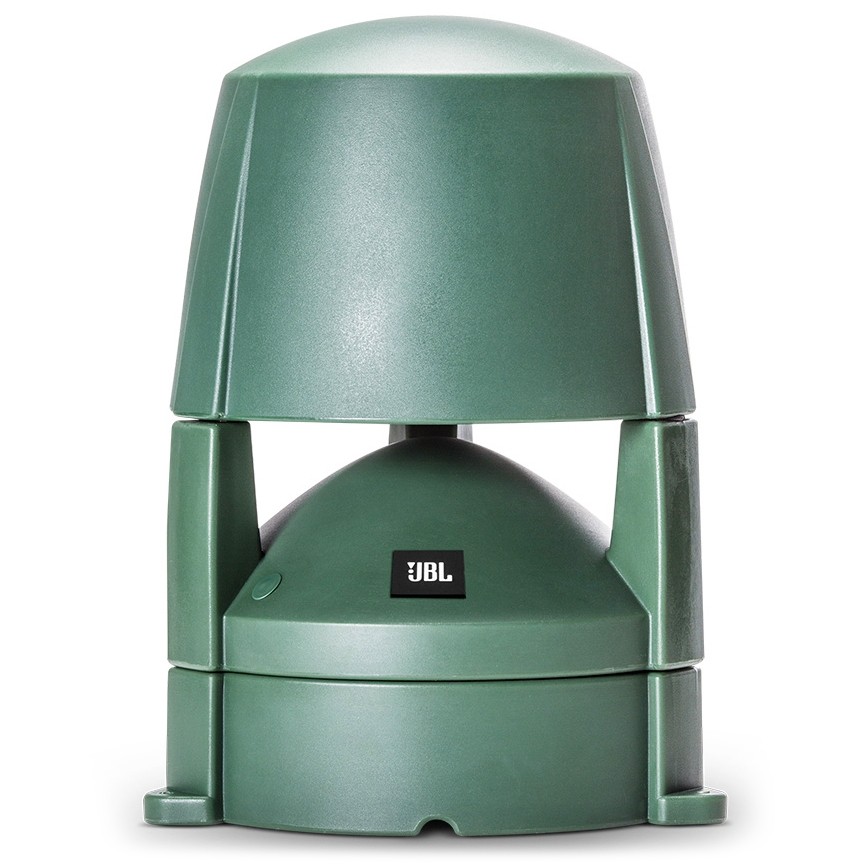

JBL Control 85M 5.25" 2-Way Coaxial Mushroom Landscape Speakers

Designed for outdoor environments, the JBL Control 85M speakers provide high-quality, full-range audio with 360-degree coverage. Featuring a 5.25" highly weather-resistant driver and a 0.75" soft-dome tweeter, these speakers ensure rich, natural sound while withstanding exposure to the elements. The tough polyethylene enclosure offers durability, making them ideal for restaurant patios and outdoor seating areas.

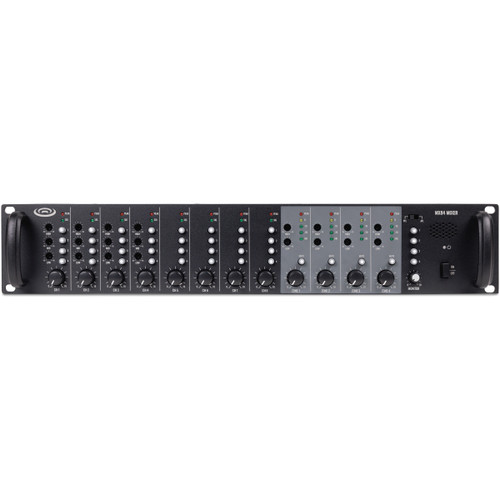

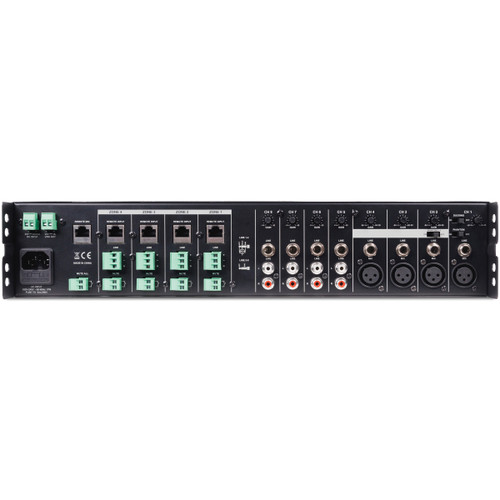

Pure Resonance Audio MX84 4-Zone 8-Channel Rack Mount Mic/Line Mixer

The Pure Resonance Audio MX84 is a professional-grade 8-channel mic/line mixer designed for multi-zone commercial audio applications. It allows independent control over four audio zones, making it easy to adjust sound levels across different restaurant areas. Featuring priority muting and multiple input options, this rack-mounted mixer ensures seamless audio management for background music and paging.

Pure Resonance Audio DA2240 Dual-Impedance 240W Rack Mount Power Amplifier

The Pure Resonance Audio DA2240 power amplifier delivers 240W of high-performance audio, supporting both 70V/100V and 4Ω/8Ω speaker configurations. With efficient Class-D amplification, balanced/unbalanced inputs, and a durable rack-mounted design, this amplifier provides the power and flexibility needed for commercial sound installations.

System & Component Videos

JBL Control 25-1 Indoor/Outdoor 5" Speakers

• 5.25" woofer with woven fiberglass cone
• 3/4" PEI diaphragm tweeter with fluid cooling
• Contemporary, high-design appearance

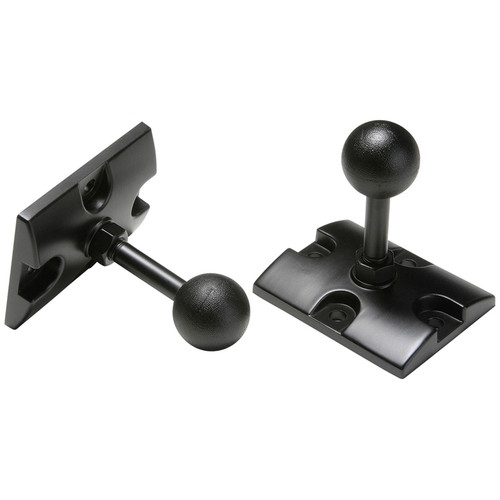

• Built-in InvisiBall® mounting hardware, plus available U-bracket
• Weather-resistant enclosure and transducers
• Wide 100° x 100° coverage
• 100 Watt power handling (200 Watt program) in direct 8Ω setting, plus built-in 30 Watt 70V/100V multi-tap transformer
• High-fidelity sound character with broad frequency response of 60 Hz – 20 kHz

JBL Control 85M 5.25" 2-Way Coaxial Mushroom Landscape Speakers

• 5.25" highly weather-resistant driver
• 0.75" soft-dome highly weather-resistant tweeter
• 80W Pink Noise Power Handling (160W program) in direct 8Ω setting, plus built-in 30W 70V/100V multi-tap transformer
• Tough polyethylene highly weather-resistant enclosure
• Fully isolated center chamber for wiring protection
• High-fidelity sound character with broad frequency range of 55Hz - 18kHz

Pure Resonance Audio MX84 4-Zone 8-Channel Rack Mount Mic/Line Mixer

• 4-Zone mic/line mixer with 8 balanced inputs
• Independent level control for each input and zone
• Priority muting and paging capabilities
• Rack-mountable design for professional installations
• Versatile connectivity for multiple audio sources

Pure Resonance Audio DA2240 Dual-Impedance 240W Rack Mount Power Amplifier

• 240W power output with dual-impedance capability
• Supports both 70V/100V and low-impedance (4Ω/8Ω) speaker connections
• Efficient Class-D amplification for high-performance audio
• Balanced and unbalanced inputs for flexible installation
• Rack-mountable design for seamless integration

• (4) JBL Control 25-1 Indoor/Outdoor 5" Surface Mount Speakers
• (2) JBL Control 85M 5.25" 2-Way Coaxial Mushroom Landscape Speakers
• (1) Pure Resonance Audio MX84 4 Zone 8-Channel Rack Mount Mic/Line Mixer
• (1) Pure Resonance Audio DA2240 Dual-Impedance 240W Rack Mount Power Amplifier
• (500') Vertical Cable 209-2315/BK 65 Strand 16AWG, 2 Conductor Audio Wire - Black
