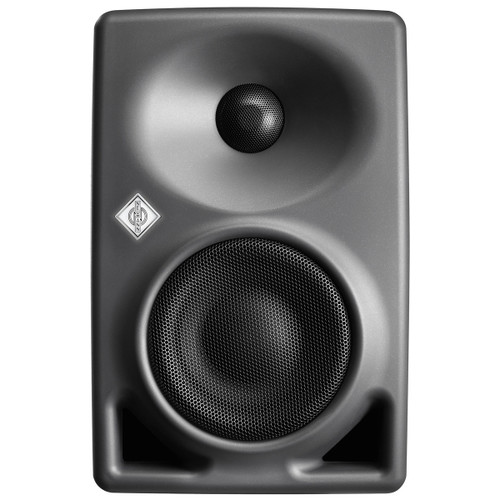

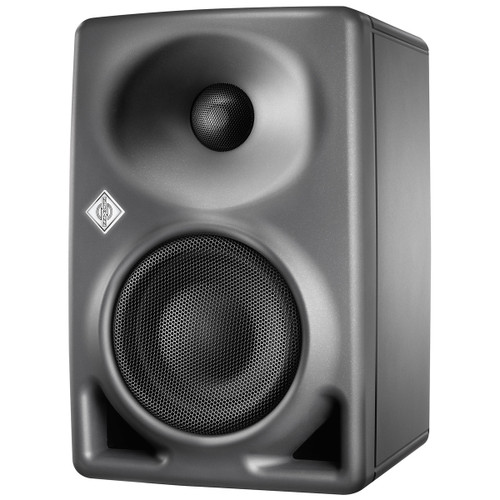

Neumann KH 80 DSP Active 4" 2-Way Bi-Amplified Powered Studio Monitors (Pair)

Part #:
506835
Model #:
KH 80 DSP A G US
MSRP: $1,398.00
$1,198.00
Availability:

Special Order (Return conditions apply)

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

Neumann KH 80 DSP 4" two-way bi-amplified nearfield studio monitor with DSP control and mathematically modeled dispersion waveguide. World-class Neumann studio speaker monitor technology at an affordable price.

Description

Neumann KH 80 DSP 4" Two-Way Bi-Amplified Nearfield Studio Monitor with DSP Control

The Art of Neutral Studio Sound – Now Digitally Remastered

Neumann has calculated every soundwave and has perfected low-distortion materials. They have optimized the drivers with years of experience and hand-selected every component. The system's perfection comes from its digital heart: In only 2 milliseconds, the DSP engine converts every sound to a reference quality in every environment – so no detail gets lost on the way.

The Perfect Sound of Mathematics at Work

Neumann knows every nuance, every surface and every angle of the KH 80 DSP. It sounds so pure because it is directing every soundwave so precisely. The KH 80 DSP’s design is based on computer simulations that calculate with an accuracy that others do not match. Their Mathematical Modeled Dispersion Waveguide (MMD™) provides the studio series with a solid base for precise sound direction that stays absolutely unique. Doing your sums properly has never sounded so good.

The Biggest Variable Is Your Room and We Have the Solution

It might be a project studio, an outside broadcast van, or just a corner of a building: The room defines the sound. Surfaces and corners in the room cause interference, diffraction, reflection, and refraction: all are forms of distortion. For a really true sound, you normally need expensive equipment plus plenty of time and expertise to align it correctly – or smart algorithms. The DSP engine optimizes the sound output, delivering quality way above price-tag. And you do not need to be an expert use it. The KH 80 DSP is ready for the Neumann.Control software  – which is available for tablets and computers, allowing you to align and control the monitor with a swipe of your finger or click of a mouse.

Professional Standards for Everyone

Highest quality components, high-end protection systems and performance reserves are what you would expect from this studio class product. Its quality and design make the KH 80 DSP a flexible near-field studio monitor, which delivers professional-quality sound wherever you need it. It can be used in studios, editing rooms or outside broadcast trucks. Some customers like it so much, they use KH 80 DSPs in their living rooms. And why not? The latest monitor delivers digital precision for a masterpiece of analog technology: your ears.

Features

  • New DSP-engine optimizes output to achieve reference class sound
  • Ready for fully-automatic alignment to the room using the Neumann.Control software
  • Mathematically modeled dispersion to deliver excellent detail in any surroundings

Specifications

Acoustics
-6 dB Free Field Frequency Response 53 Hz - 22 kHz, ± 6 dB
-3 dB Free Field Frequency Response 57 Hz - 21 kHz, ± 3 dB
Pass Band Free Field Frequency Response 59 Hz - 20 kHz, ± 2 dB
Self-Generated Noise < 20 dB(A) bei 10 cm (with input gain set to 100 dB for 0 dBu)
Max. SPL in Full Space at 3% THD at 1m 102.8 / 108.8 dB SPL (averaged between 100 Hz and 6 kHz)
Electronics
Input XLR, analog electronically balanced
Controller Design Digital, active
Crossover Frequency, Slopes 1.8 kHz, 48 dB/oct, 8th order
Bass Amplifier, Cont. (Peak) Output Power 150W (130W)
Treble Amplifier, Cont. (Peak) Output Power 55W (70W)
Mains Power Supply, Voltage; Frequency 100-240 V~; 50/60 Hz, with standby
Mechanics
Drivers 100 mm (4"), 25 mm (1"), with integrated black metal grilles
Mounting Points 2 x M6 threaded inserts with 70 mm spacing on back panel
Dimensions (H x W x D) 9.13" (233 mm) x 6" (154 mm) x 8.63" (194 mm)
Weight 7.69 lbs (3.5 kg)
