The NEXO GEO M620 is a black 6.5" compact full-range line array loudspeaker with 20° vertical coverage and selectable 80° or 120° horizontal dispersion, delivering powerful, discreet performance for fixed installations and mobile applications.

Description

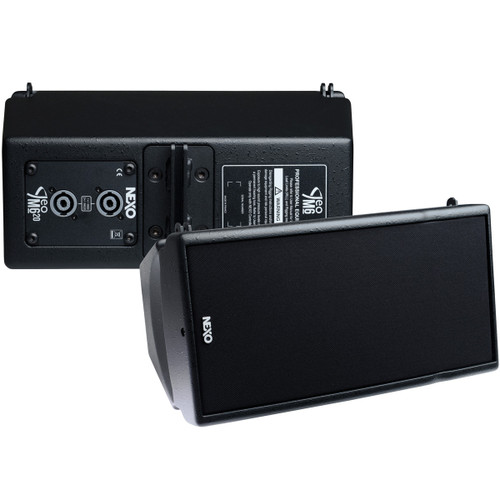

NEXO GEO M620 6.5-Inch Compact Black Line Array Speaker

The GEO M620 is a compact yet powerful full-range line array loudspeaker designed for both fixed installations and mobile sound reinforcement. Finished in black, its discreet enclosure, elegant internal rigging, and minimal visual footprint make it ideal for venues where high-quality sound must integrate seamlessly into the environment.

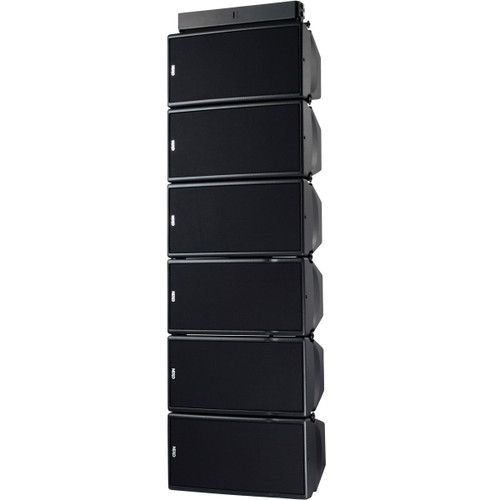

As the main module of the GEO M6 system, the GEO M620 can be used as a standalone loudspeaker or configured into curved or straight line arrays. It features a high-efficiency 6.5" long-excursion low-frequency driver paired with a 1" throat high-frequency compression driver mounted on NEXO's patented HRW waveguide. This design delivers a consistent array coupling with controlled 20° vertical coverage and selectable 80° or 120° horizontal dispersion for precise audience coverage.

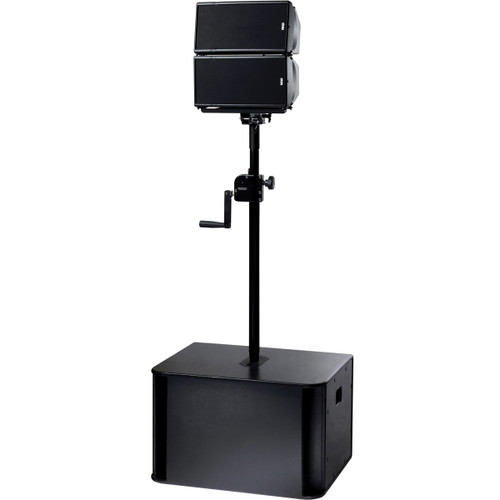

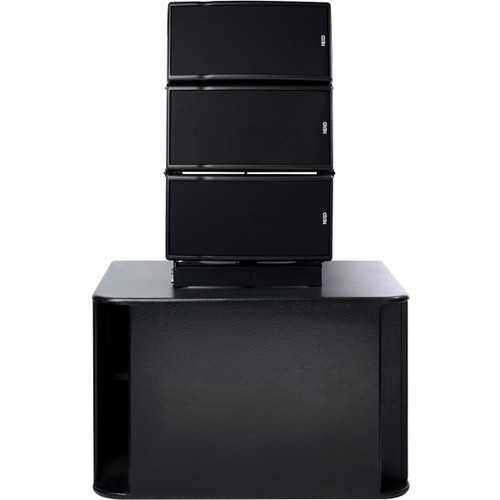

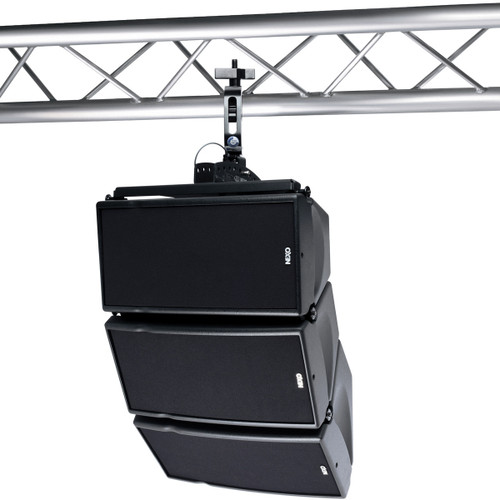

Highly flexible in deployment, the GEO M620 can be flown, groundstacked, or pole-mounted on subwoofers and integrates seamlessly with the GEO M6B bass extension module for extended low-frequency output. Driven by NEXO NXAMP-powered controllers, multiple cabinets can be powered from a single amplifier with linear-phase processing, making the GEO M620 a scalable, dependable solution with legendary NEXO performance.

Features

  • 6.5" compact full-range line array loudspeaker
  • 20° vertical coverage for controlled array design
  • Selectable 80° or 120° horizontal dispersion
  • Patented NEXO HRW waveguide for consistent HF coupling
  • High-efficiency 6.5" LF driver with 1" HF compression driver
  • Black enclosure with discreet, installation-friendly design
  • Fully integrated 3-point internal rigging system
  • Flyable, ground-stackable, or pole-mounted deployment
  • Scalable GEO M6 system with optional GEO M6B bass extension
  • Compatible with NEXO NXAMP-powered TD Controllers

Specifications

Frequency Response 80Hz - 19kHz (±3dB)
Usable Range 75Hz - 20kHz (@ -6dB)
Sensitivity 95dB SPL nominal (1W @ 1m)
Nominal Peak 127dB (SPL @ 1m)
HF Dispersion 80˚or 120˚ horizontal (CCD)
Crossover Frequencies LF-HF: 2kHz passive
Nominal Impedance
Components LF: 1 x 6.5” 8Ω long excursion driver
HF: 1 x 1” throat driver on a BEA/FEA optimised HR Wavesource
Connectors 2 x NL4 Speakon 4 poles
Dimensions (H x W x D) 7.5" (191 mm) x 14.7" (373 mm) x 10.2" (260 mm)
Weight 21.4 lbs (9.7 kg)
