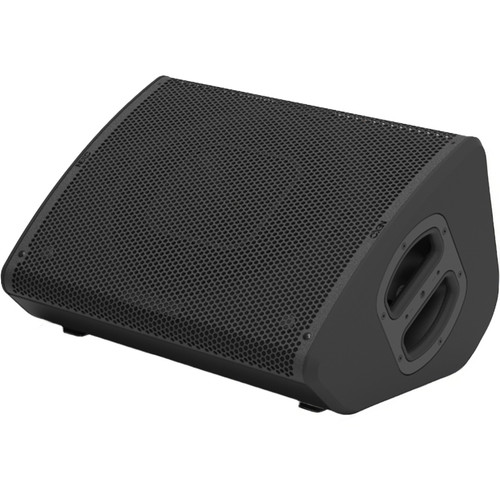

NEXO P12-I 12" 2-Way Full-Range High-Output Fixed Installation Point Source Speaker with 60° x 60° Coverage - Black

Part #:
P12-I
Model #:
P12-I
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The NEXO P12-I is a high-output 12" 2-way full-range coaxial point source speaker for fixed installations, delivering up to 140 dB peak SPL with controlled 60° x 60° coverage. Finished in black, it features installation-ready cabling and precision performance for professional venues.

Description

NEXO P12-I 12-Inch 2-Way Black Installed Point Source Speaker

The P12-I is a powerful 12" full-range point source loudspeaker engineered specifically for fixed installation environments that demand high output, controlled directivity, and exceptional clarity. Built around a purpose-designed 12" neodymium coaxial LF driver with a 3" HF diaphragm, the P12-I delivers coherent phase response and up to 140 dB peak SPL, making it ideal for medium to large venues requiring focused sound reinforcement.

Featuring a 60° x 60° dispersion pattern as standard, the P12-I provides precise coverage control, with optional horn configurations available to suit asymmetric or wider coverage requirements. The compact, curvilinear enclosure can be deployed vertically or horizontally, allowing flexible integration into architectural spaces while maintaining consistent sonic performance.

Optimized for permanent installation, the P12-I includes a fixed 2-core cable input via cable gland to support IP54 installation requirements, along with a discreet acoustic fabric front grille for a clean, professional appearance. Universal rigging points on the sides and bottom enable secure wall or ceiling mounting. When paired with NEXO NXAMP or DTD processing solutions, the P12-I delivers predictable, repeatable results in theaters, houses of worship, performance venues, and other installed sound applications.

Features

  • 12" 2-way full-range coaxial point source loudspeaker
  • High-output design with up to 140 dB peak SPL
  • 60° x 60° controlled coverage for precise sound distribution
  • Fixed-installation design with 2-core cable input via cable gland
  • 12" neodymium LF driver with 3" HF diaphragm
  • Compact, curvilinear enclosure finished in black structural paint
  • Acoustic fabric front grille for architectural installations
  • Universal rigging points on sides and bottom
  • Optimized for NXAMP and DTD processing
  • Ideal for theaters, houses of worship, and professional venues

Specifications

Frequency Response (-6 dB) 60 Hz - 20 kHz
Peak SPL 138 dB Peak (Passive mode)/140 dB Peak (Active mode)
Operating Voltage 55 Vrms (180V peak)
HF Dispersion 60° x 60° - 90° x 40° - Asymmetrical Dispersion 60° to 100° x 40°
Crossover Frequency 60 Hz - 85 Hz - 120 Hz
Nominal Impedance
Components LF: 1 x 12" - 8Ω; HF: 1 x 3" - 8Ω - Neodymium driver
Material Baltic birch/Poplar plywood
Finish Black structural paint
Front Finish Black acoustic fabric fitted front steel Magnelis grille
Fittings Threated inserts on the back and on both sides for connection of mounting accessories
Cabinet Construction Bent Baltic birch and poplar plywood
Connector Cable gland, supplied with a fixed cable 2 x 1.5 mm section, length 4 m
Dimensions (H x W x D) 20.9" (531 mm) x 17" (432 mm) x 12.4" (317 mm)
Weight 44 lbs (20 kg)
