Octasound SP540A 12" 180º x 120º Multi-Location Speaker System

Name: Octasound SP540A 12" 180º x 120º Multi-Location Speaker System
Brand: Octasound
SKU: OCTA-SP540A
Price: 2052 USD
Availability: InStock

Write a Review

Part #:

SP540A

Model #:

SP540A

Current Stock:

Availability: 90 Day Lead Time

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

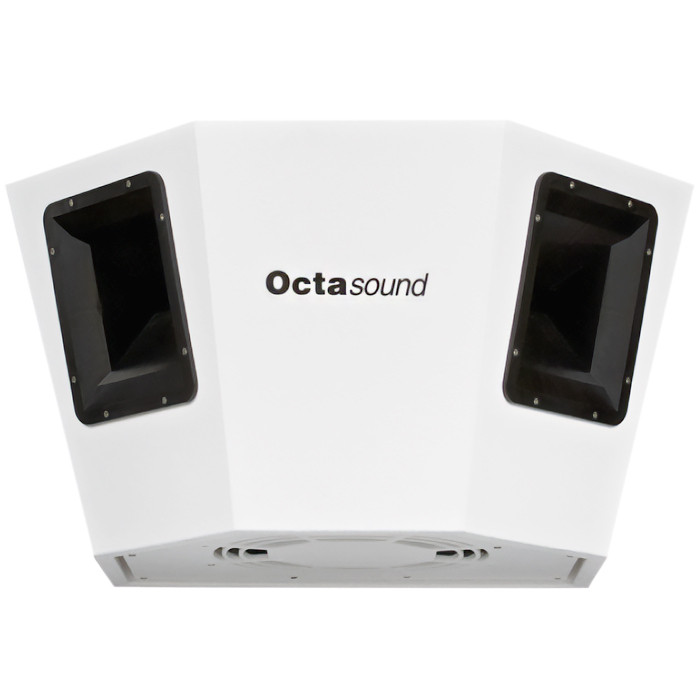

The Octasound SP540A multi-location speaker system features a tuned port enclosure with a highly efficient 12" woofer paired with two compression horns and drivers. An internal crossover network optimizes the frequency response between components to ensure maximum performance.

Description

Octasound SP540A 12-inch Multi-Location Speaker System

The SP540A multi-location speaker system has a tuned port enclosure contains a highly efficient 12" woofer matched to two compression horns and drivers. The frequency spectrum of the woofer and horns is determined by an internal crossover network that is optimized to maximize performance. This combination ensures full fidelity reproduction from an extremely compact multi-Location speaker system.

The KDM SP540A can withstand input power of 200 watts RMS. The KDM SP540A also contains a built-in, self-resetting thermal protective circuit. This protects the high frequency drivers from excessive and distorted (10% T.H.D.) input levels.

The KDM SP540A is extremely sensitive with a Sound Pressure Level (S.P.L.) of 101 dB per watt at 1 meter. As a result, very little amplifier power is required to obtain the required sound pressure levels. At maximum RMS input power the KDM SP540A can produce 124 dB S.P.L. at one meter.

Features

Full fidelity - for both voice and music
High sensitivity - 106 dB per watt per meter
High power handling - 200 watts rms / 400 watts peak
Wide coverage area - 180° x 120°
Small and compact
Up to 35,000 Square Feet sound coverage
Impact Resistant Rugged Polyurethane Elastomer Finish
Pucks, Basketballs, Lacrosse Balls, Projectiles - No Problem!
4 Suspension Points - Ready to Hang right out of the box
High Humidty Moisture Resistant Low Temperature Design
Long Lasting Performance and extremely durable components
4 High Compression Horn Drivers, 1 Sub-Woofer 15"
Manufactured in North America using Eminence components

Specifications

Frequency Response	40 Hz to 15 kHz ± 10 dB (on axis)
Optimum Power	50 to 120 watts RMS total
Power Handling	200 watts RMS total, 400 watts peak
Impedance	8 ohms nominal
Dispersion	180º Horizontal, 120º Vertical
Sensitivity	124 dB RMS / 127 dB Peak at 1 meter
Temperature Range	-20ºC to 55ºC (-4ºF to 131ºF)
Humidity Range	0% to 100% Non Condensing
Weight	68 lbs
Material	Exterior Treated Wood Composite Panel
Mounting Hardware	Top Panel: Four 1 1/2" Eye Nuts, 3/4" I.D. Eye 1/4 x 20 ThreadRear
Mounting Hardware	Panel: Four 1 1/2" Eye Nuts, 3/4" I.D. Eye 1/4 x 20 Thread
Coverage	180° x 120° - 18,000 sq. ft. (100 x 180 ft.)
Woofer / Midrange	12", 120 oz. Magnets, 3" Voice Coil
Horns (2)	9 x 9 Glass Filled ABS
Drivers (2)	Exponential Compression 24 oz. Magnets, 1-3⁄4" Voice Coils
Dimensions (H x D)	16" (406.4 mm) x 19.5 (495 mm)
Weight	82 lbs (37.2 kg)
Shipping Weight	92 lbs (41.7 kg)
