Office Sound Masking System with Cambridge Sound Management In-Ceiling Qt Emitters and Multi-Zone White Noise Generator for up to 12000SF
Part # SMSS-QTX600OS
Model # SMSS-QTX600OS

This highly cost-effective, fully integrated office sound masking solution protects confidential conversations and reduces distractions in large office spaces. This system includes 120 sound masking speakers and is capable of covering up to 6 diverse zones in buildings needing improved speech privacy.

Availability: Usually arrives in 5-9 business days.

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email [email protected] or call us at 888-256-4112.

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

Inside the Design

This Cambridge Sound Management office noise reduction system helps protect speech privacy in large open ceiling spaces and greatly reduces noise distractions by dispersing low levels of ambient noise, creating a more comfortable work environment. This multi-zone commercial office sound masking system includes background music and paging capabilities, making it ideal for large open office spaces such as call centers, sales floors, and corporate business offices to improve speech privacy and provide a more pleasant work atmosphere.

Sound System Features:

  • Up to 6 zones with approximately 12,000 sq ft of coverage
  • 180 degree dispersion of direct field sound masking
  • Clear, quality paging and background music capabilities
  • Reduces acoustical interference by using four uncorrelated channels
  • Small, powerful speakers that are virtually invisible in open ceilings
  • Plug and play installation and easy configuration

About the System Components

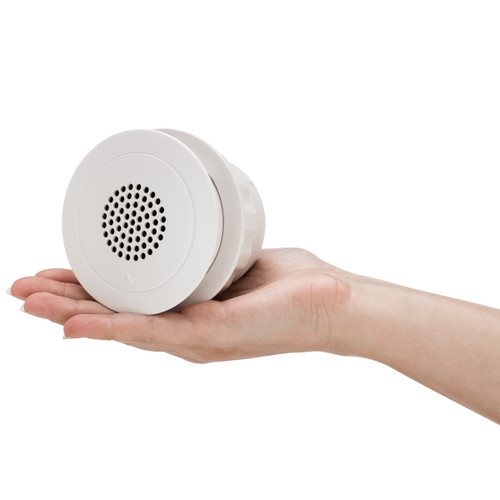

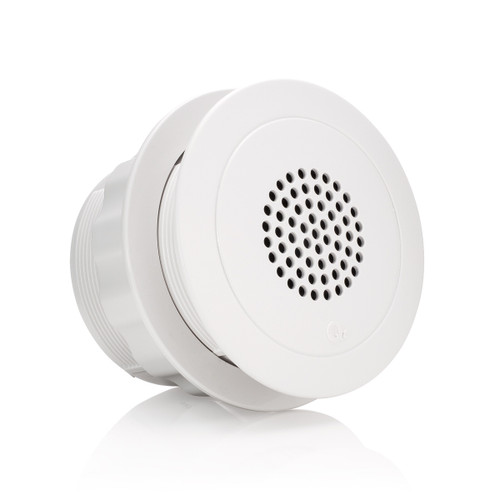

Cambridge Qt Emitters

The Cambridge Qt sound masking emitters are the backbone of the Qt Quiet Technology Sound Masking System. Qt emitter sound masking speakers are smaller than a coffee mug. These emitters deliver unobtrusive sound masking along with plug and play installation and easy configuration capability. Intelligently engineered and the most effective sound masking systems on the market today. Delivers superior uniformity which leads to a more comfortable sound masking experience in offices and a cost-efficient way to reduce noise distractions and protect private conversations.

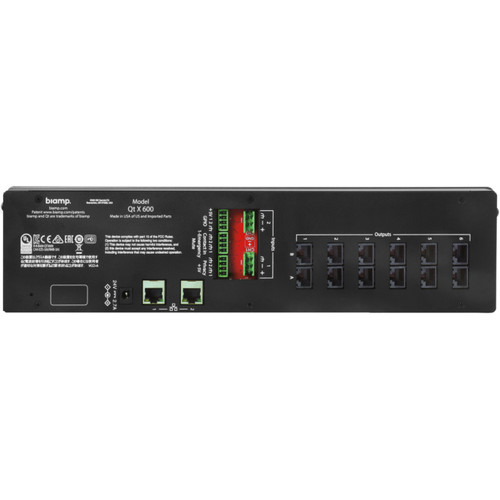

Cambridge Qt X 600 Controller

The Cambridge Qt X 600 control module is a sound masking generator, controller, third-octave band equalizer and amplifier, with two auxiliary audio inputs to allow for distribution of audio from paging controllers and/or (background) music players. The Qt X 600 controls up to six zones of Qt standard or active emitters. The Qt X 600 control module is a compact six-zone networkable controller suitable for installations of up to 72,000 square feet (6,690 m2). Each zone can be independently adjusted for masking and aux audio levels and spectra. Both models feature full compatibility with Biamp’s SageVue™ system management software. When multiple controllers are included in a single system audio inputs can be shared across all controllers via AVB.

System & Component Videos

Features

Features

Cambridge Qt Emitters Sound Masking Speakers:

  • Wide dispersion direct field speakers with 1.25" (3.17 cm) drivers
  • Small driver size results in nearly 180-degree dispersion of direct field sound masking
  • Plug and play installation and easy configuration
  • Reduces acoustical interference by using four uncorrelated channels

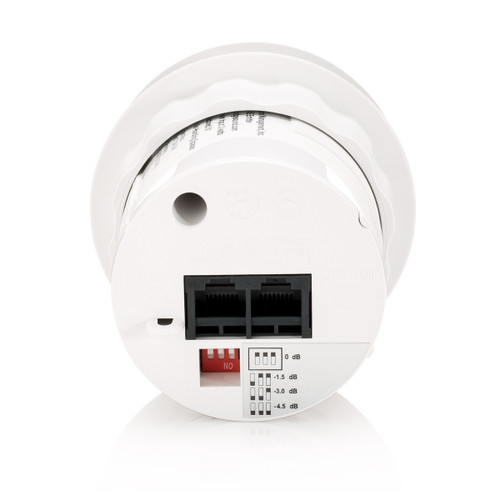

  • DIP switches attenuate the volume level up to 9 dB in 3 dB decrements for easy micro-zoning
  • Plenum rated, UL-listed and complies with UL 2043
  • Comes standard with slip ring for acoustical tile mounting

Cambridge Qt X 600 Multi-Zone Sound Masking Generator:

  • Compatible with Qt Standard emitters and Qt Active emitters
  • Supports up to six zones
  • AVB media network
  • Two audio inputs for paging and music
  • Contact closure integrates with fire alarm systems
  • Front panel with LCD
  • Front panel lock (via software control)
  • Auto ramping
  • Event scheduling
  • Adjustable equalizer for masking and audio inputs
  • Four non-correlated sound masking audio sources per zone
  • Built-in clock with system NTP support
  • Wall mount bracket included, optional rack mount bracket also available
  • Dual network ports (media/control)
  • Web interface control by any web-enabled device
  • Third-party control API/Ethernet
  • CE marked, ETL listed, and RoHS compliant
System Includes

System Includes

  • (120) Cambridge Qt Emitters Sound Masking Speakers
    • (120) 16ft UTP Cables
    • (120) Acoustic Ceiling Tile Mounting Rings
  • (1) Cambridge Qt X 600 Sound Masking Multi-Zone Generator
