Inside the Design

This office sound masking and background music solution reduces noise distractions, protects private conversations and creates a more comfortable ambiance and productive work environment. Compact and lightweight, the Pure Resonance Audio C3 3" micro ceiling speaker system is an intelligent, stylish design that seamlessly blends into ceilings while producing high-quality sound and excellent audio dispersion. The Pure Resonance Audio MA30BT 7-channel mixer amplifier with built-in 70V/100V transformer technology provides a simple to operate and reliable 6-input solution with a built-in Bluetooth media player for installation in commercial applications. The Atlas Sound TSD-GPN1200 sound masking generator is perfectly suited for basic sound masking systems. Allows selection between pink or white noise sources and incorporates a variable balanced output to match input requirements of equalizers and amplifiers. Great for offices, call centers, corporate environments, healthcare environments, financial institutions, government facilities, military facilities or anywhere speech privacy is required.

Sound System Features:

• Protects private conversations and reduces noise distractions
• Approximately 1,250 sq ft of coverage
• Low profile 70V sound masking and/or background music system with Bluetooth capability
• Small 3" compact and lightweight in-ceiling speakers with powerful high-quality sound

• Expandable up to (20) twenty C3 micro ceiling speakers
• Selectable white and pink noise analog generator
• Quick and easy installation

About the System Components

This Pro Acoustics designed sound system includes eight Pure Resonance Audio C3 3" micro ceiling speakers with Easy-Mounting Rings that are easy to install and seamlessly blends into drop-tile or drywall ceilings creating a beautiful architectural look. To power these speakers we've included a Pure Resonance Audio MA30BT 70V 7-channel Bluetooth mixer amplifier and the Atlas Sound TSD-GPN1200 sound masking generator with the option of either pink or white noise. This sound masking and BGM (background music) system also includes 250ft of West Penn 224 18/2 non-plenum speaker wire and a CBI BLC-3-Prep-TRS prep wire to male TRS cable to complete your system.

Not sure if this is the right Sound Masking solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

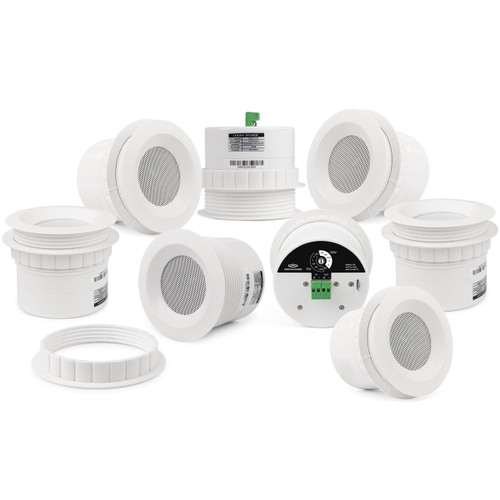

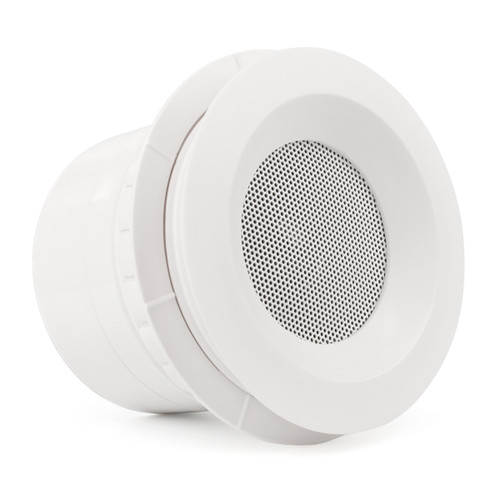

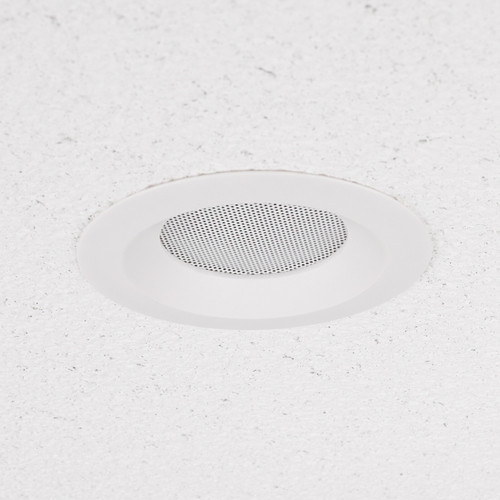

Pure Resonance Audio C3 3" Micro Ceiling Speaker with Easy-Mounting Ring:

• Compact and lightweight
• Smallest possible footprint while maintaining powerful quality sound
• Intelligent, stylish design that seamlessly blends into the ceiling
• Power tap transformer switch for selectable 8 ohm or 70V/100V operation for commercial applications
• Tap settings:
• 70V: 8 ohm, 1.5W, 3W, 5W
• 100V: 8 ohm, 3W, 6W, 10W
• Quick & easy installation with threaded mounting ring
• Perfect for background music in offices, retail stores, restaurants, hotels, foyers, and auxiliary spaces

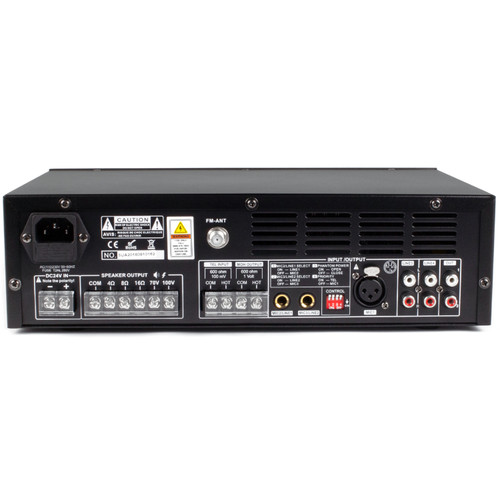

Pure Resonance Audio MA30BT 7-Channel 30W Bluetooth Commercial Mixer Amplifier:

• 7-channel powered mixer amplifier (6 inputs + Bluetooth Media Player)
• Volume Controls for Mic 1-3, Line 1-2, MP3/FM Radio, Bass, Treble and Master
• MP3 Player, FM Radio & Bluetooth (with IR remote control)
• USB and SD inputs on front panel
• Power output rating 30 Watts
• Built-in 70V/100V transformer
• Speaker outputs: 70V, 100V, 4, 8 and 16 Ohms
• Mic 1 of balanced XLR input (with phantom power)
• Mic 2-3 microphone or line switchable
• Line 1-2 input of RCA inputs
• DIP switches for Mic/Line, phantom power and microphone priority
• Unbalanced 6.3 mm phone jack input
• One RCA line output (0.775 line level 0 dBV)
• Telephone input (600 Ohm/100mV) with VOX priority and MOH (Music on Hold) (600 Ohm 1 Volt)
• LED indicators for power clip, protect signal, Mic 1-3, Line 1-2 and telephone inputs
• Short-circuit, clip, overload and high temp protection
• 24 VDC Emergency backup supply
• 115V 60 Hz & 24V DC both operation system

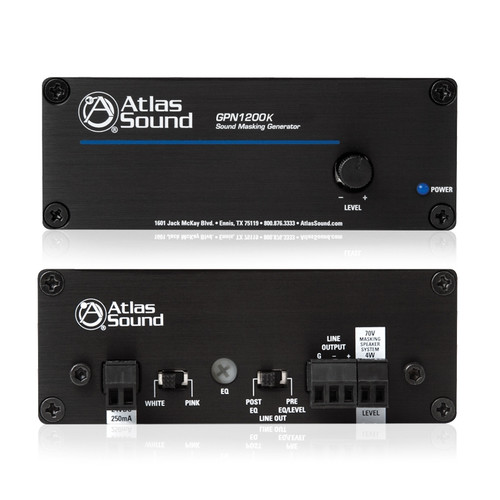

Atlas Sound GPN1200K TSD Sound Masking Generator Kit:

• Balanced line output plus 4W, 70.7V output
• Adjustable gain and hi-cut filter
• EQ & gain bypass for line output
• Selectable pink or white noise source
• Security covers included for all rear panel controls
• Stand alone or rack mountable
• Meets energy star standards
• Compact chassis design

• (8) Pure Resonance Audio C3 3" Micro Ceiling Speakers with Easy-Mounting Rings
• (1) Pure Resonance Audio MA30BT 7-Channel 30W Bluetooth Commercial Mixer Amplifier
• (1) Atlas Sound GPN1200K TSD Sound Masking Generator Kit
• (1) CBI BLA-3-Prep-TRS Prep Wire to Male TRS - 3ft

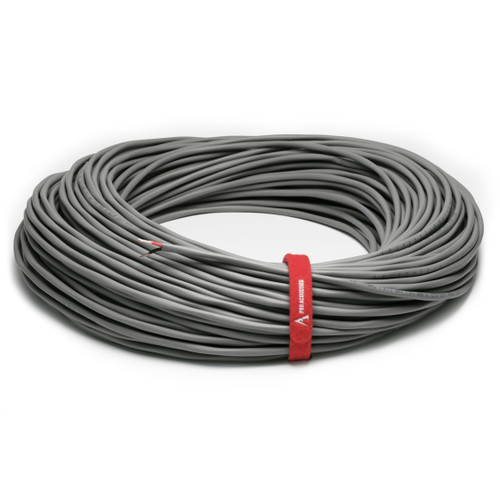

• (250') West Penn 224 18/2 Non-Plenum Audio Speaker Wire
