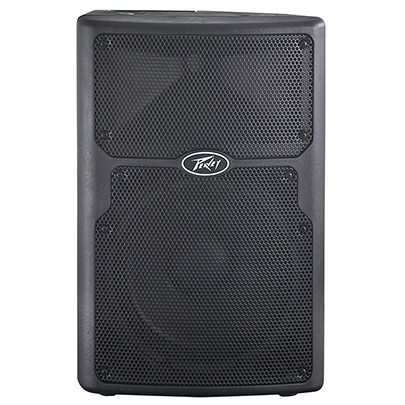

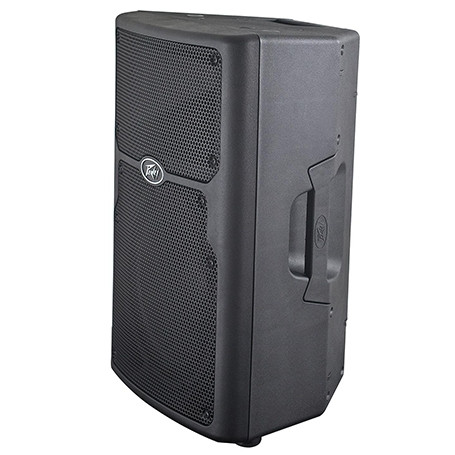

Peavey PVX 10 10" 2-Way Passive Loudspeaker

Peavey PVX 10 10" 2-Way Passive Loudspeaker

Name: Peavey PVX 10 10" 2-Way Passive Loudspeaker
Brand: Peavey
SKU: PEAVEY-03620370
Price: 279.99 USD
Availability: InStock

Write a Review

Part #:

03620370

Model #:

PVX 10

Current Stock:

MSRP: $324.99

$279.99

Availability: Usually arrives in 5-9 business days.

Quantity:

Adding to cart… The item has been added

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Peavey PVX 10 is a 2-way sound reinforcement system based on a heavy-duty 10" woofer and a RX 10N titanium diaphragm dynamic compression driver mounted on a 100 by 60 degree coverage Quadratic Throat Waveguide.

Description

The PVX 10 is a two-way sound reinforcement system based on a heavy-duty 10" woofer and a RX 10N titanium diaphragm dynamic compression driver mounted on a 100 by 60 degree coverage Quadratic Throat Waveguide. Its sleek modern appearance coupled with excellent performance offer an outstanding package.

Features

2-way sound reinforcement enclosure
Crossover network for driver protection and EQ
High frequency driver protection
Durable plastic injection-molded trapezoidal enclosure
Asymmetrical horn aims the sound down 10 degrees, at the audience, not over their heads
Full-coverage heavy-duty perforated steel grilles, with powder coat finish

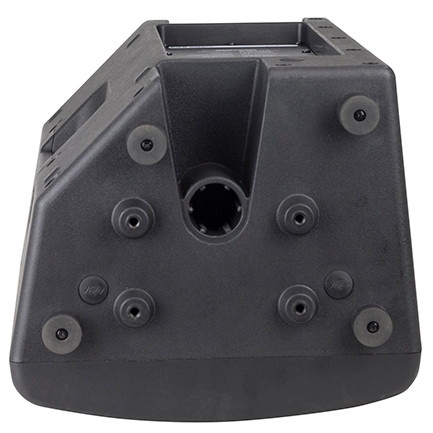

Pole mount molded-In
Top and bottom flying point inserts
Patented Quadratic Throat Waveguide technology, 100 by 60 degree coverage
400W program/800W peak power handling
RX 10N compression driver, with 1.0 inch titanium diaphragm
10" heavy-duty woofer with 2 3/8" voice coil & 50 oz. magnet
Extra angled section on right side allows floor monitor use

Specifications

Frequency Range	52 Hz to 20 kHz (1 meter on-axis, swept-sine in half space environment)
Frequency Response	74 Hz to 18 kHz (±3 dB) (1 meter on-axis, swept-sine in anechoic environment)
Usable Low Frequency Limit	57 Hz (-10 dB point anechoic)
Power Rating (Program)	400W
Peak Power Capacity (Peak)	800W
Sound Pressure Level	93 dB SPL, (2.83V input) 1 Watt, 1 meter in anechoic environment
Maximum Sound Pressure Level (1 meter)	116 dB SPL continuous 122 dB SPL peak
Radiation Angle	Nominal: 100° horizontal X 60° vertical (measured at -6dB point of polar response)
Transducer Complement	Heavy-duty 10" woofer with 2 3/8" voice coil & 50 oz. magnet RX™10N 1” titanium diaphragm dynamic compression driver
Box Tuning Frequency	67 Hz
Crossover Frequency (Internal Passive)	3 kHz
Impedance (Z)	Nominal: 8Ω Minimum: 7Ω
Input Connections	One four-pin twist-lock connector paralleled with a 1/4" phone jack
Dimensions (H x W x D)	20" (508 mm) x 12.69" (322 mm) x 11.06" (281 mm)
Net Weight	25 lbs (11.3 kg)
