Flyable Line Array Speaker Package by TOA Electronics for Indoor Live Sound
in Auditoriums, Multi-Purpose Venues, Meeting Halls, and House of Worship Applications
This TOA flyable loudspeaker package was custom designed by our expert audio engineers as an excellent addition or upgrade to your current live sound system. This low profile, versatile speaker system can reach an audience size of up to 500 people in meeting halls, multi-purpose venues, auditoriums, and house of worship applications.
The HX-5 loudspeakers and FB-120 subwoofers fill an important need for versatile public address equipment that can provide high-quality reinforcement for a multitude of venues. This package is ideal for a wide range of small to medium size venues of all different shapes that often pose problems for sound reinforcement. These include auditoriums, places of worship, banquet halls, community centers, meeting halls, multi-purpose venues, and many more.

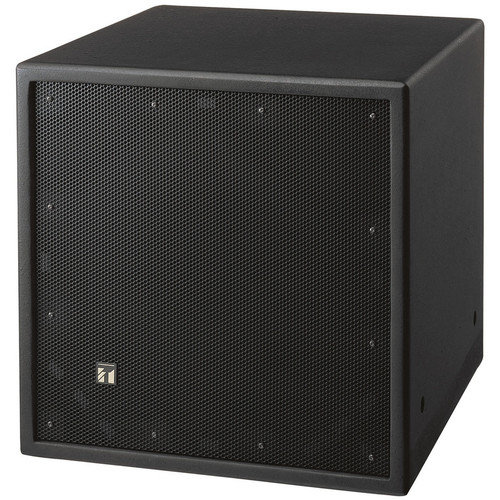

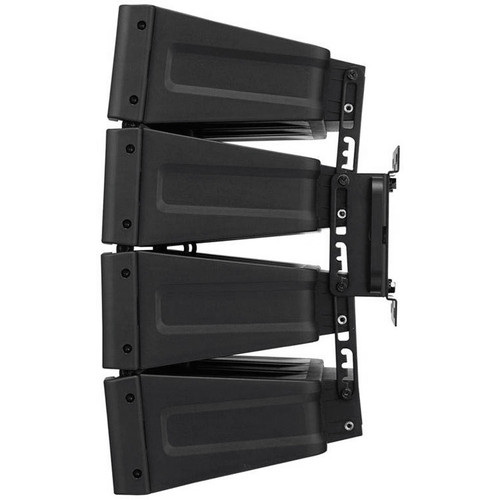

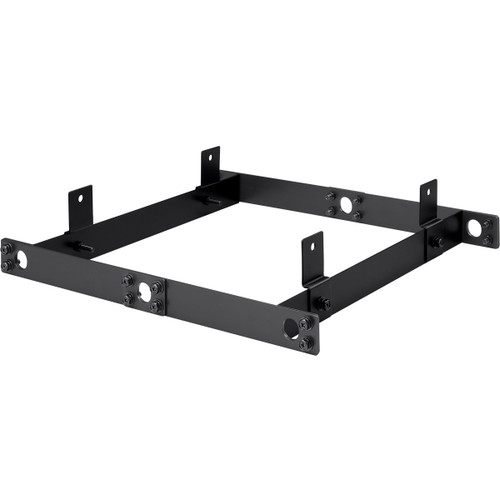

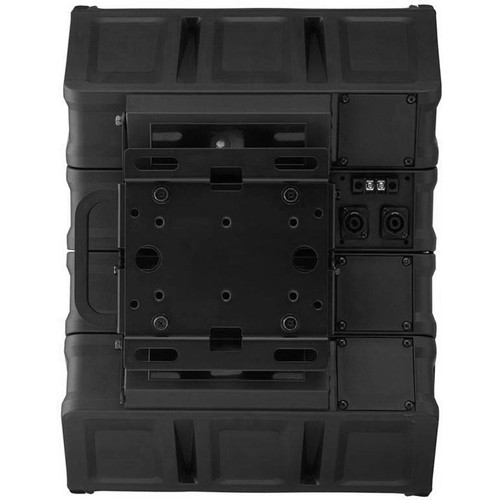

The TOA HX-5 variable dispersion speaker offers a radically different approach to speaker design with four adjustable dispersion angles - 60, 45, 30 and 15 degrees. You also get pattern control below 1kHz in a compact and lightweight enclosure. The FB-120 compact 12" subwoofers are designed to work in conjunction with the HX-5 and are ideal for reproducing dynamic low-frequency sound. The TOA HY-PF1 speaker rigging frames are used to suspend the HX-5 speaker system from the ceiling. The FB-120 series subwoofer can be suspended using this frame and the supplied mounting brackets.
-
Adjustable dispersion angle to 60, 45, 30 or 15 degrees
-
Suitable for an audience up to 500 people
-
Recommended amplifiers: (2) Ashly Audio KLR 3200 2-Channel High-Performance Power Amplifiers 2 x 650W @ 8 Ohms
-
Versatile installation options include flyable, surface-mount, ceiling, pole mountable and optional joining brackets
This professional live sound loudspeaker package can be customized to fit the exact needs of your specific live sound application. Our audio engineers recommend using two Ashly Audio KLR 3200 power amplifiers with this speaker package. They also recommend adding West Penn 227 audio speaker wire to connect the speakers to the subwoofers. A number of accessories can also be added to the package such as extension hardware, matching transformers (MT-200), additional brackets (HY-CW1, HY-WM1, HY-WM2, HY-CN1), and speaker stands (HY-ST1).
