Pure Resonance Audio C8 8" 2-Way In-Ceiling Loudspeaker
The Pure Resonance Audio C8 8" 2-way high-performance in-ceiling loudspeaker features a sleek, flush-mount design that blends naturally into any décor. This 70-volt ceiling speaker provides excellent background and foreground music, high-level paging, or announcements. With a front-accessible built-in 70V transformer and an 8-ohm bypass, the C8 offers optimal flexibility, perfect for offices, retail stores, restaurants, classrooms, conference rooms, and other commercial environments.
Full-Range Powerful Sound
The C8 contains an 8" paper cone woofer and a 1" silk dome tweeter for maximum efficiency with focused dispersion and excellent low-frequency extension. A 94dB sensitivity and 60-watt power handling capability maintain superb performance in demanding commercial audio applications. With a broad 55Hz - 20kHz frequency range, this 70V in-ceiling speaker delivers superior vocal intelligibility and full-range uncolored music reproduction. The C8 employs high-quality materials featuring an ABS enclosure with an iron backcan and a power-coated iron mesh grill for lasting durability.
Easy Installation and Adjustments

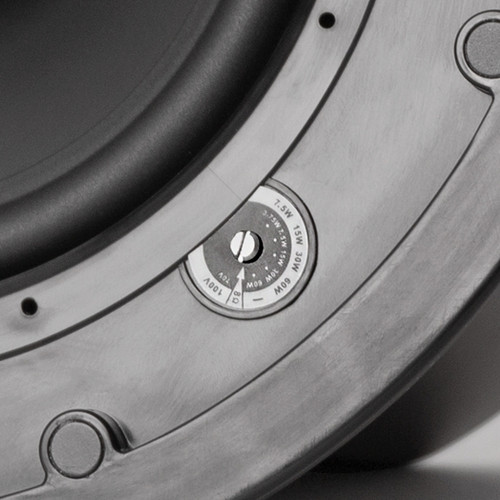

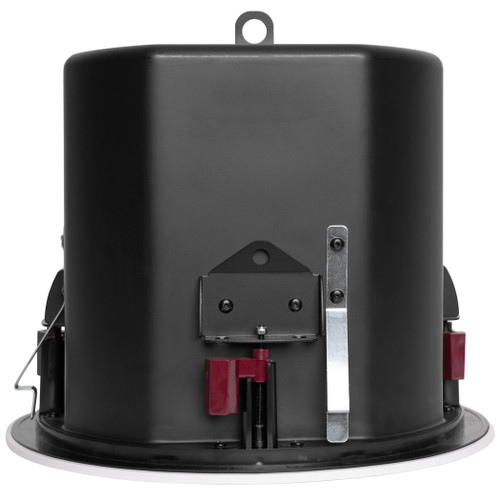

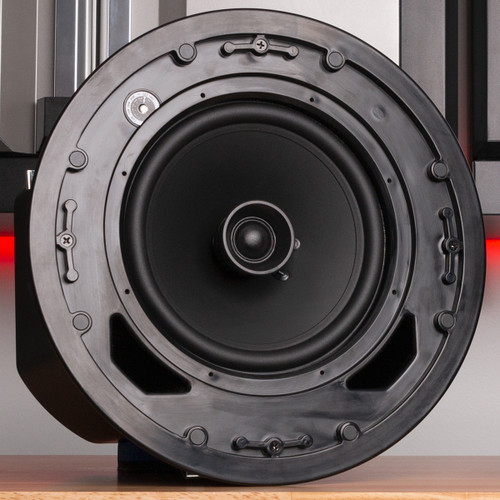

The C8’s removable bezel-less magnetic grill allows easy access to the front-mounted tap setting switch for effortless adjustment. The easy installation support system facilitates time-saving and hassle-free integration. Simply push the speaker into the ceiling cutout, and the spring-loaded supports will lock and hold the speaker into place, freeing both hands to complete the installation. The available tile bridge should be used for additional support when mounting in drop tile ceilings (sold separately).
- Features
Features
- Flush-Mount Design - Intelligent and sleek flush-mounted design with a bezel-less grill to seamlessly blend into any aesthetic
- Robust 2-Way Sound - The durable ABS enclosure with an iron back barrel contains an 8" paper cone woofer and a 1" silk dome tweeter with focused dispersion offering significant low-frequency extension and superior voice intelligibility
- Versatile - Maximum efficiency and flexibility produce high-quality background and foreground music, powerful paging, and announcements perfect for various demanding commercial applications
- Powerful Performance - Full-range high-output sound with 60-watt power handling capability, 94dB sensitivity, and a broad 55Hz - 20kHz frequency range provide quality audio output

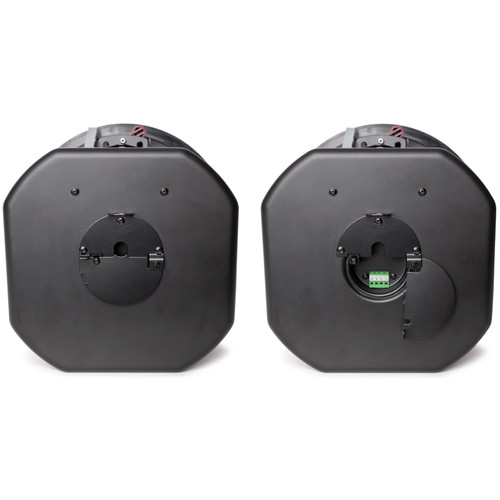

- Front Access Tap - Designed with the installer in mind, the C8 features a 70-volt / 100-volt multi-tap transformer with an 8-ohm bypass on the front and a recessed 4-pin Euroblock terminal connector on the back
- Quick & Easy Install - The removable magnetic grill and spring-loaded installation support system allow for effortless installation and tap setting adjustments. A tile bridge is also available (sold separately) for secure mounting in drop tile ceilings
- Specification
Impedance 8 Ohms Frequency Response 55Hz - 20kHz RMS Power Rating 60 Watt Transformer Taps 3.75W, 7.5W, 15W, 30W, 60W @ 70V
7.5W, 15W, 30W, 60W @ 100V
8 Ohm BypassLow-Frequency Driver 8" Woofer High-Frequency Driver 1" Silk dome tweeter Speaker Cone Material Paper Sensitivity SPL 94±3dB @ 1W/1 m Material ABS enclosure with iron back barrel and power-coated iron mesh magnetic grill Cutout Size 11.5" (292 mm) Dimensions (Dia x D) 12.6" (320 mm) x 9.65" (245 mm) Shipping Dimensions 14.96" (380 mm) x 14.96" (380 mm) x 13.19" (335 mm) Weight 11.68 lbs (5.3 kg) Shipping Weight 17.2 lbs (7.8 kg) - Documents
