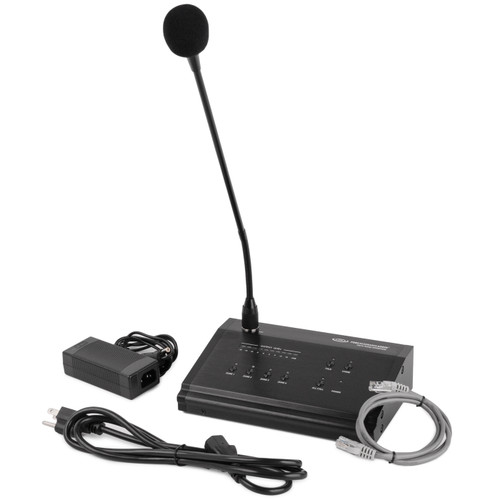

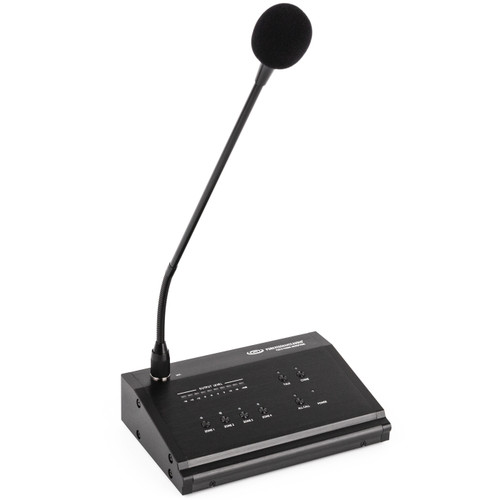

Pure Resonance Audio PMZ16 Condenser Paging Microphone with Zone Control
for use with the RZMA Multi-Zone Mixer Amplifiers Only
Paging Microphone with 4 Zone Capacity
The Pure Resonance Audio PMZ16 is a remote paging microphone with 4 zone capacity design for use with the RZMA mixer amplifiers only. Linked by RJ45 port through shielded CAT5 cable, up to 6 microphones can be cascaded together for one amplifier. The microphone with zone control has a built-in two and four tone chime selector and is powered by the amplifier at 24V DC.
Page a Single Zone, Group of Zones, or All Zones
The zone control station allows you to page each of your zones independently or all zones simultaneously. Then PMZ16 also gives you the capacity to create groups of zones, allowing you to communicate with individual zones, group zones or all zones with the push of a button. The maximum communication distance of the microphone is 500'
Control Zones, Pages, Volume, and More from Microphone Station
The PMZ16 features four zone selector buttons, an all call button, talk, and chime buttons, as well as a 10 segment level meter to display the output level. It also includes a built-in microphone, chime, and master volume control. Volume gain can be adjusted by the volume control on the rear panel. When the call confirmation button is turned off, the call confirmation indicator will be off, and there will be no call signal output. It has online function and an online interface for LINK IN LINK OUT, as well as a built-in independent switching power supply.
