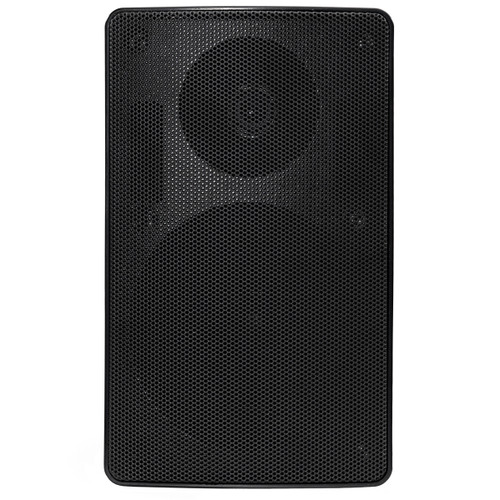

Pure Resonance Audio S6 6.5" 70 Volt Indoor/Outdoor Surface-Mount Speaker - Black
Usually arrives in 5-9 business days.
The Pure Resonance Audio S5 is a 70V surface mount outdoor loudspeaker featuring a stylish and durable weather-resistant design. This all-weather loudspeaker is built to withstand the environmental demands of outdoor installations, delivering high-quality audio performance in a wide variety of indoor and outdoor commercial applications. A tough Acrylonitrile Butadiene Styrene (ABS) housing with UV protection provides outstanding impact resistance. IP65 water-resistant rated, this commercial outdoor speaker is fully dust-tight and protected against low-pressure water jets from a 0.25 inch (6.3 mm) nozzle and direct exposure to water such as rain from any direction. The S5 70-volt surface mount speaker is an ideal solution for patios, decks, poolside areas, and challenging indoor environments such as spas, indoor pools, shower rooms, clean rooms, and any location with high moisture or water exposure.
The Pure Resonance Audio S5 70-volt outdoor speaker produces superior sound quality from a resilient, long-lasting design. While handling 40 watts of continuous power, the S5 delivers a full-range frequency response of 90 - 16kHz and an average sensitivity of 92 dB SPL. The weather-resistant enclosure includes a 4.5" low-frequency polypropylene cone driver for strong low-end performance and a 0.75" high-frequency driver for excellent clarity. The polypropylene (PP) cone woofer offers low moisture absorption, UV resistance, and low distortion for consistent, stable performance in any environment. A rubber surround enhances durability and long-term reliability.
The S5 commercial outdoor surface-mount loudspeaker is ideal for foreground and background music, paging, and general-purpose audio in restaurants, bars, cafes, hotels, boutiques, retail stores, fitness centers, classrooms, training rooms, conference rooms, and corporate AV applications. Designed for distributed audio systems, the S5 features a built-in 70V/100V transformer with selectable tap settings, an 8-ohm bypass, and a Phoenix Euroblock 4-pin screw terminal connector. Installation is fast and simple using the included 180-degree mounting bracket, making it easy to mount under awnings, overhangs, press boxes, and other surfaces.
| Power Rating | 40 Watts RMS; 120 Watts Peak |
|---|---|
| Frequency Response (±10 dB) | 90Hz - 16kHz |
| Sensitivity (@ 1w/1m) | 92 dB |
| Max SPL | 102 dB |
| Dispersion (H x V) | 110° x 110° |
| Impedance | 8 Ohms |
| Transformer Taps | 70V: 2.5W, 5W, 10W, 20W, 40W 100V: 5W, 10W, 20W, 40W 8 Ohm Bypass |
| Woofer | 4.5" Polypropylene (PP) |
| Tweeter | 0.75" Silk |
| Grille | Metal |
| Material | ABS enclosure with UV protection |
| Protection Rating | Water-resistant IP65 |
| Connection | 4-pin Euroblock |

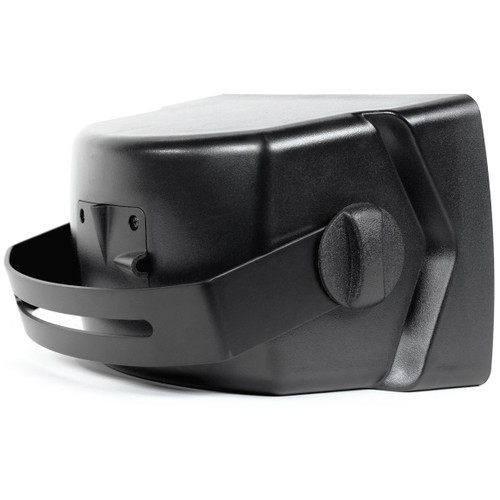

| Mount | 180° Surface mount bracket |
| Dimensions (H x W x D) | 9.45" (240 mm) x 5.71" (145 mm) x 5.63" (143 mm) without bracket 9.45" (240 mm) x 5.71" (145 mm) x 7.48" (190 mm) with bracket |
| Net Weight | 4.85 lbs (2.2 kg) |
| Shipping Weight | 6 lbs (2.75 kg) |
