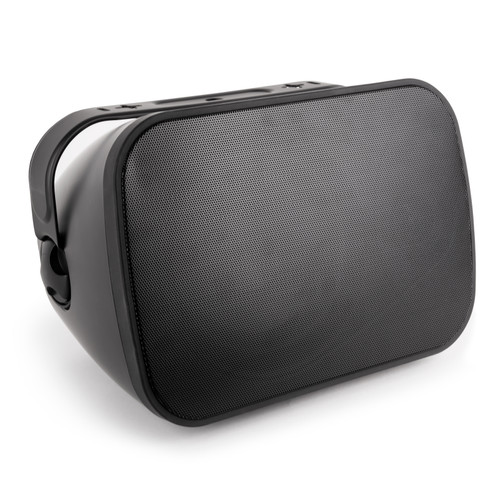

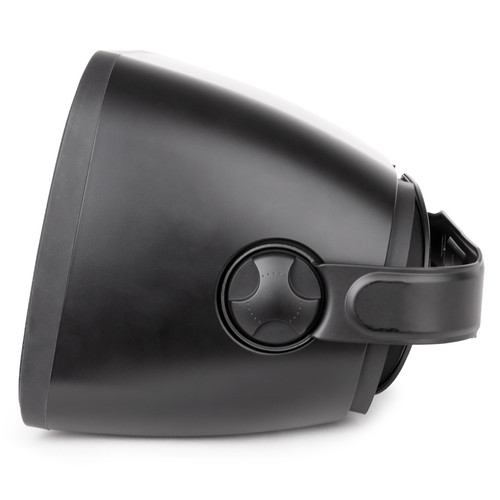

Pure Resonance Audio S6.1 6.5" Premium 70 Volt Indoor/Outdoor Surface Mount Speaker

Part #:
S6.1
Model #:
S6.1
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The Pure Resonance Audio S6.1 is a durable, all-weather 70V surface mount loudspeaker with a 6.5" graphite woofer, 1" silk tweeter, and built-in 70V/100V transformer. Its IP65-rated UV-protected enclosure and OBE technology deliver premium audio quality with enhanced bass, ideal for indoor and outdoor use in restaurants, retail, fitness centers, and more.

Description

Pure Resonance Audio S6.1 Premium 6.5" 70 Volt Indoor/Outdoor Surface Mount Speaker

70-Volt Outdoor Surface Mount Speaker

The Pure Resonance Audio S6.1 all-weather loudspeaker offers premium audio performance from an elegant but durable surface mount enclosure. The S6.1 delivers crystal clear sound for foreground or background music, paging, public address, and general-purpose audio in indoor and outdoor commercial applications. IP65-rated (when the cover is installed and the speaker is mounted correctly), this 70-volt outdoor speaker is fully dust-tight and protected against direct contact with water or rain. A rugged Acrylonitrile Butadiene Styrene (ABS) housing and mesh metal grille provides outstanding impact resistance and long-term durability. Anti-UV materials added to the shell prevent fading in sunlight, making the S6.1 ideal for patios, decks, poolside, or high-moisture indoor environments that require superior speech intelligibility and outstanding music reproduction.

Premium Quality Performance

The S6.1 commercial outdoor speaker produces 40 watts of continuous performance and high-fidelity audio with clean and clear vocal reproduction. The durable, functional design includes a 1” high-frequency silk soft dome tweeter for superb clarity and a 6.5” graphite low-frequency woofer for strong low-end with lower distortion, increased bandwidth, and improved transient response. Exclusive OBE (Optimal Bass Enhancement) radiator technology provides an enhanced rich sound, outstanding full-range frequency response of 70Hz - 20kHz, and an average sensitivity of 87 dB SPL.

Convenient Commercial Installation

This 70-volt outdoor surface mount loudspeaker is designed for exceptional performance and ultimate installation convenience in restaurants, bars, retail stores, shopping malls, sports facilities, hotels, casinos, hospitality venues, health and fitness clubs, amusement and theme parks, Houses of Worship, schools, conference rooms, presentation spaces, corporate meeting rooms, conference centers, and other commercial audio distributed sound systems. Unique rear covers protect the Phoenix Euroblock 4-pin screw terminal connector and a built-in 70-volt/100-volt switchable transformer with taps ranging from 2.5W to 20W and an 8-ohm bypass selector. Installation is quick and easy with the provided waterproof bracket with horizontal and vertical notches for two surface mounting options on walls, under awnings, overhangs, press boxes, and more.

Features

  • Weather-Resistant - The all-weather IP65-rated (when properly installed) construction protects against direct contact with water and dust, while the UV protection and strong ABS housing prepare the S6.1 for long-term durability in demanding indoor and outdoor conditions
  • High-Quality Performance - A 6.5" graphite woofer and 1" silk soft dome tweeter paired with exclusive OBE (Optimal Bass Enhancement) radiator technology deliver an enhanced low-end for 70Hz - 20kHz full-range frequency response, lower distortion, increased bandwidth, and improved transient response at 40-watts with 87 dB SPL sensitivity
  • Elegant Design - The streamlined and elegant housing is thoughtfully designed with an extra touch of modern sophistication
  • Built-In Transformer - The unique rear cover protects the Phoenix Euroblock screw terminal connector and the built-in 70 Volt/100 Volt tap transformer with an 8-ohm bypass selector providing added versatility and weather resistance
  • Multi-Functional - Perfect for foreground and background music, paging, announcements, and general-purpose audio in indoor and outdoor commercial applications
  • Flexible Mounting  - Quickly installs with the included water-proof surface mounting bracket for horizontal or vertical mounting on walls or under awnings, overhangs, and more

Specifications

Power Rating 40 Watt RMS
120 Watt Peak
Frequency Response (±10 dB) 70Hz - 20kHz
SPL (@ 1W/1M) 87 dB
Impedance 8 Ohms
Transformer Taps 2.5W, 5W, 10W, 20W @ 70V
5W, 10W, 20W, 40W @ 100V
8 Ohm Bypass
Woofer 6.5" graphite woofer
Tweeter Size 1" silk soft dome tweeter
Material ABS enclosure and metal grill
Protection Water-resistant IP65
Mount Waterproof surface mount bracket
Dimensions (H x W x D) 11.22" (285 mm) x 7.8" (198 mm) x 7.68" (195 mm)
Net Weight 7.61 lbs (3.45 kg)
Shipping Weight 9 lbs (4.08 kg)

DOCUMENTS

In The Box

  • (1) S6.1 Premium 70V Surface Mount Loudspeaker
  • (1) Surface Mount Bracket
