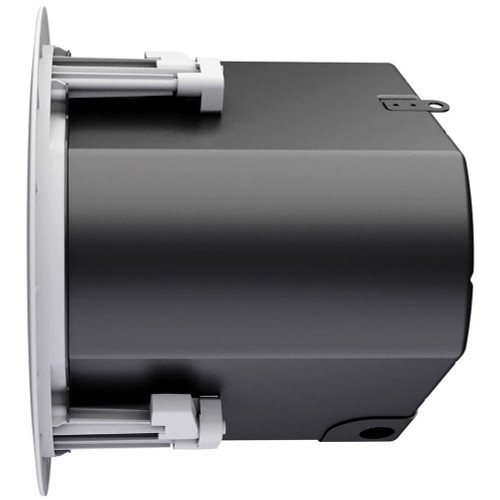

QSC AD-C6T-HP AcousticDesign 6.5" 2-Way High-Power Ceiling Loudspeaker 70/100V with 16-Ohm Bypass - Pair

QSC AD-C6T-HP AcousticDesign 6.5" 2-Way High Power In-Ceiling Speakers

The AD-C6T-HP is a 6.5-inch, 2-way ceiling-mount loudspeaker designed for high-energy venues with standard ceiling heights. It delivers high power handling and a wide 120° coverage pattern, ensuring even, full-range sound across a broad area. Engineered for seamless integration, it shares consistent tonal characteristics with the entire QSC AcousticDesign Series, allowing installers to mix and match form factors throughout a venue without compromising sonic uniformity.

The loudspeaker features a clean, modern aesthetic with a snap-fit magnetic grille and a robust 3x double-stepped, long-travel dog-ear blind mount system for secure and efficient installation. Advanced Intrinsic Correction™ voicings are available via Q-SYS™, enabling optimal performance and simplified system tuning. It supports both 16 Ω bypass and multiple transformer taps for 70/100 Vrms distributed audio systems, providing flexibility for various installation requirements. The AD-C6T-HP is available in white (RAL 9010) to match most ceiling finishes.

• Higher power handling at standard ceiling heights to enable high-energy venues
• Consistent tonal characteristics across the entire AcousticDesign Series let you mix and match form factors across your venue
• Snap-fit magnetic grille
• 3x double stepped, long travel dog-ear blind mount system
• Advanced Intrinsic Correction™ voicings available via Q-SYS™
• 16 Ω bypass with multiple transformer taps for 70/100 Vrms systems
• 120° coverage pattern
• Available in white (RAL 9010)
