Ease-of-installation is the driving principle behind QSC’s next generation of small format, surface mount loudspeakers. Innovations found on AD-S loudspeakers enable designers and integrators to quickly and easily specify and install a system. AD-S loudspeakers are also a perfect solution to serve ancillary loudspeaker needs as part of a larger installed sound system.

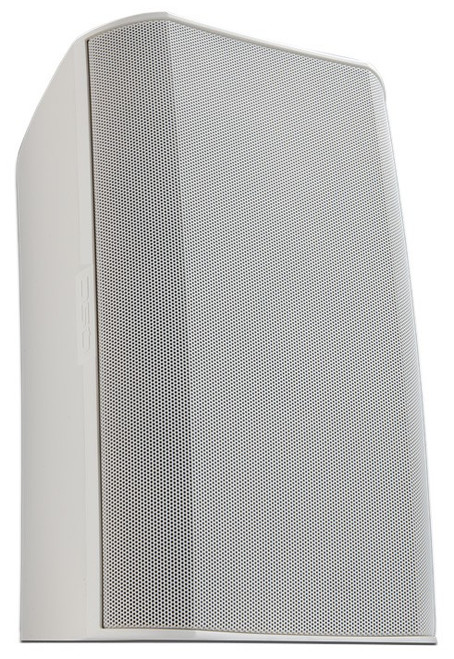

Housed in rugged ABS enclosures for long-term durability, S10T loudspeakers employ DMT™ (Directivity Matched Transition) which matches the LF and HF coverage at the crossover point. This ensures even coverage across the listening plane for smooth, coherent audio reproduction. The 1.4in diaphragm, 1-in exit compression driver on the S10T delivers crisp, detailed high-frequency reproduction and when combined with the matched woofers, provides full bandwidth reproduction. To further enhance performance, tunings using QSC Intrinsic Correction techniques are available for Q-Sys and future QSC amplifiers. Moreover, the low saturation transformers offer premium performance on 70/100V distributed audio lines.
Installers will appreciate flexible mounting options. Euroblock connectors allow pre-wiring of the system and the included
X-Mount hardware enables the installer to mount the bracket and then simply lift the loudspeaker onto the mount and lock it into place. Moreover, the loudspeaker can attach to its mount on any plane to facilitate multiple deployment configurations.
AD-S loudspeakers can easily be mounted to any weight bearing, flat surface. Knurled surfaces on the mount’s pivot points ensure that the loudspeaker deployment angle stays fixed and will not slip over time. No special tools are required to install or adjust the loudspeaker angle. S10T models also feature M10 installation points for suspending the loudspeaker via eye-bolts as well as mounting points for an optional yoke bracket.
| Effective frequency range | 50 – 19k Hz |
|---|---|
| Rated noise power / voltage | 250 watts / 45 volts (rms) |
| Broad-band sensitivity | 92 dB SPL |
| Coverage angle (-6 dB) | 90° |
| Directivity factor (Q) | 7 |
| Directivity Index | 10 dB |
| Maximum continuous SPL | 116 dB |
| Maximum peak SPL | 122 dB |
| Rated impedance | 8 ohms |
| Recommended amplifier power | 500 watts |
| Transformer taps | 70 V: 100, 50, 25, 12.5 watts and 8 ohm bypass; 100V: 100, 50, 25 and 8 ohm bypass |
| HF transducer /LF transducer | 1” exit/1.4” voice-coil compression driver;10” weather resistant woofer;2.5”/64 mm voice-coil |
| Input connector type | Euroblock connector with parallel output terminals |
| Enclosure material | Painted ABS polymer |
| Grille material | Powder coated aluminum |
| Ingress protection | IP-54 |
| Operating environment | Designed for indoor and outdoor use |
| Operating Temperature Range | -20 to 50 °C / -4 to 122 °F |
| Net weight | 31 lbs / 15 kg |
| Product dimensions | 20.3” x 12.5” x 11.7” (516 x 318 x 298mm) |
| Shipping dimensions | 31.7” x 16.1” X 16.1” (805 x 409 x 409mm) |
| Shipping weight | 40.6 lbs(18.45 kg) |
