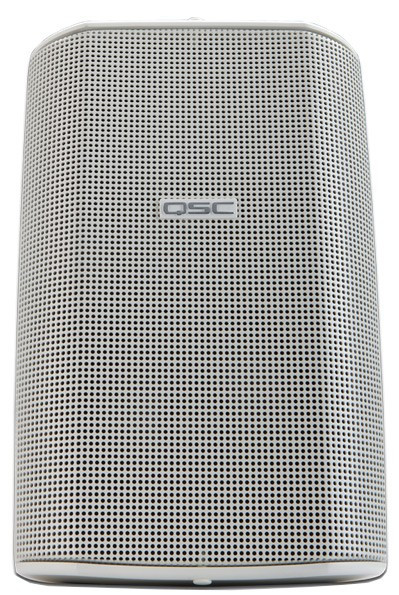

QSC AD-S52 AcousticDesign 5.25 inch 2 Way Wall Mount Loudspeaker - Pair (Discontinued)

By QSC Audio

QSC AD-S52 AcousticDesign 5.25 inch 2 Way Wall Mount Loudspeaker - Pair (Discontinued)

Name: QSC AD-S52 AcousticDesign 5.25 inch 2 Way Wall Mount Loudspeaker - Pair (Discontinued)
Brand: QSC Audio
SKU: QSC-AD-S52

Write a Review

Part #:

AD-S52

Model #:

AD-S52

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The QSC AD-S52 is a full range, surface mount loudspeaker with sleek, contemporary styling that fits perfectly into multiple environments and applications including hotels, restaurants, convention facilities.

Description

The QSC AD-S52 loudspeaker's low frequency driver is magnetically shielded, making it perfect for use near video monitors. Available in black or white, these great sounding, weather resistant enclosures can be painted to match any specific decor.

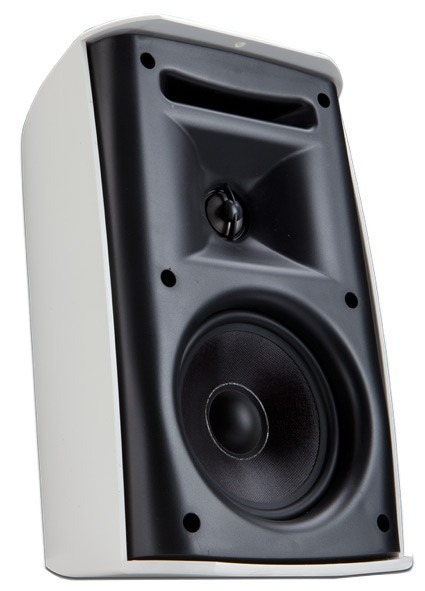

The AD-S52 is a high output, 2-way design incorporating a 5.25" weatherproof, LF transducer and a 1" neodymium tweeter. This exceptional loudspeaker carries the added benefit of built-in dynamic power protection - thus ensuring system reliability in the event of overload conditions.

The AD-S52 system package includes a ball mount assembly for convenient installation of the enclosure in a wide variety of orientations. If desired, the ball mount adapter's back plate can be removed, reducing the overall depth of the assembly and the footprint of the mount on the wall. Further, the assembly includes a weather resistant input connection cover to protect the 5-way binding post input terminals.

Features

5.25 Inch, 2-way Design - in a lightweight, contemporary styled multipurpose enclosure
Magnetically Shielded LF Transducer - ideal for use near video monitors
Flexible Ball Mount Assembly Included - for convenient installation
70V/100V Transformer Versions Available - for use with distributed audio systems
Available Optional Yoke Mount Bracket

Specifications

Transducers
Configuration	Compact two way, ported enclosure
Low Frequency Transducer	5.25" shielded, weather-resistant
High Frequency Transducer	1" neodymium tweeter
Frequency Response (±3 dB)	75 Hz - 19 kHz
Useable Frequency Range (-10 dB)	60 Hz - 20 kHz
Maximum Output	Continuous: 104 dB SPL, Peak: 110 dB SPL
Nominal Impedance	8 ohms
Power Rating	60 W (IEC, 100 hours)
Recommended Max Amp Power	120 W RMS
Sensitivity	86.5 dB, 2.83 V, 1 m, free field (4pi)
Nominal Coverage	90° H x 90° V
Enclosure
Material	Injection molded, weather resistant,high impact polystyrene
Finish	White or black (paintable)
Weather Resistance	Yes
Grille	Heavy duty powder coated aluminum
Connectors	Pair of 5-way binding posts
Mounting Hardware	Included ball mount assembly; available optional yoke mount
Net Weight	15 lbs (6.8 kg)
Weight Shipping	22 lbs (10 kg)
