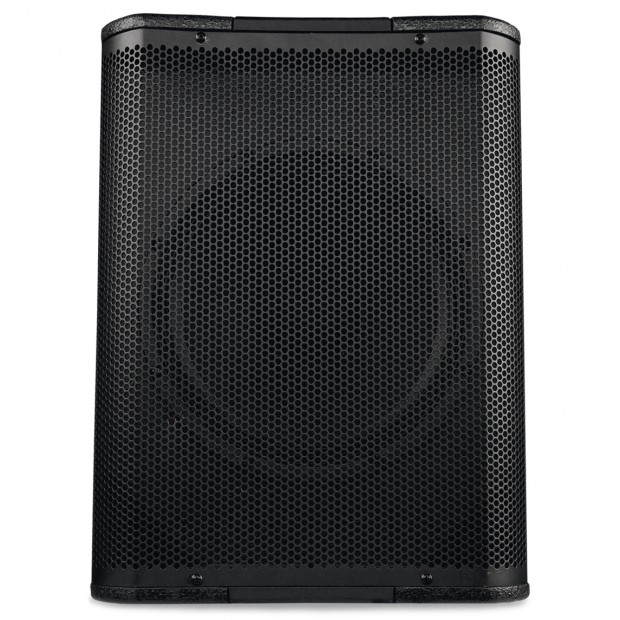

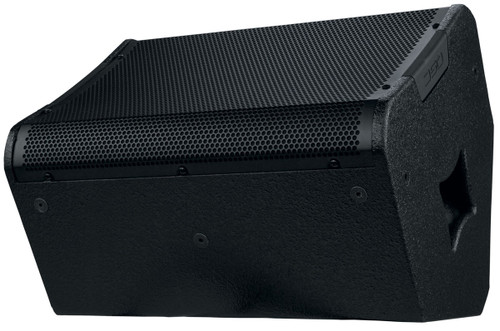

QSC AP-4122m AcousticPerformance 12 inch 2 Way Coaxial Loudspeaker (Discontinued)

By QSC Audio

QSC AP-4122m AcousticPerformance 12 inch 2 Way Coaxial Loudspeaker (Discontinued)

Name: QSC AP-4122m AcousticPerformance 12 inch 2 Way Coaxial Loudspeaker (Discontinued)
Brand: QSC Audio
SKU: QSC-AP-4122M
Price: 1465 USD
Availability: OutOfStock

Write a Review

Part #:

AP-4122m

Model #:

AP-4122m

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Description

The QSC AcousticPerformance AP-4122m is a professional, two-way, fullrange loudspeaker ideal for a variety of portable and installed sound reinforcement applications requiring high power, wide coverage and compact size. The AP-4122m uses a 305mm (12-inch) woofer with 64mm (2.5-inch) voice-coil and a coaxially mounted high power-capacity, 44mm (1.75-inch) voice coil compression driver to deliver exceptional full bandwidth reproduction. The uniform power-response of the AP-4122m is a result of DMT (Directivity Matched Transition), a design philosophy which matches the HF waveguide to the natural conical coverage of the woofer at the cross-over point. The result is a remarkably consistent coverage with smooth, accurate reproduction both on and off-axis.

Features

DMT (Directivity Matched Transition) in 2-way models ensures smooth, coherent power response across the listening plane
3” diaphragm compression driver (1.75" on AP-4122m) delivers a clean and powerful high frequency response
M10 fittings and yoke mount fittings offer flexible deployment options for a variety of applications
Pole cup (AP-5122m and AP-4122m)
Two M20 pole attachment points on AP-212sw
Clean industrial design with unadorned grilles complement most decors and settings

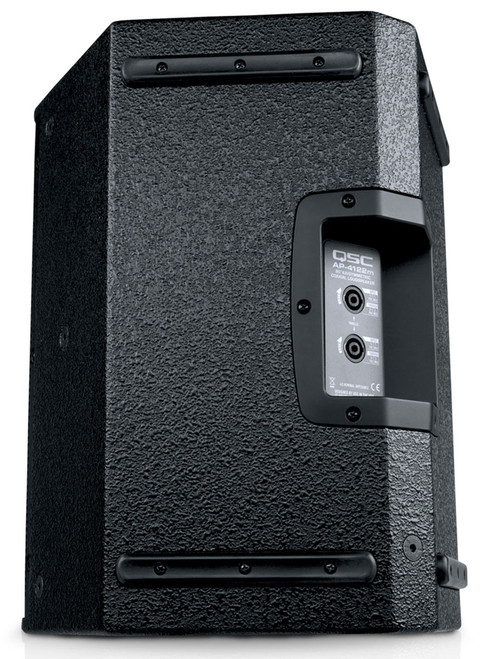

NL4 Speakon connector (two on AP-4122m and AP-212sw) and covered barrier strip terminals (except AP-4122m and AP-212sw)
Bi-amp / passive switchable (passive only on AP-4122m), except AP-212sw subwoofer
Constructed from 15-ply Baltic birch plywood (15 mm Baltic birch plywood on AP-4122m and AP-212sw)
16-gauge powder coated steel grilles
Available in black (RAL 9011) and white (RAL 9010) (black only on AP-4122m and AP-212sw)
Complete EASE, CAD & BIM information available online

Specifications

Frequency Response (-10 dB)	55 Hz - 20 kHz
Rated Noise Power / Voltage	325 Watts / 36 Volts rms
Broadband Sensitivity	96 dB SPL
Coverage Angle	90˚ Conical DMT
Directivity Factor (Q)	6.3
Directivity Index (Di)	8
Recommended Crossover	N/A
Maximum SPL at 1 M (Passive)	121 dB Continuous 127 dB Peak
Rated Impedance	4Ω
HF Transducer	45 mm (1.75") Voice Coil, Compression Driver
LF Transducer	305 mm (12") Driver with 64 mm (2.5") Voice Coil
Optional Accessories	AP-YM12M Yoke Mount M10 Kit-W Eye Bolt
Input Connector	Two NL4 Connectors
Enclosure Material	15 mm Baltic Birch Plywood
Attachment Points	Eleven M10 Threaded Inserts
Color	Black (RAL 9011)
Grille	16-Gauge Powder Coated Steel
Dimensions (H x W x D)	22.5" (510 mm) x 15.1" (385 mm) x 14.5" (370 mm)
Net Weight	39.7 lbs (18.1 kg)
