The E Series loudspeakers will perform very well with any quality, professional power amplifier – but by taking advantage of the complete E Series Entertainment System, more performance and options are available.

Description

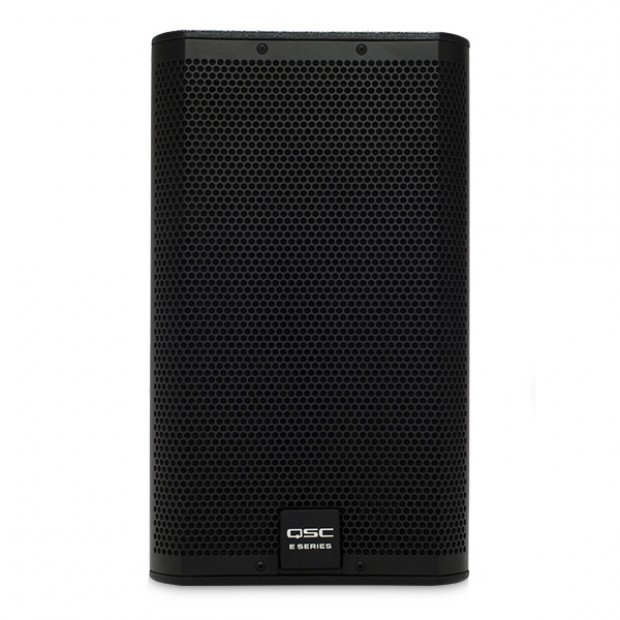

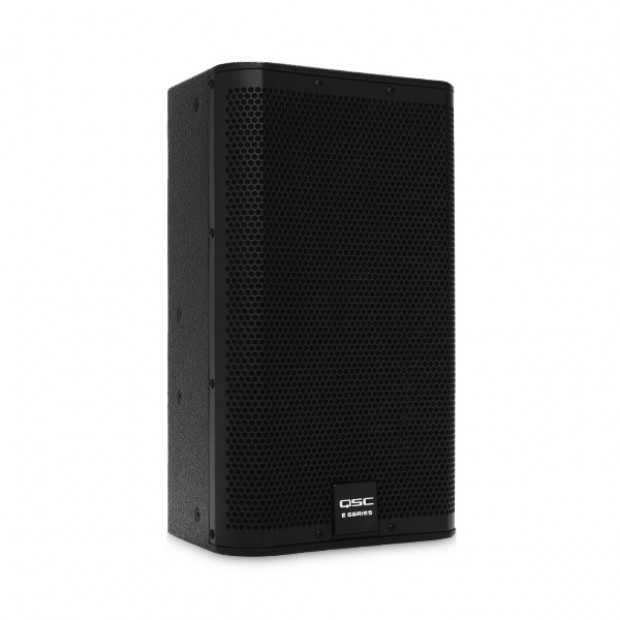

The E10 is a compact, two-way loudspeaker with a 10-inch, die cast frame woofer with a 2.5-inch voice-coil housed in a multi-purpose enclosure that’s at home in stage monitor or main PA deployment. It incorporates QSC’s DMT (Directivity Matched Transition) design with a wide 85° coverage. When used as a stage monitor, the E10 is angled up at a 55° angle allowing it to be placed near the performer when used on a crowded stage.

E Series loudspeakers will perform very well with any quality, professional power amplifier – but by taking advantage of the complete E Series Entertainment System, more performance and options are available. Today’s powered loudspeakers rely on finely tuned digital signal processing (DSP) to achieve a higher level of performance. When used with QSC GXD or PLD amplifiers or with a QSC TouchMix digital mixer, E Series loudspeakers can also take advantage of advanced DSP. QSC has developed E Series DSP settings for all three platforms. These settings support a variety of applications including live sound reinforcement (with and without subwoofers), stage monitoring, dance music and karaoke.

Features

  • High output, professional quality sound with 300W continuous power
  • Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers
  • E Series Entertainment System DSP Tunings are now available for PLD, CXD and GXD processing amplifiers:
    • For PLD/CXD visit Amplifier Navigator Software
    • For GXD visit the GXD Firmware Updater
  • Rugged tour-grade textured paint
  • Foam-lined perforated steel grill
  • Suitable for main PA and stage monitor
  • Available U-Style Yoke and M8 rigging kit for permanent installation
  • Dual angle pole socket

Specifications

Configuration 1 x 10", 2-way, non-powered
Frequency Range (-6 dB) 68Hz – 20kHz
Power Capacity Continuous/Peak 300W / 1200W
Sensitivity 95dB, 1W @ 1m
Coverage Angle 85° conical DMT
Ouptut (Peak SPL @ 1m) 126dB
Drivers LF: 10" (254 mm) driver with 2.5" (64 mm) voice coil
HF: 1" (25 mm) exit, 1.75" (45 mm) voice coil, compression driver
Nominal Impedance
Cross-Over Full range only, 1.8kHz

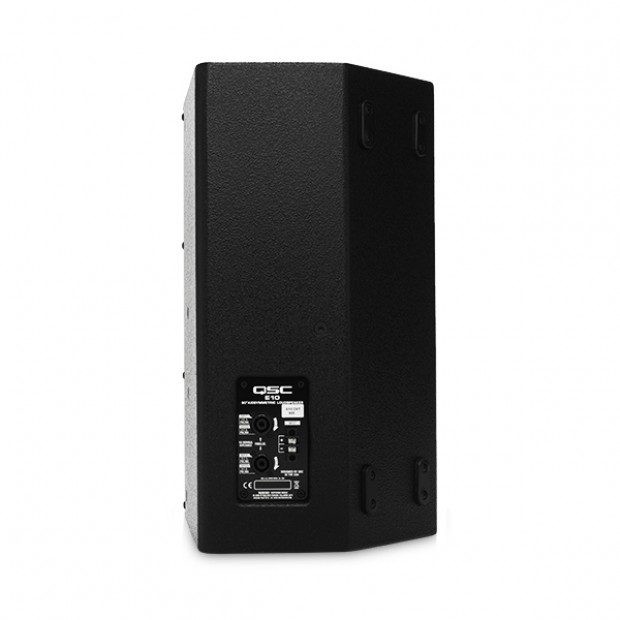

Input Connections 2 x NL4, 1 x barrier strip
Enclosure Trapezoidal, plywood, black texture paint finish. Two side-mounted handles. Perforated, powder-coated steel grille with foam lining
Mounting and Suspension 6 x M8 suspension points, dual angle, 35mm pole-socket
Dimensions (H x W x D) 22" (560 mm) x 13" (330 mm) x 13" (330 mm)
Net Weight 44 lbs (20 kg)
Shipping Weight 50 lbs (23 kg)
