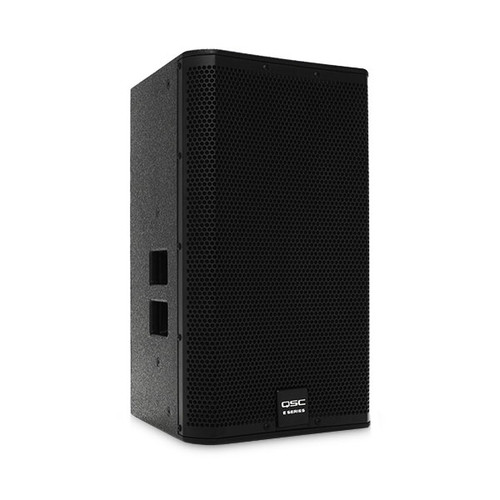

QSC E12 E Series 12 inch 2 Way Passive Loudspeaker 400 Watts (Discontinued)

QSC E12 E Series 12 inch 2 Way Trapezoidal Passive Installation Loudspeaker

The QSC E12 is a trapezoidal, two-way loudspeaker using a 12-inch die cast aluminum woofer with a 3-inch voice-coil. The 15 mm, 11-ply enclosure provides enough volume to deliver solid low-frequency extension down to 65 Hz making it an excellent choice for applications in which space or budget preclude the use of a subwoofer. The DMT coverage angle of 85° is ideal for most medium and medium-long throw applications.

E Series loudspeakers will perform very well with any quality, professional power amplifier – but by taking advantage of the complete E Series Entertainment System, more performance and options are available. Today’s powered loudspeakers rely on finely tuned digital signal processing (DSP) to achieve a higher level of performance. When used with QSC GXD or PLD amplifiers or with a QSC TouchMix digital mixer, E Series loudspeakers can also take advantage of advanced DSP. QSC has developed E Series DSP settings for all three platforms. These settings support a variety of applications including live sound reinforcement (with and without subwoofers), stage monitoring, dance music and karaoke.

• High output, professional quality sound with 400W continuous power
• Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers
• E Series Entertainment System DSP Tunings are now available for PLD, CXD and GXD processing amplifiers:
• For PLD/CXD visit Amplifier Navigator Software
• For GXD visit the GXD Firmware Updater
• Rugged tour-grade textured paint
• Foam-lined perforated steel grill
• Available U-Style Yoke and M8 rigging kit for permanent installation
• Dual angle pole socket

Spec Sheet
