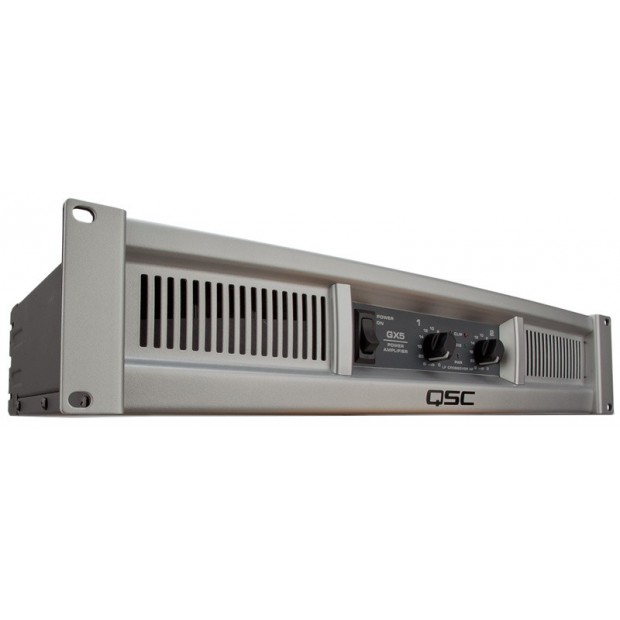

QSC GX5 500 Watts Per Channel 8 Ohm Stereo Power Amplifier (Discontinued)

QSC GX5 500 Watts Per Channel 8 Ohm Stereo Power Amplifier (Discontinued)

Name: QSC GX5 500 Watts Per Channel 8 Ohm Stereo Power Amplifier (Discontinued)
Brand: QSC Audio
SKU: QSC-GX5
Price: 699.99 USD
Availability: OutOfStock

Write a Review

Part #:

GX5

Model #:

GX5

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The QSC GX5 power amplifier uses a Class H system, based on key elements of the PL Series, (PLX, PL3, CX, DCA) almost doubling power in the same size and weight. QSC design expertise allows the output devices to shift from low-power to high-power rails in less than a millionth of a second, ensuring that the output power is always right.

Description

The GX5 power amplifier is ideal for professional entertainers who require maximum performance and portability on a limited budget. The hallmarks of the QSC brand - professional audio quality, meticulous engineering, precision manufacturing and long-term reliability - are all intrinsic to GX. Add contemporary styling, multiple input/output options, light weight, and advanced protection circuitry, and the GX Series clearly represents real value - something everyone can use.

GX amplifiers deliver just the right amount of power to the most popular speakers used by entertainers. Typically, loudspeaker manufacturers recommend an amplifier with power output equal to the speaker's Program (Music) Power rating or two times (2 x) the Continuous (RMS) Power rating.

The QSC GX5 Power Amplifier uses a Class H system, based on key elements of the PL Series, (PLX, PL3, CX, DCA) almost doubling power in the same size and weight. QSC design expertise allows the output devices to shift from low-power to high-power rails in less than a millionth of a second, ensuring that the output power is always right where it needs to be without excess loss.

Features

Power levels matched to the most popular speakers used by entertainers
Optimized for maximum real-world headroom into 4 ohm and 8 ohm speaker systems
Inputs: XLR, 1/4" TRS and phono input connectors for compatibility with any source
Outputs: Speakon® combo accepts, 1/4" (TS) plugs or Speakon 2-pole and 4-pole plugs (connects 2 poles only)
Binding posts support all other speaker wiring systems
Minimum depth chassis (10.1"/257 mm) fits in compact, inexpensive effects racks
Detented gain controls for precise setting and matching of sensitivity
GuardRail™ automatically protects the amplifier and loudspeakers from damage
Front panel LEDs monitor Power, Signal and Clipping
Subwoofer/Satellite crossover built-in

Specifications

8 ohms / 1 kHz (both channels driven)	500 W
8 ohms / 1 kHz (single channels driven)	600 W
4 ohms / 1 kHz (both channels driven)	700 W
4 ohms / 1 kHz (single channels driven)	850 W
Distortion (typical) 20 Hz - 20 kHz, 1 dB below rated power	8 ohms: less than 0.05%4 ohms: less than 0.1%
Signal to Noise (20 Hz - 20 kHz)	100 dB
Input Sensitivity	1.2 Vrms
Voltage Gain (8 ohms)	34.4 dB
Output Circuitry	2-tier Class H
Power Requirements (1/8 power, pink noise at 4 ohms, 120V)	6A
Frequency Response	20 Hz - 20 kHz, +0, 1 dB
Dynamic Headroom (4 ohms)	2 dB
Input Impedance (ohms)	Greater than 20k (balanced)
Maximum Input Level	+24 dB (16 Vrms)
Input Connectors (each channel)	3-pin XLR and 1/4" TRS, balanced, parallelPhono, unbalanced
Output Connectors (each channel)	Speakon®, 1/4", Binding Posts
Amplifier and Load Protection	Short circuit, open circuit, thermal, RF protectionLoad protected against DC faults
Front Panel Controls and Indicators	Gain controls, 21 detentsRed Clip LEDs, proportional, 0.1% THD thresholdGreen Signal LEDs
Front Panel Controls and Indicators	threshold -35 dB Blue Power LED, AC on
Rear Panel Controls	Full Range / Crossover switch100 Hz, 3rd order LP (sub), 2nd order HP (top)
Dimensions (H x W x D)	3.5" (89 mm) x 19" (483 mm) x 10.1" (257 mm)
Weight	26 lbs (12 kg)
Shipping Weight	31 lbs (14 kg)
