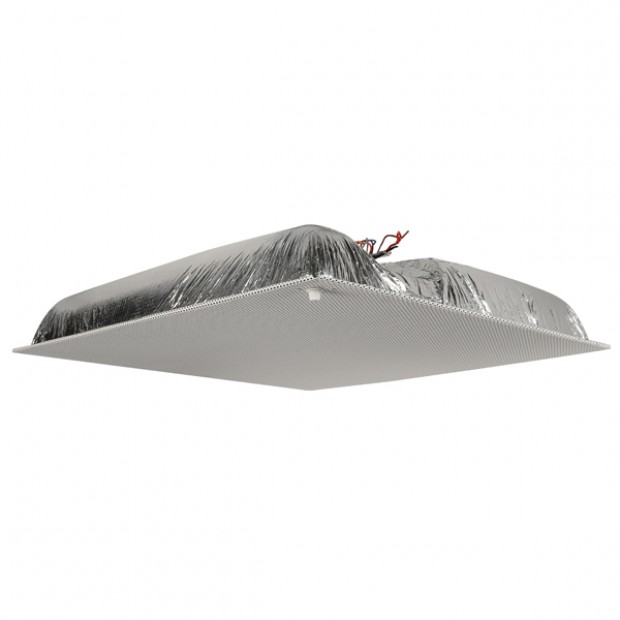

Quam SYSTEM 12/VC Lay In Ceiling Mount Loudspeaker with Volume Control
By Quam Speakers

Quam SYSTEM 12/VC Lay In Ceiling Mount Loudspeaker with Volume Control

Write a Review
Part #:
SYSTEM 12/VC
Model #:
SYSTEM 12/VC
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The Quam SYSTEM12/VC is a complete loudspeaker assembly, with 8" frame, perforated steel baffle and integral back box; 24" x 24" format. Transformer options include a 25/70.7V pigtail; 25/70.7V pigtail with Volume Control; 25V Rotary Select.

Description
The Quam SYSTEM12/VC is a complete loudspeaker assembly, with 8" frame, perforated steel baffle and integral back box; 24" x 24" format. Transformer options include a 25/70.7V pigtail; 25/70.7V pigtail with Volume Control; 25V Rotary Select or a 70.7V Rotary Select.

The assembly finish is a white or black baked epoxy hybrid. It is intended for indoor and sheltered outdoor applications.

Features
  • Complete loudspeaker assembly.
  • 8" frame.
  • Perforated steel baffle.
  • Integral back box.
  • Assembly finish is a white or black baked epoxy hybrid.
  • Intended for indoor and sheltered outdoor applications.

Specifications
Speaker Size 8” frame
Average Sensitivity 92 dB-SPL, 1W/ 1M
Loudspeaker Power Rating 12W RMS, EIA 426A Standard
Calculated Maximum System Output 5W pig-tail xfm, 99 dB-SPL, 5W / 1M 4W Rotary tap xfm, 98 dB-SPL, 4W / 1M
Magnet Type, Weight BeFe Ceramic, 4.8 oz. Nominal
Frequency Response 42Hz - 17 kHz EIA 426A Standard
Nominal Coverage Angle 100° Included angle, -6dB 2 kHz, half space
Audio Connection 7” long, labeled tinned wires, pre-cut
