Renkus-Heinz ICL-FR-DUAL Live Arrays Speaker

Home /
Renkus-Heinz ICL-FR-DUAL Live Arrays Speaker (Discontinued)

Description

Details

IC Live arrays provide an elegant solution to long standing acoustical problems with slim enclosures that blend into any environment. Individual driver control maximizes the acoustical advantages of this design. The result is unsurpassed vertical pattern control – essential for delivering intelligible speech in reverberant spaces. IC Live beams can be steered up or down while the array remains vertical – and nearly invisible.

IC Live arrays are also powerful. Their 6.5 inch neodymium low frequency transducers and 1 inch throat titanium nitride coated high frequency drivers produce surprisingly high sound levels for their size. They are equally at home delivering a quiet sermon in a reverberant cathedral, cutting through the crowd noise in a gym during a close basketball game or shaking the walls with rock music in a club.

IC Live arrays use advanced digital beam steering technology to deliver impeccable sound while staying in the background visually.

Digital beam steering puts IC Live output where it belongs: on the audience, and way from walls and ceilings.

Computer software lets you define the opening angles for as many as four sonic beams from each ICL-FR array module (up to 8 beams from an ICL-FR Dual) and aim them up or down. Meanwhile, the slim enclosure stays vertical and inconspicuous.

Two ICL-FR modules and an ICL-LM-FR module can be stacked for even tighter control and higher output.

Iconyx transparent technology controls sound with the most advanced, intelligent DSP. Multi-channel Class D digital amplifiers with integral DSP engines control every single array element with programmable precision.

High-current audiophile output stages power each individual lightweight, efficient transducer in the Iconyx array. Even at 100 feet, SPL is an impressive 105 dB (108 dB when stacked). Output is flat from 80 Hz to 20 kHz.

Low frequency energy can be extended to 40 Hz or below with matching subwoofers.

Iconyx IC Live arrays are engineered for portable applications, with an easy-to-use interlocking hardware system that makes setup simple.

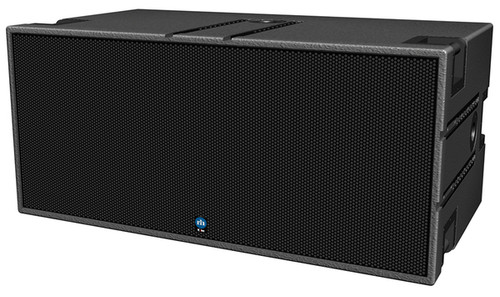

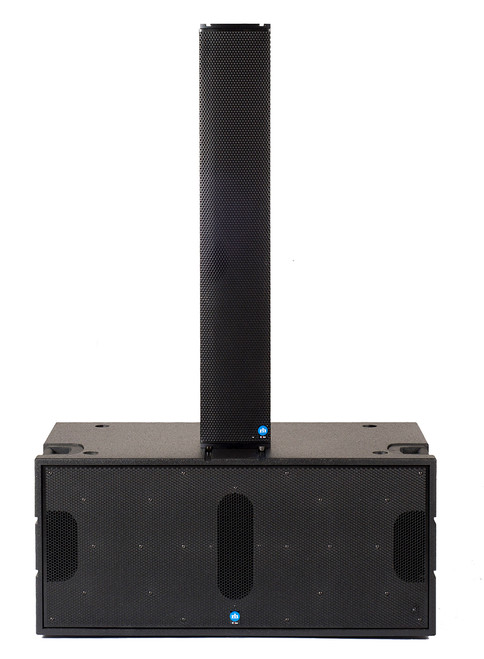

Two IC Live arrays can be combined for added output and control. When full range musical output is important to the program, one or two IC215-S dual 15-inch subwoofers can be added to either array.

RHAON empowered IC Live arrays provide a full set of remote control and supervision functions, along< with the ability to store up to ten preset configurations in memory.

The presets adapt the arrays' 150° wide horizontal coverage for typical applications such as hotel meeting rooms or auditoriums.

For more complex situations, Iconyx BeamWare software makes it easy to shape the array’s coverage to the audience area.

Nine presets (four factory and five custom) can be stored in memory, ready for selection from the rear panel. Simply scroll through them using the Up/Down buttons and indicator LEDs on the rear panel to find the right one for any given room and audience, and you're ready to go.

Features

Features

IC Live for Fixed Installations
Adaptable, Articulate, Invisible
Powerful, Accurate, Musical
Portable, Scalable, Versatile
One-Touch Presets, Intuitive Software

Specification

Sensitivity	1.0V (for Rated Power Output)
Frequency Range	80 Hz to 20 kHz
Max SPL	108 dB Peak @ 100 Ft. (30.5 m) (3-Octave Bandwidth Centered at 2 kHz)
Horiz. Dispersion	150° Up to 3 kHz; 120° Above 3 kHz
Vert. Opening Angles	5°, 10°, 15° and 20°
Aiming Angle	Adjustable From -30° to +30°
Typical Throw	160 Ft. (50 Meters)
Beam Control	Effective Down to 400 Hz
No. Transducers - Each Module	Five 6.5-Inch Cone Transducers with Neodymium Magnets Three 1-inch HF Titanium Nitride Compression Drivers
No. Amp. Channels	8 (Per Module)
Inputs	Analog Audio: 2 Inputs (Primary & Secondary), Phoenix 3-pin Connectors (Looping 3-in, 3-out) CobraNet: Dual RJ45 connectors (for CAT 5 copper cable) AES/EBU: Phoenix Connector
Power Connector	IEC Power Connector
Controls (Rear Mounted)	Mute Button Up & Down Output Level Buttons 10 dB Pad (on Analog 1 Input) Push-To-Reset Circuit Breaker Preset Configuration Selector (10 Configurations)
Computer Controls	Gain, Mute, On/Standby, Input Selection; Compression, 8-Band Parametric EQ, Shelving & Rolloff Filters, Delay, Preset Configuration Selection
Status Indicators	Power, Signal, Overdrive, Thermal, Mute, Input Pad, Preset Configuration Readout
Network Digital Format	16 or 24 bit PCM; 48 or 96 kHz Sample Rate; Selectable Network Latency
Hanging Method	Metric M10 Attachment Points and Hinge Kits
Enclosure	Finnish Birch with Perforated Steel Grille
Finish	Standard Finish: White Paint
Dimensions (H x W x D)	3.5" (89 mm) x 19" (483 mm) x 19" (483 mm)
Weight	29 lbs (13.15 kg)
