Restaurant Sound System with 12 Pure Resonance Audio S5 4.5" Weather-Resistant 70V Speakers and MA120BT 120W Bluetooth Mixer Amplifier

Part #:
RSSS-12S5MA120BT
Model #:
RSSS-12S5MA120BT
Availability: Some Components are Backordered - Contact Us for Comparable Solutions Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

This 70V restaurant sound system includes twelve Pure Resonance Audio S5 4.5" IP65 weather-resistant surface-mount speakers and an MA120BT 120W Bluetooth mixer amplifier. Designed for restaurants, bars, cafes, and patios, it delivers distributed background music and paging with flexible mounting, adjustable speaker taps, and multiple audio inputs.

Description

Inside the Design

Create a welcoming atmosphere and deliver clear, evenly distributed music throughout your restaurant with this Pure Resonance Audio commercial sound system. Designed for restaurants, bars, cafes, coffee shops, dining rooms, covered patios, and other hospitality environments, this complete 70V system features twelve S5 4.5" weather-resistant surface-mount speakers and an MA120BT 120W Bluetooth mixer amplifier. Whether you're playing relaxing background music during dinner service, creating an upbeat atmosphere in a bar, or making occasional announcements, this system provides a practical and easy-to-use audio solution for enhancing the customer experience.

By distributing twelve speakers throughout the venue, this system provides consistent sound coverage across dining areas, seating sections, service spaces, and covered outdoor patios without relying on a few speakers playing at excessive volume. Each S5 features a 4.5" polypropylene woofer and 0.75" silk tweeter, delivering clear vocals, balanced music reproduction, and wide 110° x 110° coverage. The compact, modern enclosures blend into a variety of restaurant interiors, while the included 180° adjustable mounting brackets and mounting plates allow flexible positioning for optimal sound distribution. The S5 speakers feature IP65-rated, UV-resistant ABS enclosures with protective metal grilles for reliable performance in indoor and outdoor commercial environments. For restaurant patios and outdoor dining areas, we recommend installing the speakers beneath a covered patio roof, awning, eave, or protective overhang whenever possible. This provides additional protection from direct precipitation and prolonged weather exposure while helping extend the life of the speakers. The MA120BT amplifier must be installed in a dry, protected indoor location with adequate ventilation.

This system operates on a 70V speaker line with selectable transformer taps that allow installers to balance sound levels throughout different listening areas. For comfortable everyday background music, we recommend setting all twelve S5 speakers to 5W at 70V, creating a combined 60W speaker load on the 120W amplifier. For locations requiring slightly higher output, such as a busy bar or louder seating section, eight speakers can be set to 5W and four to 10W for a combined 80W load. Both configurations provide amplifier headroom and allow individual speaker output levels to be adjusted based on the restaurant's layout and ambient noise. All speakers should be connected to the amplifier's 70V output using their selected 70V transformer taps. The MA120BT mixer amplifier provides convenient control over music playback with built-in Bluetooth streaming, USB and TF card playback, an FM tuner, and multiple audio inputs for external music sources. Individual input volume controls, bass and treble adjustments, and master volume control allow restaurant staff to easily manage audio throughout the day. Microphone inputs with selectable priority ducking also support announcements and paging when a compatible microphone is connected. This system includes 500 feet of 16/2 gauge non-plenum speaker wire for appropriately rated indoor wiring pathways. Outdoor cable runs require suitable outdoor-rated wire and weather-protected connections.

Key System Features

  • Complete 70V restaurant sound system designed for background music, foreground audio, and paging in restaurants, bars, cafes, and covered outdoor patios
  • Twelve Pure Resonance Audio S5 4.5" 2-way surface-mount speakers provide clear, evenly distributed music and speech throughout designated listening areas
  • IP65-rated weather-resistant speakers feature UV-protected ABS enclosures and protective metal grilles for reliable indoor and outdoor performance
  • Covered patio, awning, or roof overhang installation is recommended for outdoor speakers to provide additional protection against weather exposure
  • Wide 110° x 110° speaker coverage and included 180° adjustable mounting brackets allow flexible positioning throughout dining and seating areas
  • Selectable 70V speaker transformer taps allow flexible output levels, with all twelve speakers recommended at 5W each for a combined 60W load on the 120W amplifier
  • Alternative configuration of eight speakers at 5W and four at 10W creates an 80W total load for restaurants requiring higher output in selected areas
  • Pure Resonance Audio MA120BT 120W Bluetooth mixer amplifier features USB and TF card playback, an FM tuner, multiple audio inputs, and 70V speaker output
  • Individual input level controls, bass and treble adjustments, and master volume control provide convenient management of background music and announcements
  • Microphone priority ducking and telephone paging capabilities support commercial announcements when compatible external equipment is connected and configured
  • Includes twelve speaker mounting brackets, twelve mounting plates, an IR remote control, power cord, and 500 feet of 16/2 gauge non-plenum speaker wire

About the System Components

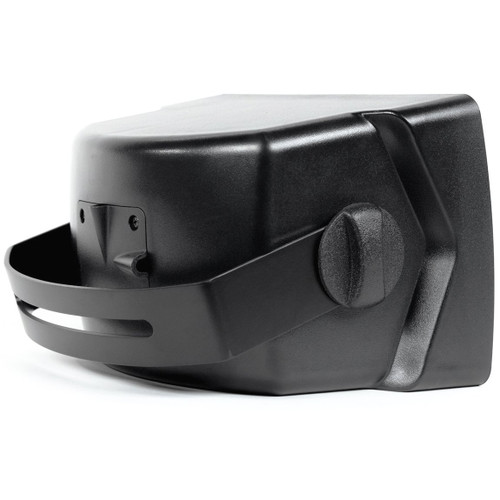

Pure Resonance Audio S5 4.5" 70V Weather-Resistant Surface-Mount Speakers

The twelve Pure Resonance Audio S5 4.5" 2-way surface-mount speakers deliver clear, balanced sound for restaurant background music, foreground audio, and paging applications. Each speaker features a 4.5" polypropylene woofer and 0.75" silk tweeter, providing a frequency response of 90 Hz - 16 kHz, 92 dB sensitivity (1W/1m), and 102 dB maximum SPL. Their wide 110° horizontal by 110° vertical coverage helps distribute music and announcements consistently throughout dining rooms, bars, cafes, and other commercial listening areas. Designed for reliable indoor and outdoor performance, the S5 features an IP65-rated, UV-resistant ABS enclosure and protective metal grille. Each speaker includes a 180° adjustable mounting bracket and mounting plate for secure installation and flexible positioning. For outdoor restaurant applications, installation beneath a covered patio roof, awning, or protective overhang is recommended to minimize direct weather exposure and promote long-term durability. The compact design and professional appearance make these speakers an excellent choice for restaurants seeking quality audio without bulky equipment. Each S5 includes a built-in 70V/100V transformer with selectable power taps and an 8Ω bypass for installation flexibility. For this 120W amplifier system, setting all twelve speakers to 5W at 70V creates a recommended 60W total load, ideal as a starting point for comfortable background music. For mixed listening environments, eight speakers can be set to 5W and four to 10W for a combined 80W load, providing additional output in busier areas. Both configurations remain within the amplifier's 120W rated output and allow installers to adjust relative speaker levels according to the restaurant's needs.

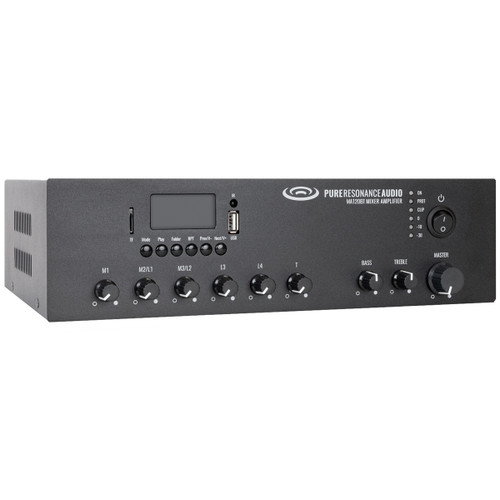

Pure Resonance Audio MA120BT 120W Bluetooth Mixer Amplifier

The Pure Resonance Audio MA120BT 7-channel commercial mixer amplifier delivers 120 watts of power for distributed background music and paging applications. Featuring built-in 70V/100V transformer technology and 4Ω, 8Ω, and 16Ω speaker output options, this compact amplifier provides flexible connectivity for commercial sound systems. Its straightforward controls and versatile audio inputs make it ideal for restaurants, bars, cafes, retail stores, and other hospitality environments requiring reliable music playback and convenient system operation. Built-in Bluetooth streaming allows restaurant staff to play music wirelessly from compatible smartphones, tablets, and computers, while USB and TF card playback, an FM tuner, and multiple microphone and line-level inputs provide additional audio source options. Individual input level controls, bass and treble adjustments, and master volume control make it easy to customize audio throughout the day. The included IR remote provides convenient operation of the built-in media player. The MA120BT also features a balanced XLR microphone input with phantom power, two switchable mic/line inputs, RCA line inputs and outputs, and a dedicated telephone input with VOX priority and Music on Hold capabilities. Selectable microphone priority ducking allows compatible paging microphones to reduce other audio source levels during announcements when properly configured. Built-in overload, short-circuit, clipping, and overheating protection helps maintain dependable operation during extended use. The amplifier should be installed in a dry, protected indoor location with adequate ventilation.

Due to the possibility of FM radio interference and the variables involved, FM radio is not recommended as the primary audio source.

Features

Pure Resonance Audio S5 4.5" 70V Weather-Resistant Surface-Mount Speakers

  • Compact 4.5" polypropylene woofer and 0.75" silk tweeter deliver clear speech reproduction and balanced full-range music
  • 90 Hz - 16 kHz frequency response, 92 dB sensitivity (1W/1m), and 102 dB maximum SPL provide efficient audio performance
  • 40W RMS power handling and wide 110° x 110° coverage deliver consistent sound dispersion for restaurant music and paging
  • IP65-rated weather-resistant construction with UV-protected ABS enclosures and metal grilles provides reliable indoor and outdoor performance
  • Installation beneath covered patios, awnings, or roof overhangs is recommended for additional protection against prolonged weather exposure
  • Built-in 70V/100V multi-tap transformer with 8Ω bypass and 4-pin Euroblock connector provides flexible commercial installation options
  • Selectable 70V transformer taps include 2.5W, 5W, 10W, 20W, and 40W, with 5W per speaker recommended for this system
  • Includes a 180° adjustable mounting bracket and mounting plate for secure installation and flexible speaker positioning

Pure Resonance Audio MA120BT 120W Commercial Mixer Amplifier with Bluetooth

  • Lightweight, compact 120W commercial mixer amplifier supports 4Ω, 8Ω, 16Ω, 70V, and 100V speaker outputs
  • 7-channel design with individual input level controls, master volume, bass, and treble adjustments provides convenient audio management
  • Built-in Bluetooth streaming, USB and TF card MP3 playback, and FM tuner with an included IR remote control
  • One balanced XLR microphone input with phantom power and two switchable mic/line inputs with unbalanced 1/4" connections
  • Two unbalanced stereo RCA line inputs provide connectivity for external audio sources, including media players and other devices
  • RCA line-level and Music on Hold (MOH) outputs provide flexible connectivity for additional commercial audio applications
  • Microphone priority ducking and dedicated telephone paging input with VOX priority support announcements when properly configured
  • Built-in clipping, overheating, overload, and short-circuit protection with status indicators helps ensure reliable operation

System Includes

  • (12) Pure Resonance Audio S5 4.5" 70V Weather-Resistant Surface-Mount Speakers
    • (12) 180° Mounting Brackets
    • (12) Mounting Plates
  • (1) Pure Resonance Audio MA120BT 7-Channel 120W Bluetooth Commercial Mixer Amplifier
    • (1) IR Remote Control
    • (1) Power Cord
  • (500') West Penn 225 16/2 Non-Plenum Audio Speaker Wire - Gray
