Inside the Design

This 70V restaurant sound system solution with eight Pure Resonance Audio S3 small surface-mount speakers and MA60BT 60W Bluetooth mixer amplifier is perfect for small restaurants, bars, cafes and coffee shops. The small but powerful Pure Resonance Audio S3 small wall mounted speakers are built-to-last and are designed for broad, even coverage with an excellent performance-to-size ratio in a small-format install speaker. The 7-channel Bluetooth mixer-amplifier is reliable and simple to operate, great for any commercial application.

Sound System Features:

• Easy to install and easy to operate 70V sound system
• Bluetooth mixer amplifier allows you to wireless stream music from any Bluetooth-Enabled device
• 60W 7-channel mixer amp also features MP3 player, FM radio, USB and SD inputs and IR remote control
• Attractive and compact size speakers fit seamlessly into any decor
• Paper cone drivers provided natural sound reproduction with clear, vivid vocals and excellent medium-high frequency sensitivity
• Integrated ball-joint allows screen tilt, pan, and rotation adjustment so your sound goes where it needs to go
• Paging capability with VOX priority and MOH (Music on Hold) feature

About the System Components

This Pro Acoustics designed sound system includes 8 Pure Resonance Audio S3 3" micro surface mount 70V loudspeakers, a Pure Resonance Audio MA60BT 7-channel 60W Bluetooth commercial mixer amplifier and 250ft of West Penn 225 16/2 non-plenum audio speaker wire.

Not sure if this is the right Restaurant Sound System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

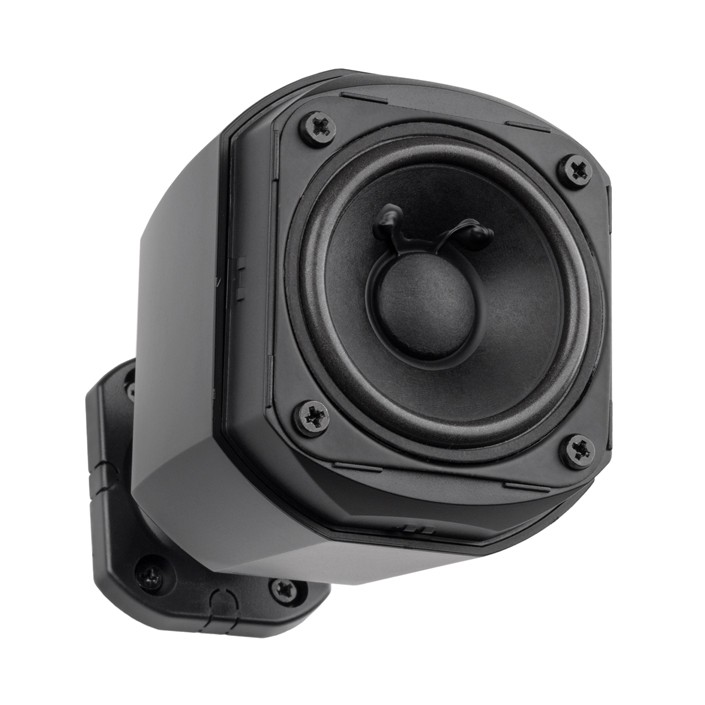

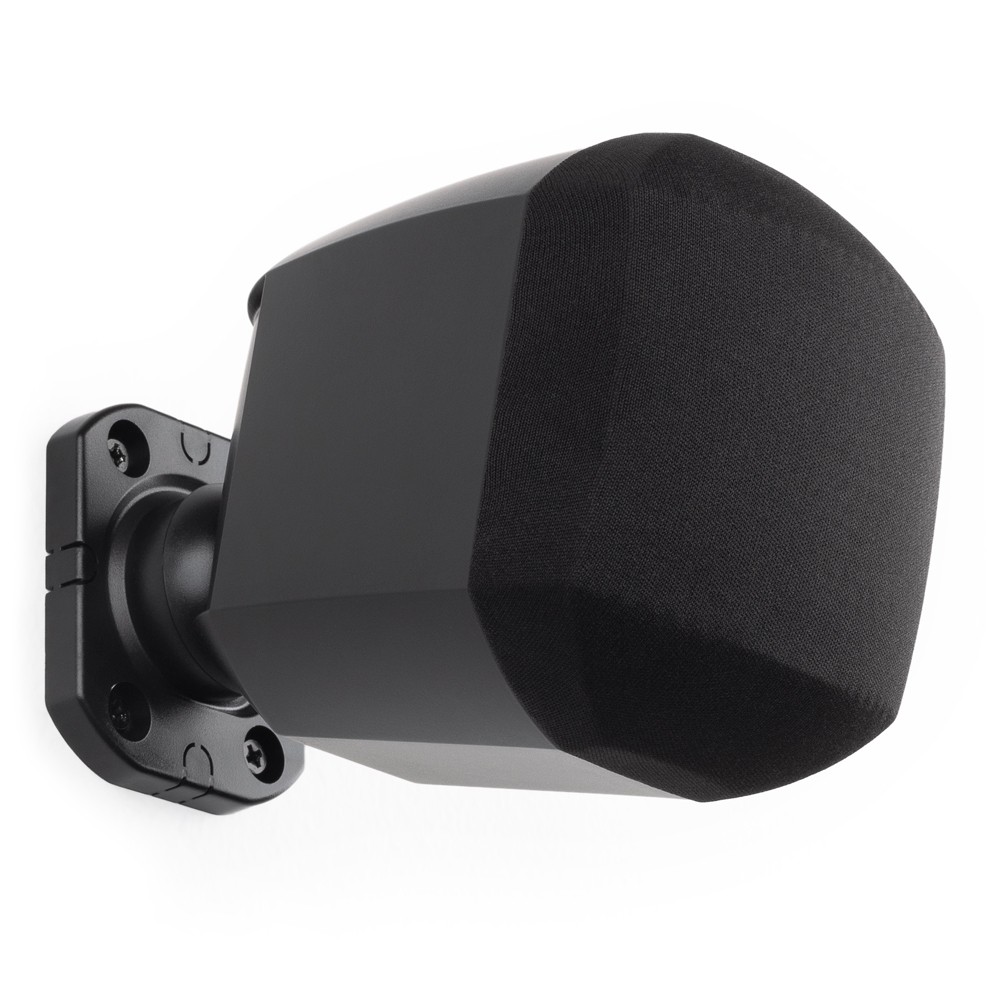

Pure Resonance Audio S3 3" Micro Surface Mount 70V Loudspeakers:

• Paper composite cone driver perfect for background music and paging providing natural sound reproduction with clear, vivid vocals and excellent medium-high frequency sensitivity

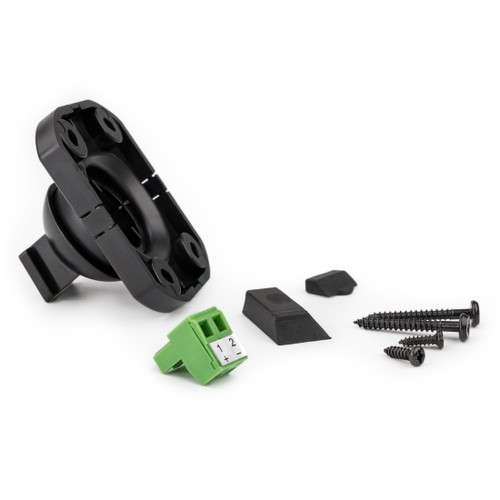

• Phoenix-style connector ensures a perfect connection
• Integrated ball-joint allows screen tilt, pan, and rotation adjustment so your sound goes where it needs to go
• Rugged ABS enclosure delivers long-lasting performance and durability
• Compact size allows the speaker to seamlessly fit into any space

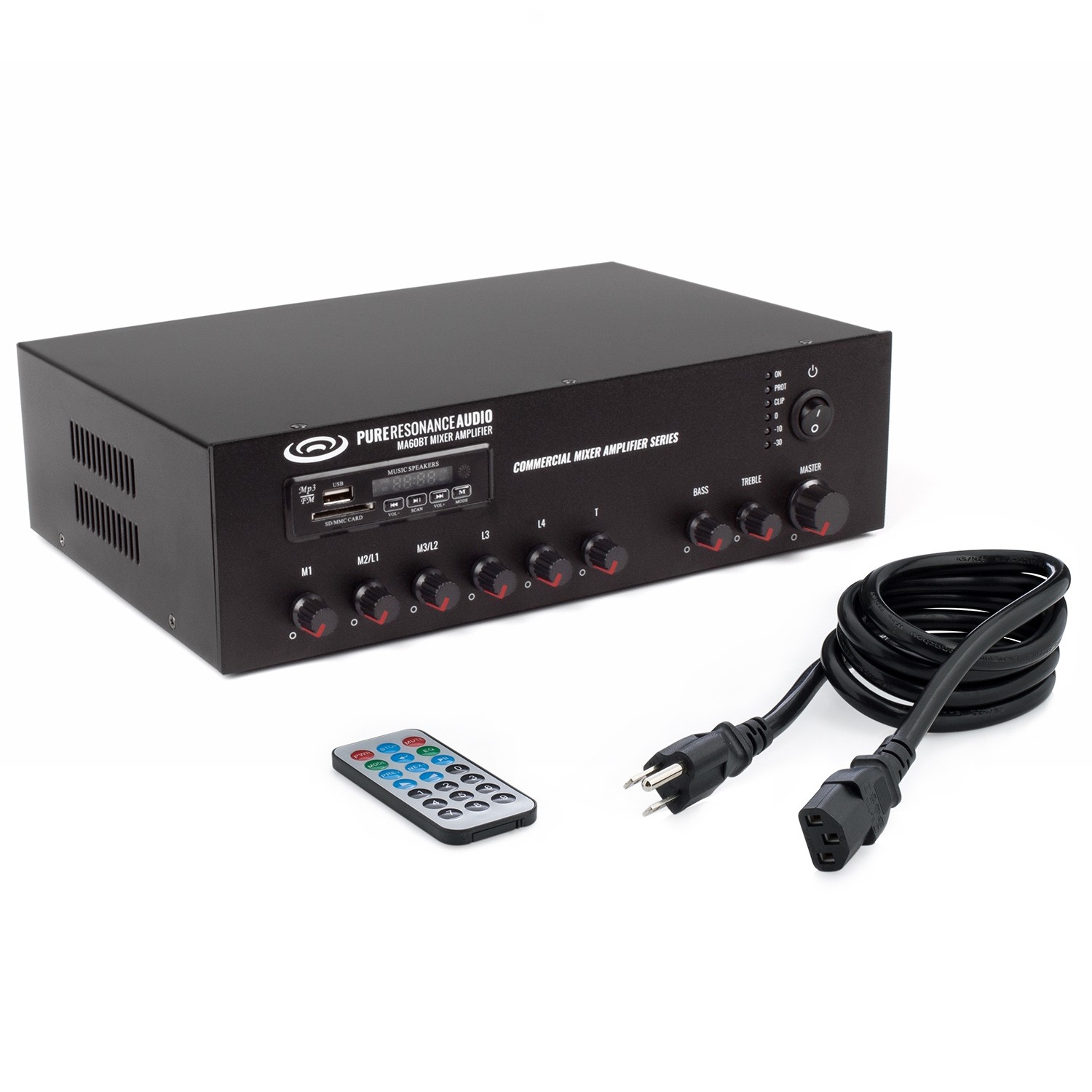

Pure Resonance Audio MA60BT 7-Channel 60W Bluetooth Commercial Mixer Amplifier:

• 7-channel powered mixer amplifier (6 inputs + Bluetooth Media Player)
• Volume Controls for Mic 1-3, Line 1-2, MP3/FM Radio, Bass, Treble and Master

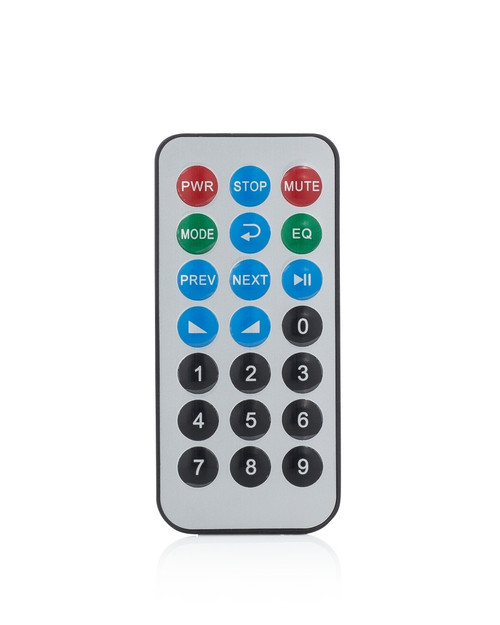

• MP3 Player, FM Radio & Bluetooth (with IR remote control)
• USB and SD inputs on front panel
• Power output rating 60 Watts
• Built-in 70V/100V transformer

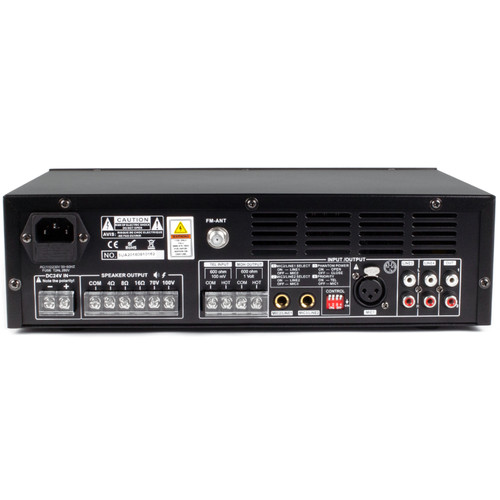

• Speaker outputs: 70V, 100V, 4, 8 and 16 Ohms
• Mic 1 of balanced XLR input (with phantom power)
• Mic 2-3 microphone or line switchable
• Line 1-2 input of RCA inputs
• DIP switches for Mic/Line, phantom power and microphone priority
• Unbalanced 6.3 mm phone jack input
• One RCA line output (0.775 line level 0 dBV)
• Telephone input (600 Ohm/100mV) with VOX priority and MOH (Music on Hold) (600 Ohm 1 Volt)
• LED indicators for power clip, protect signal, Mic 1-3, Line 1-2 and telephone inputs
• Short-circuit, clip, overload and high temp protection
• 24 VDC Emergency backup supply
• 115V 60 Hz & 24V DC both operation system

• (4 Pairs) Pure Resonance Audio S3 3" Micro Surface Mount 70V Loudspeakers
• (1) Pure Resonance Audio MA60BT 7-Channel 60W Bluetooth Commercial Mixer Amplifier

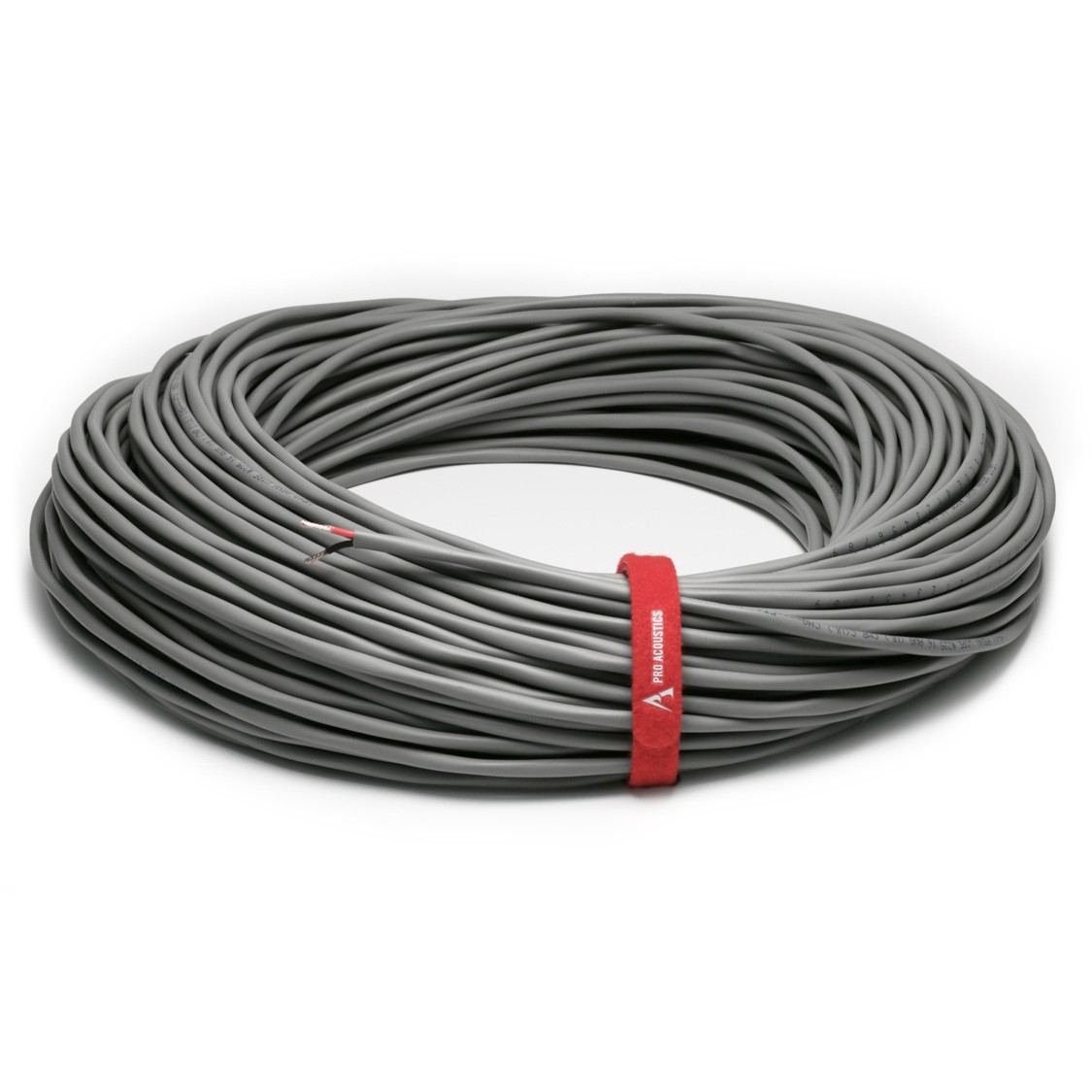

• (250') West Penn 225 16/2 Non-Plenum Audio Speaker Wire
